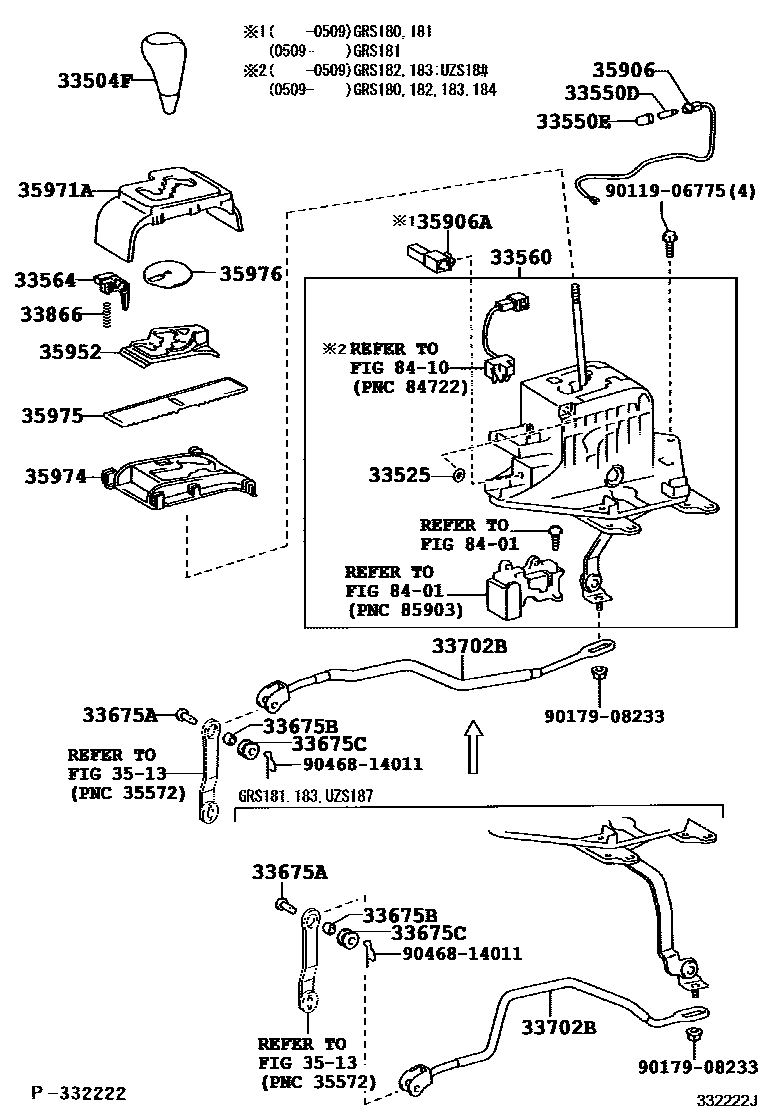

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30310-C7iGRS180,181,184..ATH200704-200802

BLACK/BLUE GRAY,TRIM1#,28

main33504-30310-C8supersedes 33504-22170-C0iGRS180,181..ROYEX; GRS180,182,183..ROY,ROYG200312-200509

main33504-30310-E5supersedes 33504-22170-E0iGRS180,181..ROYEX; GRS180,182,183..ROY,ROYG200312-200509

main33504-50050-C5iUZS18#..C; UZS186..A200606

BLACK,TRIM2#; BLACK,TRIM25

main33504-50050-E6iUZS18#200406-200606

ORCHID BROWN,TRIM0#

main33504-50050-E7iUZS18#200606

ORCHID BROWN,TRIM0#

main33504-22170-C0iGRS180,181..ROYEX; GRS183200312-200509

main33504-22170-E0iGRS180,181..ROYEX; GRS183200312-200509

main33504-30310-20iGRS180,181,184..ATH200704-200802

main33504-30310-L1iGRS180,182,183..ROY; GRS181..ROYEX200704-200802

main33504-30370iGRS181..ROYEX;GRS180,182,183..ROY200603-200703

main33504-50050-C6supersedes 33504-50050-C5iUZS18#..C200606

33525SUPPORT, SHIFT LEVER

main33525-50020iGRS182,UZS186200312-200606

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iUZS18#200312-200606

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iGRS18#200312-200509

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-30040iGRS180..ATH,ROY200312-200509

main33560-30050iGRS182200312-200509

main33560-30060iUZS187200312-200606

main33560-30070iGRS180..ROY; GRS180..ROYEX200509-200802

main33560-30080iGRS180..ROY; GRS180..ROYEX200312-200509

main33560-30130supersedes 33560-30140iGRS181..ATH; GRS181..ROYEX200408-200509

main33560-30090supersedes 33560-30060iGRS183200509-200802

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-30140iGRS18#200312-200509

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iGRS18#200509-200802

main33726-35010iGRS18#,UZS18#200312-200408

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iUZS18#200606-200812

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGRS180,182200509-200802

main33702-30580iGRS180,182200312-200509

main33702-30600iGRS181,183200312-200509

main33702-30620iUZS186200606-200812

main33702-30630iUZS187200406-200606

33866SPRING, SHIFT LOCK RELEASE

main33866-50010iGRS18#200312-200509

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30140iGRS18#200312-200509

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12364iGRS180,181200312-200509

35952LENS, POSITION INDICATOR

main35952-30090iGRS180,181200312-200509

main35952-30100iUZS18#200312-200606

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30430iGRS181200509-200802

main35971-30440iGRS182,183200312-200509

main35971-30470iUZS18#200406-200606

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30130iUZS18#200606

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-50030iGRS18#200312-200509

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-50020iGRS18#200312-200509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

24 parts on this diagram · 1 diagram in section
