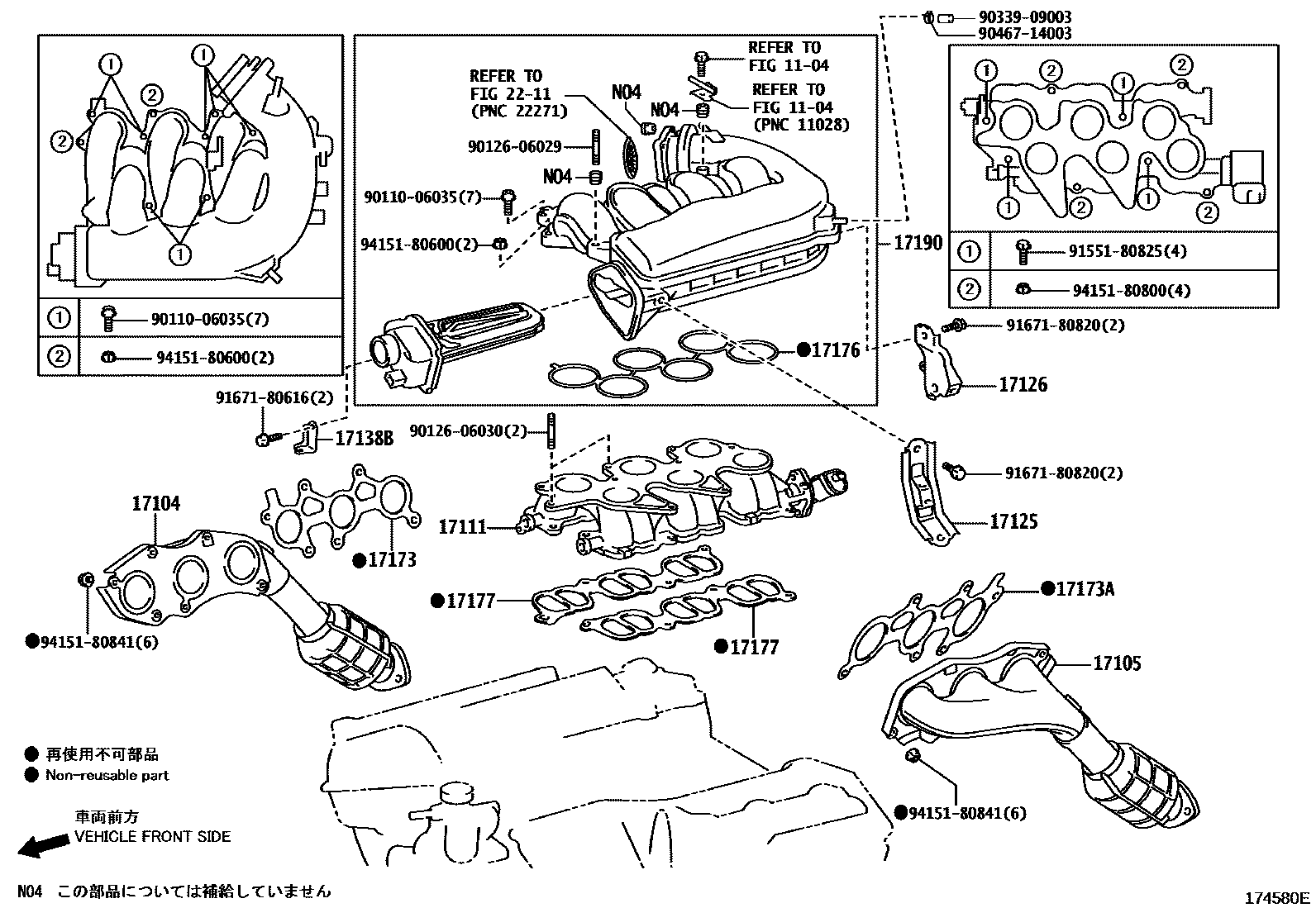

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-50160i3UZFE..UZS186200606

main17104-50190i3UZFE..UZS187200406-200606

main17140-31030i3GRFSE,4GRFSE..GRS180,182200312-200509

main17140-31040i4GRFSE..GRS181200509-200802

main17140-31120i2GRFSE..GRS184200509-200802

main17140-31190i3GRFSE..GRS183200505-200509

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-50160i3UZFE..UZS186200606

main17105-50180i3UZFE..UZS187200606

main17150-31030i3GRFSE,4GRFSE..GRS180,182200509-200802

main17150-31040i4GRFSE..GRS181200509-200802

main17150-31120i2GRFSE..GRS184200509-200802

main17150-31190i3GRFSE..GRS183200505-200509

17111MANIFOLD, INTAKE

main17101-50010i3UZFE..UZS18#200606

main17111-31170i2GRFSE..GRS184200509-200802

main17120-31010i3GRFSE,4GRFSE..GRS18#200312-200509

main17120-31020i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

17125STAY, SURGE TANK, NO.1

main17125-31020i3GRFSE,4GRFSE..GRS18#200312-200509

17126STAY, SURGE TANK, NO.2

main17126-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main17126-31050i2GRFSE..GRS184200509-200802

17138BSTAY, INTAKE MANIFOLD

main17138-31010i3GRFSE,4GRFSE..GRS18#200312-200509

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main17173-50021i3UZFE..UZS18#200606

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main17173-50021i3UZFE..UZS18#200406-200606

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main17176-31050×3i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

main17176-31060i2GRFSE..GRS184200509-200802

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50020×2i3UZFE..UZS18#200606

main17177-31020×2i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

main17177-31060×2i2GRFSE..GRS184200509-200802

17190TANK ASSY, INTAKE AIR SURGE

main17190-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main17190-31040i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

main17190-31100i2GRFSE..GRS184200509-200802

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606029

main90126-06029

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167180616

main91671-80616

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

24 parts on this diagram · 5 diagrams in section
