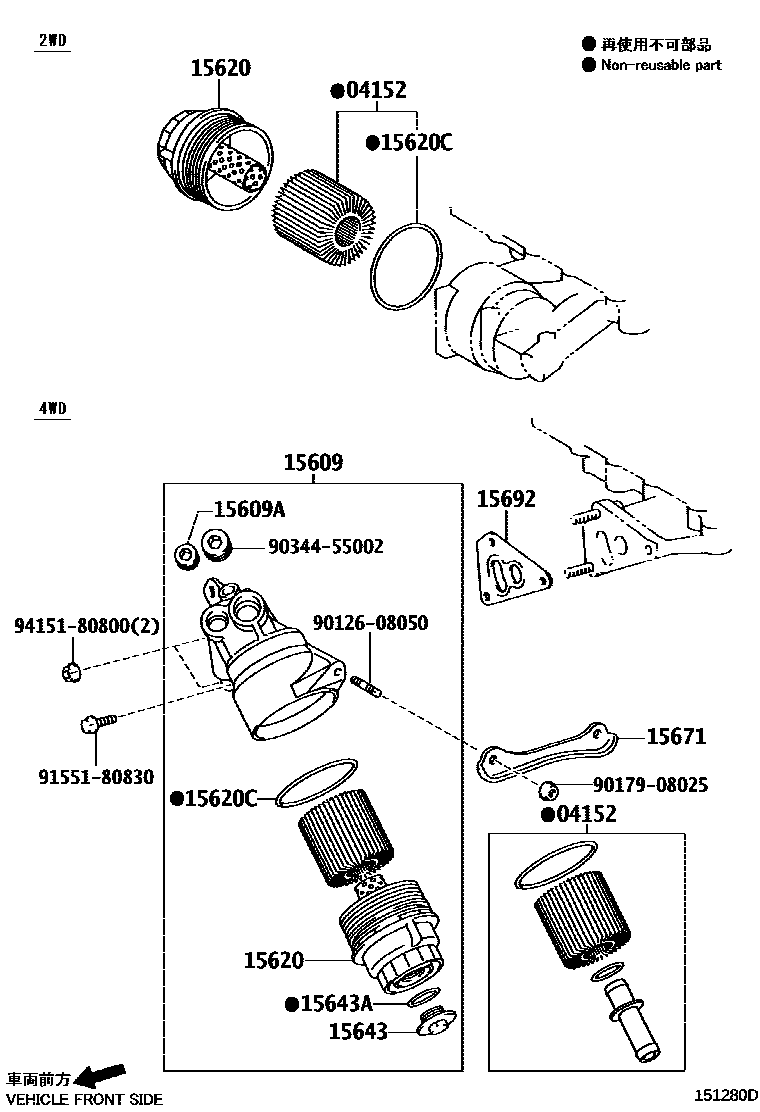

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31020i3GRFSE,4GRFSE..GRS180,182200312-200412

sub04152-31080

main04152-31060i3GRFSE,4GRFSE..GRS181,183200312-200610

sub04152-38010

main04152-31080i3GRFSE,4GRFSE..GRS180,182200412-200802

main04152-38010i3GRFSE,4GRFSE..GRS181,183200610-200802

15609BRACKET SUB-ASSY, OIL FILTER

main15609-50140i3UZFE..UZS18#200406-200606

main15670-31020i3GRFSE,4GRFSE..GRS181,183200312-200802

15609APLUG, TAPER SCREW(FOR OIL FILTER BRACKET)

main90344-54006i3GRFSE,4GRFSE..GRS181,183200312-200802

15620CAP ASSY, OIL FILTER

main15620-31040i3GRFSE,4GRFSE..GRS180,182200312-200802

main15620-31050i3GRFSE,4GRFSE..GRS181,183200312-200802

15620CGASKET(FOR OIL FILTER CAP)

main90301-79004i3GRFSE,4GRFSE..GRS18#200312-200412

sub90301-79005

main90301-79005i3GRFSE,4GRFSE..GRS18#200412-200610

sub90301-79006

main90301-79006i2GRFSE,3GRFSE,4GRFSE..GRS18#200610-200802

15643PLUG, OIL FILTER DRAIN

main15643-31040i3GRFSE,4GRFSE..GRS181,183200312-200707

sub15643-31050

main15643-31050i3GRFSE,4GRFSE..GRS181,183200707-200802

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-27012i3GRFSE,4GRFSE..GRS181,183200312-200412

main96723-35028i3GRFSE,4GRFSE..GRS181,183200412-200802

15671BRACKET, OIL FILTER

main15671-31020i3GRFSE,4GRFSE..GRS181,183200312-200802

15692GASKET, OIL FILTER BRACKET

main15692-31020i3GRFSE,4GRFSE..GRS181,183200312-200802

main15692-50020i3UZFE..UZS18#200406-200606

9012608050

main90126-08050

9017908025

main90179-08025

9034455002

main90344-55002

9155180830

main91551-80830

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
