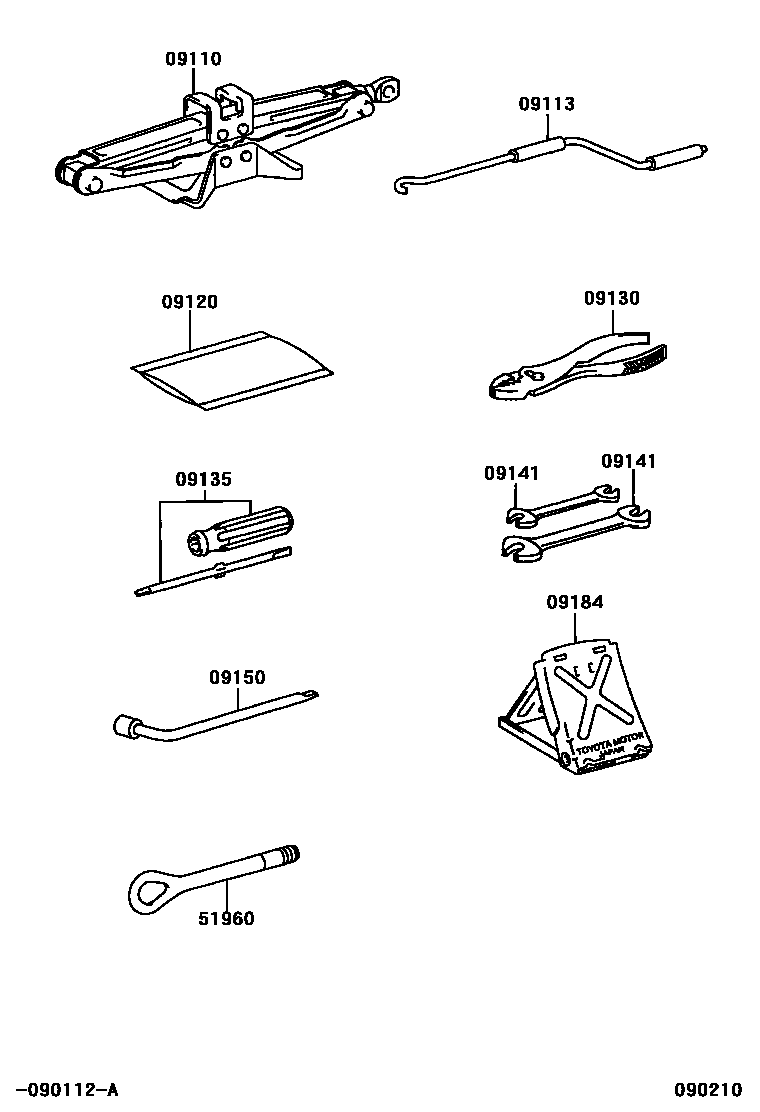

STANDARD TOOL

09110JACK ASSY

main09111-50051iGRS180,181..5FC;GRS182,183,UZS18#200312-200802

sub09111-76011

09113HANDLE, JACK

main09113-22020iUZS18#200312-200802

09120BAG, TOOL

main09120-28040

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iUZS18#200312-200802

09184STOPPER, WHEEL

main09184-00010

51960HOOK ASSY, FRONT

main51961-48030iGRS180,181..5FC;GRS182,183,UZS18#200406-200606

sub51961-44010

main51961-50030iGRS18#200312-200802

9 parts on this diagram · 1 diagram in section
