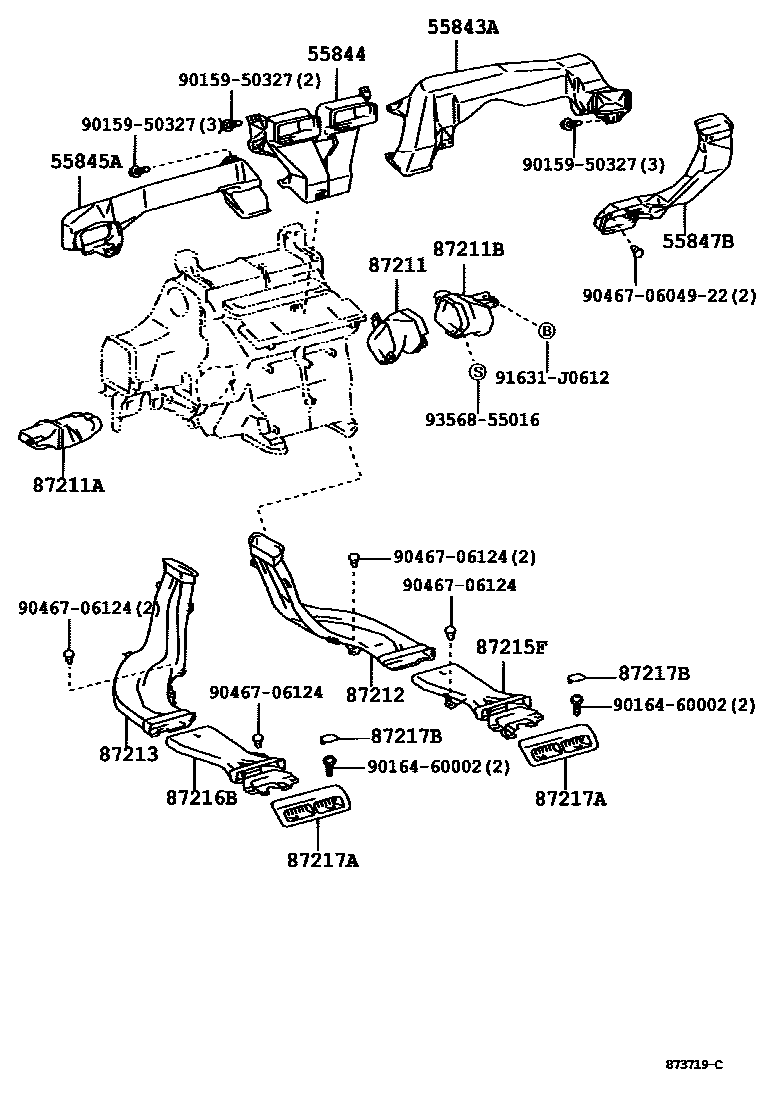

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���� ������ 0002 1���� ������ 0003 1�� ������ 0004 1���

55843ADUCT, HEATER TO REGISTER, NO.1

main55843-30230iGS171,JKS175,JZS171,173,175,179200108

main55843-30240iJZS177,UZS17#199909-200108

55844DUCT, HEATER TO REGISTER, NO.2

main55844-30210iGS171,JZS17#,UZS17#199909-200108

55845ADUCT, HEATER TO REGISTER, NO.3

main55845-30210iGS171,JZS17#,UZS17#199909-200108

55847BDUCT, HEATER TO REGISTER, NO.5

main55847-30160iGS171,JZS17#,UZS17#199909-200108

87211DUCT, AIR, NO.1

main87211-30230iGS171,JZS17#,UZS17#199909-200108

87211ADUCT, AIR, NO.2

main87211-30240iGS171,JZS17#,UZS17#199909-200108

87211BDUCT, AIR, NO.3

main87211-30250iGS171,JZS17#,UZS17#199909-200108

87212DUCT, AIR, REAR NO.1

main87212-30400iJZS177,UZS171,175200108-200406

main87212-30410iJZS171,173,175..WG..(D4,TWC)200108

main87212-30420iUZS173200108-200406

87213DUCT, AIR, REAR NO.2

main87213-30330iJZS177,UZS171,175199909-200108

main87213-30340iGS171,JZS171,175199909-200108

main87213-30350iJZS173,179199909-200108

main87213-30360iUZS173199909-200108

87215FDUCT, AIR, REAR NO.3

main87215-30270iJZS177,UZS17#200108-200406

main87215-51010iGS171,JZS171,173,175,179199909-200108

87216BDUCT, AIR, REAR NO.4

main87216-30260iJZS177,UZS17#199909-200108

main87216-51010iGS171,JZS171,173,175,179199909-200108

87217ADUCT, AIR, REAR NO.6

main87217-50030-A2×2iJZS177,UZS17#199909-200108

IVORY,TRIM0#

main87217-50030-B3×2iJZS177,UZS17#200108-200406

MD.CHARCOAL,TRIM1#

main87217-50030-C0×2iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

87217BPLUG, AIR DUCT

main90950-01693-22×4iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main90950-01693-A2×4iJZS177,UZS17#199909-200108

IVORY,TRIM0#

main90950-01693-B5×4iJZS177,UZS17#199909-200108

MD.CHARCOAL,TRIM1#

9015950327

main90159-50327

9016460002

main90164-60002

904670604922

main90467-0604922

9046706124

main90467-06124

91631J0612

main91631-J0612

9356855016

main93568-55016

19 parts on this diagram · 4 diagrams in section
