HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1�� 0006 1��--��(�-� �����) 0007 1�� 0008 1��--��(�-� �����)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30050iJKS175,JZS171,173,175,179200108

main87050-30060iJZS177,UZS17#199909-200108

main87050-30070iGS171200108-200312

main87050-30080iJZS177,UZS17#200108-200406

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30410iGS171,JZS17#,UZS17#199909-200108

main87103-30440iGS171,JKS175,JZS17#,UZS17#200108

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30340iGS171,JZS17#,UZS17#199909-200108

main87106-30341iGS171,JKS175,JZS17#,UZS17#200308

main87106-30350iGS171,JKS175,JZS17#,UZS17#200108-200308

main87106-30351iGS171,JKS175,JZS17#,UZS17#200308

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30361iGS171,JKS175,JZS17#,UZS17#200108

87106LSERVO SUB-ASSY, DAMPER

main87106-30380iGS171,JKS175,JZS17#,UZS17#200108

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30510iJZS177,UZS17#200108-200406

main87107-30540iGS171,JZS171,173,175,179199909-200108

87130DBLOWER ASSY

main87130-30710iGS171,JZS171,173,175,179199909-200108

main87130-30720iJZS177,UZS17#199909-200108

main87130-30730iJZS177,UZS17#199909-200108

main87130-30760iGS171,JKS175,JZS171,173,175,179200108

main87130-30770iJZS177,UZS17#200108-200406

87139CFILTER, CLEAN AIR

main87139-48030iGS171,JZS17#,UZS17#199909-200108

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A020iGS171,JZS17#,UZS17#199909-200108

main88501-3A050iGS171,JKS175,JZS17#,UZS17#200108

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iGS171,JKS175,JZS17#,UZS17#200108

88515VALVE, COOLER EXPANSION

main88515-22260iJZS17#,UZS17#200405

main88515-30690iJZS17#,UZS17#199909-200108

main88515-48040iGS171200108-200210

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30810iJZS177199909-200108

main88539-30830iUZS17#200108-200406

main88539-30840iJZS173,179199909-200108

main88539-30870iGS171,JKS175,JZS171,175200108

main88539-51010iGS171,JZS171,175199909-200108

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-3A060iGS171,JKS175,JZS17#,UZS17#200108-200210

main88608-3A061iGS171,JKS175,JZS17#,UZS17#200210

88625THERMISTOR, COOLER, NO.1

main88625-3A120iGS171,JKS175,JZS17#,UZS17#200108-200210

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A140iJZS177,UZS17#199909-200108

main88710-3A220iGS171,JZS171,173,175,179199909-200108

88891SCOVER, COOLER, NO.1

main88891-30680iGS171,JZS17#,UZS17#199909-200108

8889735030VALVE, COOLER MAGNET

main88897-35030

8889930870COVER, EVAPORATOR

main88899-30870

888993A010COVER, EVAPORATOR

main88899-3A010

9009914120

main90099-14120

9009914121

main90099-14121

9011906116

main90119-06116

9011906833

main90119-06833

9017906282

main90179-06282

9048031007

main90480-31007

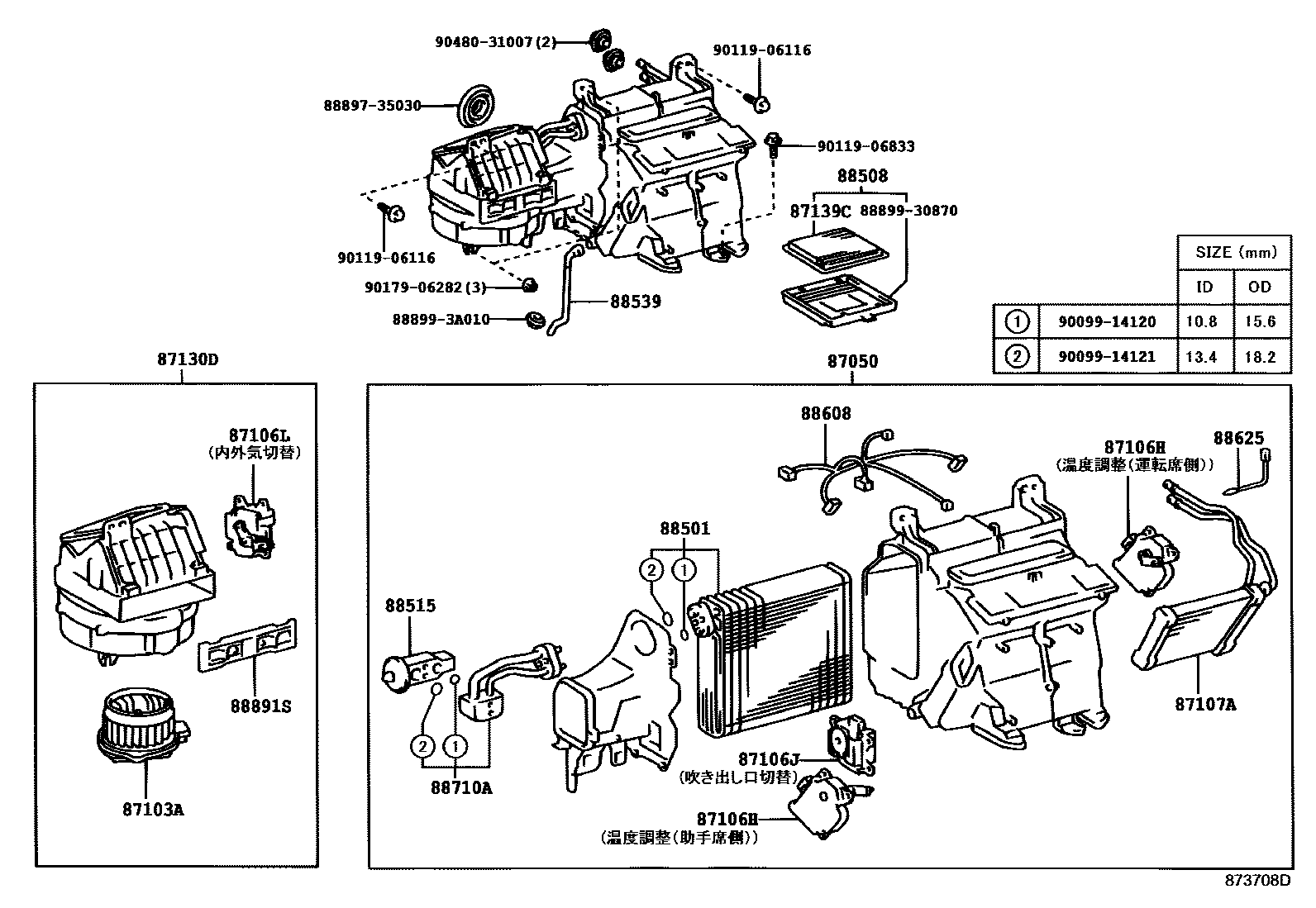

25 parts on this diagram · 8 diagrams in section
