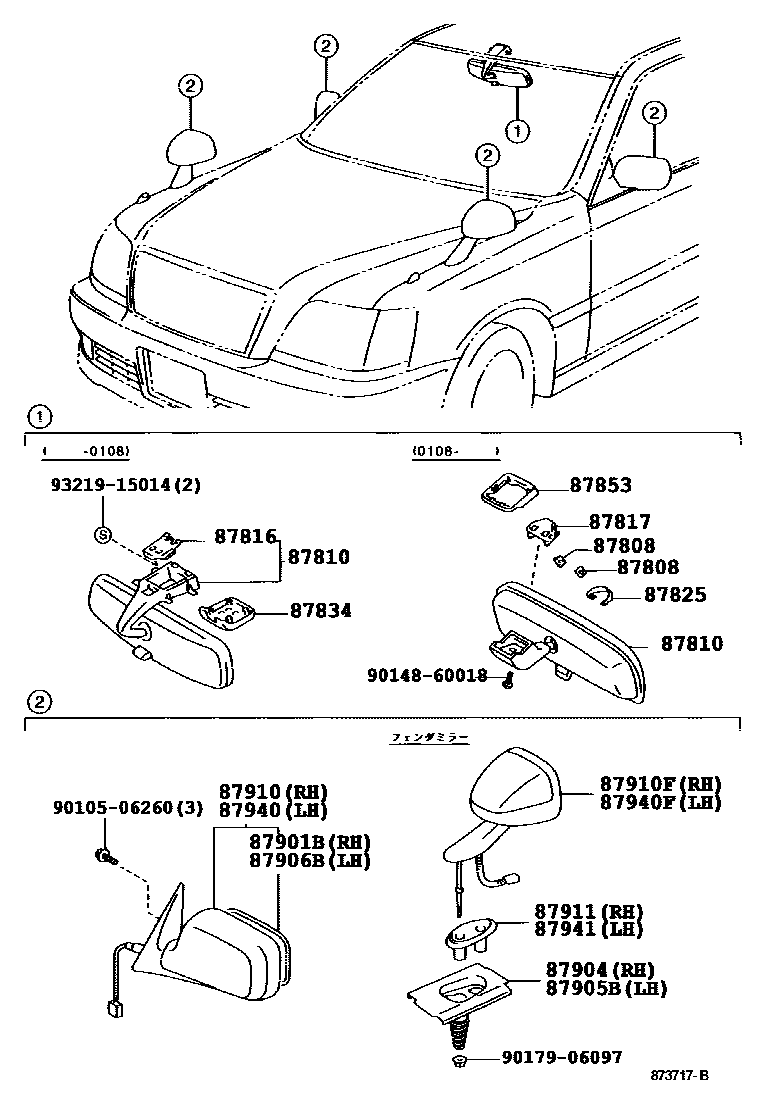

MIRROR

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2iGS171,JKS175,JZS17#,UZS17#200108

87810MIRROR ASSY, INNER REAR VIEW

main87810-30260-A2iGS171,JZS17#,UZS17#199909-200108

IVORY,TRIM0#

main87810-30260-B4iGS171,JZS17#,UZS17#199909-200108

MD.CHARCOAL,TRIM1#

main87810-30310-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main87810-30310-B0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200609

MD.CHARCOAL,TRIM2#

main87810-30311-B0iJZS17#200610-200706

MD.CHARCOAL,TRIM2#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iGS171,JZS17#,UZS17#199909-200108

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010iGS171,JKS175,JZS17#,UZS17#200108

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010iGS171,JKS175,JZS17#,UZS17#200108

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-30120-A2iGS171,JZS17#,UZS17#199909-200108

IVORY,TRIM0#

main87834-30120-B4iGS171,JZS17#,UZS17#199909-200108

MD.CHARCOAL,TRIM1#

87853BASE, INNER REAR VIEW MIRROR

main87853-24020-A1iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main87853-24020-B1iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-3A260iGS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG199909-200108

main87931-3A270iJZS171,173,175,177,UZS17#..A,ATH,ATHG,ATHV,C199909-200108

main87931-50260iGS171;JZS171..ATHE200004-200108

87904SPRING SUB-ASSY, OUTER MIRROR, RH

main87904-30250iGS171,JZS171,173,175,179199909-200108

87905BSPRING SUB-ASSY, OUTER MIRROR, LH

main87905-30190iGS171,JKS175,JZS171,173,175,179200108-200312

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-3A170iGS171,JKS175,JZS171,173,175,179200108-200312

main87961-3A180iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108

main87961-50250iGS171;JZS171..ATHE200004-200108

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-3A250-A0iGS171200004-200108

main87910-3A250-A1iGS171;JZS171..ATHE200004-200108

main87910-3A250-B0iGS171;JZS171..ATHE200004-200108

main87910-3A250-C0iGS171200004-200108

main87910-3A250-D0iGS171200004-200108

main87910-3A250-D1iJZS171..ATHE200008-200108

main87910-3A250-G0iGS171;JZS171..ATHE200004-200108

main87910-3A250-J0iGS171200004-200108

main87910-3A250-J1iGS171;JZS171..ATHE200004-200108

main87910-3A260-A0iGS171200004-200108

main87910-3A260-A1iGS171,JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX,ROYG; JZS177,UZS17#199909-200108

main87910-3A260-A2iGS171,JZS171,173..ROYEX200104-200107

main87910-3A260-B0iGS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG199909-200108

main87910-3A260-C0iGS171,JZS177,UZS17#; JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

main87910-3A260-D0iJZS171,173,175,179..SED..(ROY,ROYEX,ROYG); JZS171,173..SED..(ATH,ATHV);GS171,JZS175,177,UZS17#..SED..(A,ATHG,C,ROYEX)199909-200108

main87910-3A260-D1iJZS171,173,175..WG..(ATH,ATHG,ATHV,ROY)199912-200108

main87910-3A260-G0iGS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG199909-200108

main87910-3A260-J0iJZS171,173,175,179..SED..(ROY,ROYEX,ROYG); JZS171,173..SED..(ATH,ATHV);GS171,JZS175..SED..(ATHG,ROYEX); JZS177,UZS17#;JZS171,173,175..WG..(ATH,ATHG,ATHV,ROY)199909-200108

main87910-3A260-J1iJZS171..ATHE200008-200108

main87910-3A270-A0iJZS171,173,175..ATH,ATHG,ATHV; JZS177,UZS17#199909-200108

main87910-3A270-A1iJZS171,173..ATH,ATHV200008-200107

main87910-3A270-B0iJZS171,173,175,177,UZS17#..A,ATH,ATHG,ATHV,C199909-200108

main87910-3A270-C0iJZS171,173..ATH,ATHV200008-200107

main87910-3A270-D0iJZS171,173,175,177,UZS17#..SED..(A,ATH,ATHG,ATHV,C)199909-200108

main87910-3A270-D1iJZS171,173,175..WG..(ATH,ATHG,ATHV)199912-200108

main87910-3A270-G0iJZS171,173,175,177,UZS17#..A,ATH,ATHG,ATHV,C199909-200108

main87910-3A270-J0iJZS171,173,175..SED..(ATH,ATHG,ATHV); JZS177,UZS17#;JZS171,173,175..WG..(ATH,ATHG,ATHV)199909-200108

main87910-3A270-J1iJZS171,173,175..ATH,ATHG,ATHV199909-200108

main87910-3A350-A0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main87910-3A350-A1iJZS177,UZS17#200108-200205

main87910-3A350-A2iJKS175,JZS171,175,179..ROY200212-200312

PREMIUM *(R),WHITE PEARL CS.SHINE,2HF

main87910-3A350-B0iJZS177,UZS17#200108-200205

main87910-3A350-C0iJZS177,UZS17#200108-200205

main87910-3A350-D0iGS171,JZS171,173,175..WG200108-200210

main87910-3A350-D1iGS171,JZS171,173,175..WG200210-200312

main87910-3A350-G0iJZS177,UZS17#200108-200205

main87910-3A350-G1iGS171,JKS175,JZS171,173,175,179200108-200312

main87910-3A350-J0iJZS177,UZS17#200108-200205

main87910-3A360-A0iJZS177,UZS17#200108-200406

main87910-3A360-B0iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108-200706

main87910-3A360-B1iJZS17#200512-200706

main87910-3A360-B2iJZS17#200512-200706

main87910-3A360-C0iJZS177,UZS17#200108-200406

main87910-3A360-D0iGS171,JZS171,173,175..WG200108-200210

main87910-3A360-D1iJZS177,UZS17#;GS171,JZS171,173,175..WG200108-200706

main87910-3A360-D2iJZS171,173,175200312-200512

main87910-3A360-D3iJZS17#200512-200706

main87910-3A360-G0iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108-200706

main87910-3A360-G1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main87910-3A360-J0iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108-200706

main87910-3A360-J1iJZS171,173,175200312-200512

main87910-3A360-J2iJZS17#200512-200706

87910FMIRROR ASSY, FENDER, RH

main87901-30190iGS171,JZS171,173,175,179199909-200108

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-30250iGS171,JKS175,JZS171,173,175,179200108-200312

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-3A160-A0iGS171200004-200108

SUPER WHITE 2,040

main87940-3A160-A1iGS171;JZS171..ATHE200004-200108

WHITE PEARL CS.,062 ,2FQ

main87940-3A160-B0iGS171;JZS171..ATHE200004-200108

SILVER ME.,1C0

main87940-3A160-C0iGS171200004-200108

BLACK,202

main87940-3A160-D0iGS171200004-200108

ROSE RED MC.,3M9

main87940-3A160-D1iJZS171..ATHE200008-200108

RED MC.,3N1

main87940-3A160-G0iGS171;JZS171..ATHE200004-200108

BLACKISH GREEN MC.CC,6R5

main87940-3A160-J0iGS171200004-200108

DK.BLUE MC.,2FR ,8L4

main87940-3A160-J1iGS171;JZS171..ATHE200004-200108

GRAYISH BLUE ME.,8N6

main87940-3A170-A0iJZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

main87940-3A170-A1iGS171,JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX,ROYG; JZS177,UZS17#199909-200108

main87940-3A170-A2iGS171,JZS171,173..ROYEX200104-200107

main87940-3A170-B0iJZS171..ATHE200008-200108

main87940-3A170-C0iGS171,JZS177,UZS17#; JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

main87940-3A170-D0iJZS171,173,175,179..SED..(ROY,ROYEX,ROYG); JZS171,173..SED..(ATH,ATHV);GS171,JZS175,177,UZS17#..SED..(A,ATHG,C,ROYEX)199909-200108

main87940-3A170-D1iJZS171,173,175..WG..(ATH,ATHG,ATHV,ROY)199912-200108

main87940-3A170-G0iGS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG199909-200108

main87940-3A170-J0iJZS171,173,175,179..SED..(ROY,ROYEX,ROYG); JZS171,173..SED..(ATH,ATHV);GS171,JZS175..SED..(ATHG,ROYEX); JZS177,UZS17#;JZS171,173,175..WG..(ATH,ATHG,ATHV,ROY)199909-200108

main87940-3A170-J1iGS171,JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX,ROYG199909-200108

main87940-3A180-A0iJZS171,173,175..ATH,ATHG,ATHV; JZS177,UZS17#199909-200108

main87940-3A180-A1iJZS171,173..ATH,ATHV200008-200107

main87940-3A180-B0iJZS171,173,175,177,UZS17#..A,ATH,ATHG,ATHV,C199909-200108

main87940-3A180-C0iJZS177,UZS17#199909-200108

main87940-3A180-D0iJZS171,173,175,177,UZS17#..SED..(A,ATH,ATHG,ATHV,C)199909-200108

main87940-3A180-D1iJZS171,173,175..WG..(ATH,ATHG,ATHV)199912-200108

main87940-3A180-G0iJZS171,173,175,177,UZS17#..A,ATH,ATHG,ATHV,C199909-200108

main87940-3A180-J0iJZS171,173,175..SED..(ATH,ATHG,ATHV); JZS177,UZS17#;JZS171,173,175..WG..(ATH,ATHG,ATHV)199909-200108

main87940-3A180-J1iJZS171,173,175..ATH,ATHG,ATHV199909-200108

main87940-3A250-A0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main87940-3A250-A1iGS171,JKS175,JZS171,173,175,179200108-200312

main87940-3A250-A2iGS171,JZS171,173..ROYEX200304-200312

main87940-3A250-B0iGS171,JKS175,JZS171,173,175,179200108-200312

main87940-3A250-C0iGS171,JKS175,JZS171,173,175,179200108-200312

main87940-3A250-D0iGS171,JZS171,173,175..WG200108-200210

main87940-3A250-D1iGS171,JZS171,173,175..WG200210-200312

main87940-3A250-G0iGS171,JKS175,JZS171,173,175,179200108-200312

main87940-3A250-G1iGS171,JKS175,JZS171,173,175,179200108-200312

main87940-3A250-J0iGS171,JKS175,JZS171,173,175,179200108-200312

main87940-3A260-A0iJZS177,UZS17#200108-200406

main87940-3A260-B0iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108-200706

main87940-3A260-B1iJZS17#200512-200706

main87940-3A260-B2iJZS17#200512-200706

main87940-3A260-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main87940-3A260-D0iGS171,JZS171,173,175..WG200108-200210

main87940-3A260-D1iJZS177,UZS17#;GS171,JZS171,173,175..WG200108-200706

main87940-3A260-D2iJZS171,173,175200312-200512

main87940-3A260-D3iJZS17#200512-200706

main87940-3A260-G0iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108-200706

main87940-3A260-G1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main87940-3A260-J0iGS171,JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C200108-200706

main87940-3A260-J1iJZS171,173,175200312-200512

main87940-3A260-J2iJZS17#200512-200706

87940FMIRROR ASSY, FENDER, LH

main87906-30250iGS171,JZS171,173,175,179199909-200108

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-30220iGS171,JZS171,173,175,179199909-200108

9010506260

main90105-06260

9014860018

main90148-60018

9017906097

main90179-06097

9321915014

main93219-15014

21 parts on this diagram · 1 diagram in section
