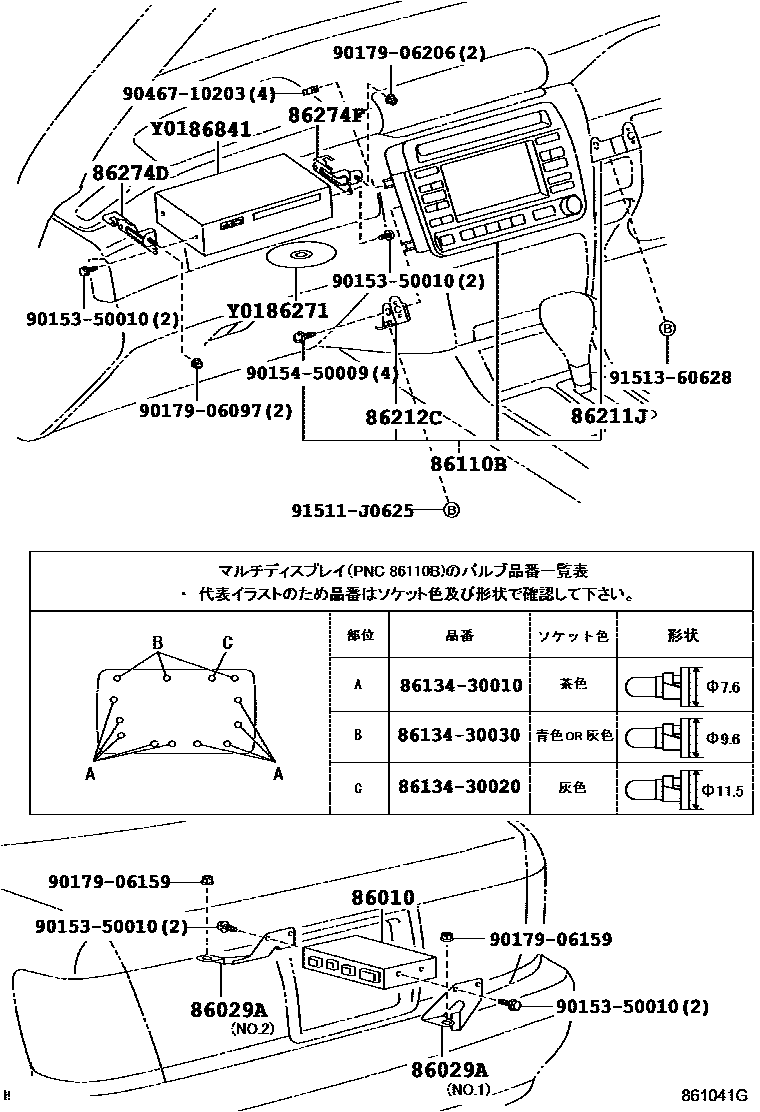

NAVIGATION & FRONT MONITOR DISPLAY

86010TUNER ASSY, TELEVISION

main86010-30110iGS171,JZS17#,UZS17#199909-200108

main86010-51040iGS171,JKS175,JZS17#,UZS17#200108-200208

main86016-50010iJZS177,UZS17#200208-200406

86029ABRACKET SET, TELEVISION, NO.1

main86029-30020iGS171,JZS171,173,175,179199909-200108

main86029-30030iJZS171,173,175..WG..(D4,TWC)200108

main86029-30040iJZS177,UZS17#200108-200406

main86029-30050iJZS177,UZS17#200108-200406

86110BMULTI-DISPLAY ASSY

main86110-30210iGS171,JZS17#,UZS17#199909-200008

main86110-30211iGS171,JZS17#,UZS17#200008-200108

main86110-30240iJZS177,UZS171,173..C200202-200207

main86110-30261iJZS177,UZS17#200108-200311

main86110-30262iJZS177,UZS17#200311-200406

main86110-30280iJZS171,173,175200312-200706

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-30260iGS171,JZS17#,UZS17#199909-200108

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-30250iGS171,JZS17#,UZS17#199909-200108

86271DISC, DISC PLAYER

main86271-13030iGS171,JZS17#,UZS17#200106-200108

main86271-30470iGS171,JZS17#,UZS17#199909-200106

main86271-44020iGS171,JKS175,JZS17#,UZS17#200108-200310

main86271-44021iJZS171,173,175..WG..(D4,TWC)200310-200312

main86271-44022iJZS177,UZS17#200404-200406

main86271-52041iJZS171,173,175200312-200404

main86271-52042iJZS171,173,175200404-200410

main86271-52043iJZS17#200410-200510

main86271-52045iJZS17#200510-200603

main86271-52046iJZS17#200604-200608

main86271-52047iJZS17#200609-200701

main86271-52048iJZS17#200701-200705

main86271-52049iJZS17#200706

86274DBRACKET, DISC PLAYER

main86274-30300iJZS171,173,175..WG..(D4,TWC)200108

86274FBRACKET, DISC PLAYER, NO.2

main86274-30310iJZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179200108-200312

86841COMPUTER, NAVIGATION

main86841-30080iGS171,JZS17#,UZS17#199909-200009

main86841-30081iGS171,JZS17#,UZS17#200009-200108

main86841-30091iGS171,JKS175,JZS171,173,175,179200108-200312

main86841-30092iJZS177,UZS17#200404-200406

main86841-48010iJZS171,173,175200404-200603

main86841-52020iJZS171,173,175200312-200404

8613430010PARTS, MULTI-DISPLAY

main86134-30010

8613430020PARTS, MULTI-DISPLAY

main86134-30020

8613430030PARTS, MULTI-DISPLAY

main86134-30030

9015350010

main90153-50010

9015450009

main90154-50009

9017906097

main90179-06097

9017906159

main90179-06159

9017906206

main90179-06206

9046710203

main90467-10203

91511J0625

main91511-J0625

9151360628

main91513-60628

20 parts on this diagram · 1 diagram in section
