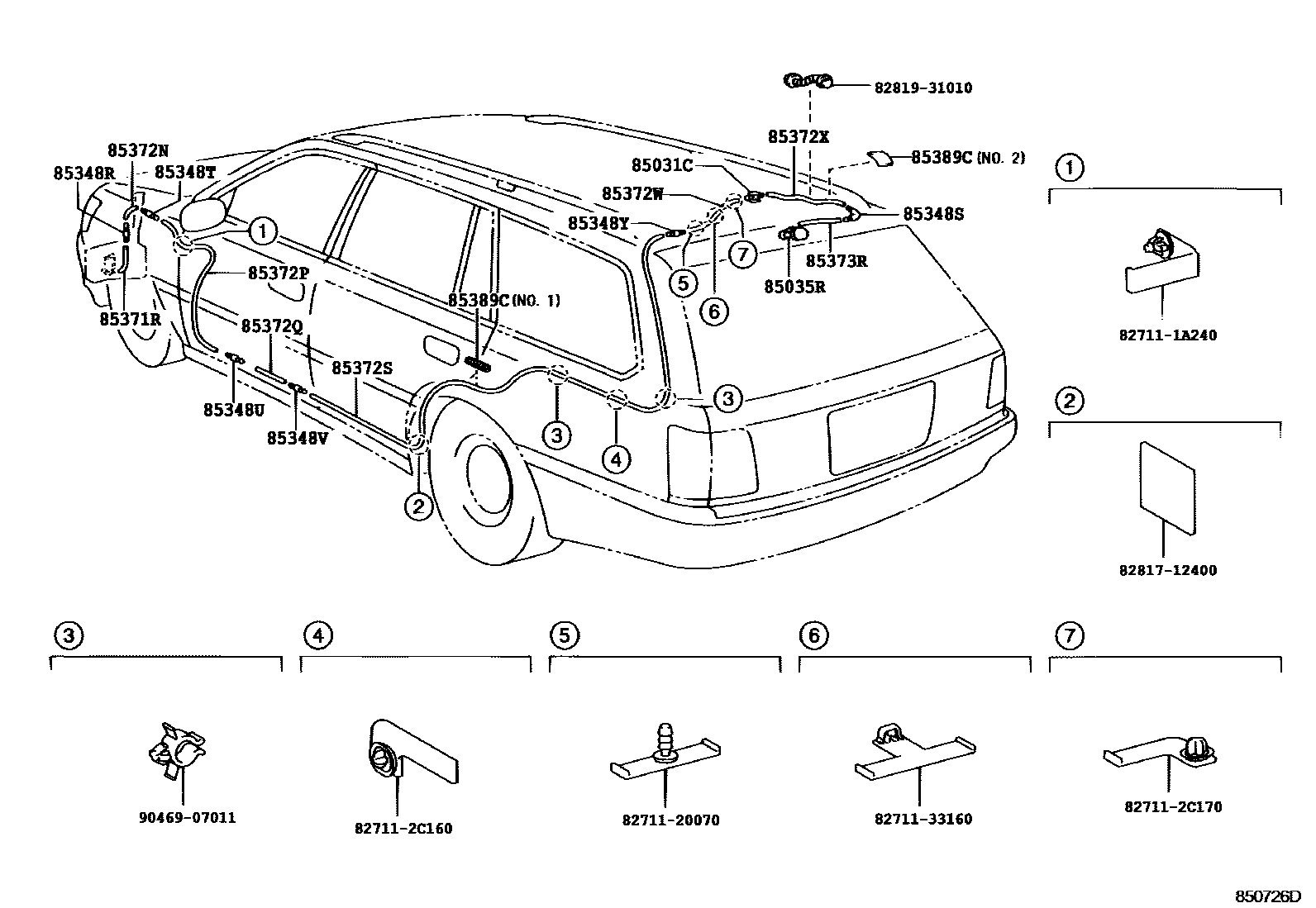

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85321-26020iJZS171,173,175..WG199912-200108

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-31010-A0iJZS171,173,175..WG199912-200108

WHITE PEARL CS.,062 ,2FQ

main85391-31010-A1iJZS171,173..WG..(ATH,ATHV)200008-200107

main85391-31010-B0iJZS171,173,175..WG199912-200108

SILVER ME.,1C0

main85391-31010-B1iJZS17#200512-200706

SILVER ME.,1F7

main85391-31010-B2iJZS17#200512-200706

QUARTZ GRAY PM.,1G4

main85391-31010-C0iJZS171,173..WG..(ATH,ATHV)200008-200107

main85391-31010-D0iGS171,JZS171,173,175..WG200108-200210

RED MC.,3N1

main85391-31010-D1iGS171,JZS171,173,175..WG200210-200706

BORDEAUX MC.,3P2

main85391-31010-D2iJZS171,173,175..WG..(D4,TWC)200108-200706

BLACKISH RED MC.,3R0

main85391-31010-D3iJZS17#200512-200706

GINGER RED M.M.,3R6

main85391-31010-G0iGS171,JZS171,173,175..WG200108-200706

BLACKISH GREEN MC.CC,6R5

main85391-31010-G1iGS171,JZS171,173,175..WG200108-200706

LT.GREEN M.M.,6S8

main85391-31010-J0iJZS171,173,175..WG199912-200108

DK.BLUE MC.,8L4

main85391-31010-J1iJZS171,173,175..WG199912-200108

GRAYISH BLUE ME.,8N6

main85391-31010-J2iGS171,JZS171,173,175..WG200108-200706

DARK BLUE MC.,8P8

main85391-31010-J3iJZS171,173,175..WG..(D4,TWC)200108-200706

LT.BLUE MC.,8S0

main85391-31010-J4iJZS17#200512-200706

DK.BLUE MC.,8S6

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iJZS171,173,175..WG199912-200108

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iJZS171,173,175..WG199912-200108

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iJZS171,173,175..WG199912-200108

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-10260iJZS171,173,175..WG199912-200108

85348VJOINT, REAR WASHER HOSE, NO.4

main85375-10260iJZS171,173,175..WG199912-200108

85348YJOINT, REAR WASHER HOSE, NO.5

main85375-10260iJZS171,173,175..WG199912-200108

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iJZS171,173,175..WG199912-200108

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iJZS171,173,175..WG199912-200108

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-06006iJZS171,173,175..WG200002-200108

main90446-06013iJZS171,173,175..WG199912-200002

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iJZS171,173,175..WG199912-200108

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33658iJZS171,173,175..WG199912-200108

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-33299iJZS171,173,175..WG199912-200108

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-33299iJZS171,173,175..WG199912-200108

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iJZS171,173,175..WG199912-200108

85389CPROTECTOR, WASHER

main85389-31030iJZS171,173,175..WG199912-200108

main85389-31040iJZS171,173,175..WG199912-200108

827111A240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A240

8271120070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20070

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

8271133160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33160

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

8281931010GROMMET, WIRING HARNESS

main82819-31010

9046907011

main90469-07011

25 parts on this diagram · 1 diagram in section
