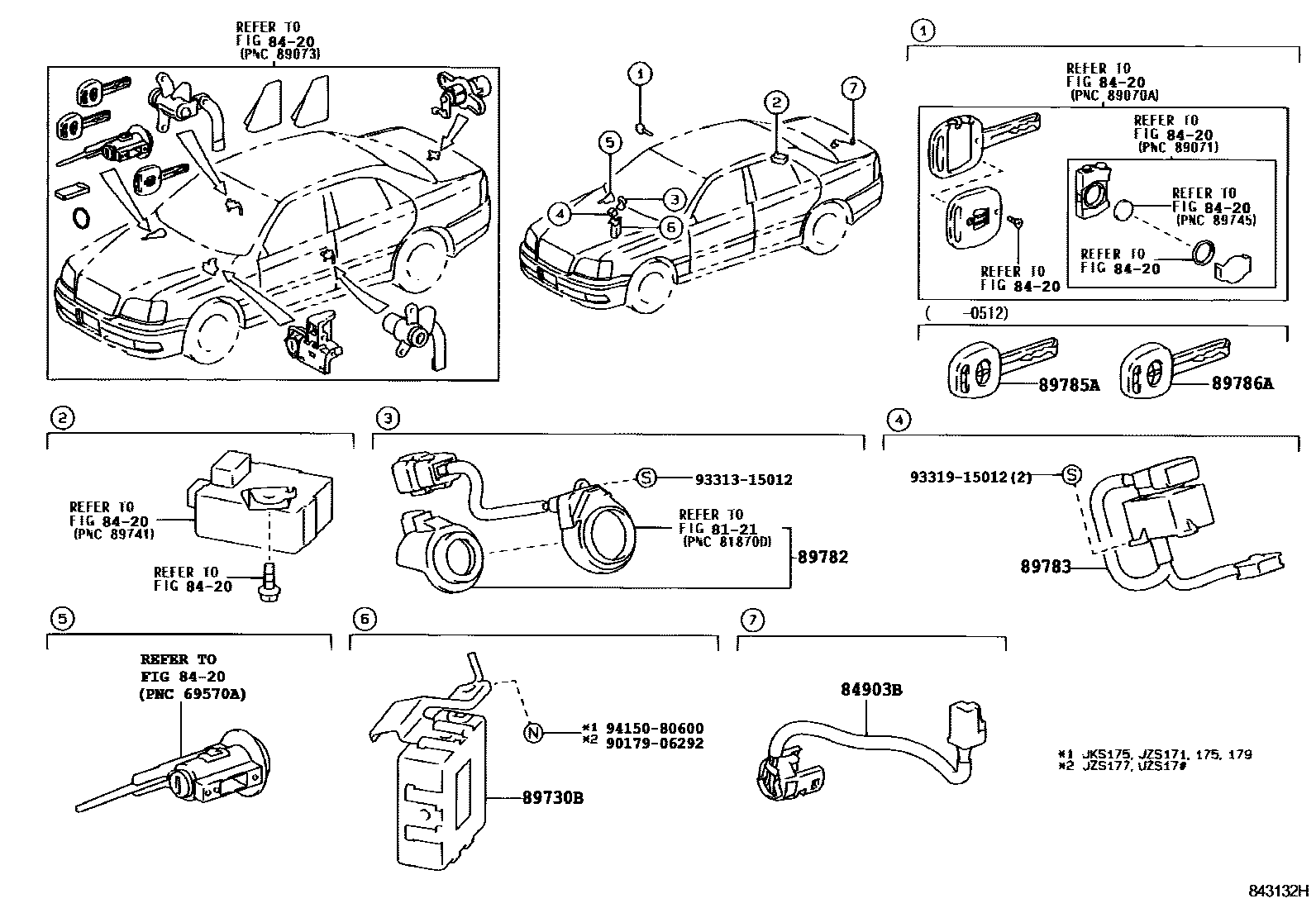

ANTI-THEFT DEVICE

0001 1 0002 1

8121INTERIOR LAMP

→ Go to FIG 81-21

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-30070iJKS175,JZS171,175,179..SED200108-200312

main84903-30080iJZS177,UZS17#200108-200406

main84903-31010iJZS171,175..WG200108-200706

89730BCOMPUTER ASSY, THEFT WARNING

main89730-30070iJKS175,JZS171,175,177,179,UZS17#200108-200512

main89730-30100iJZS171,175200512

89782COIL, TRANSPONDER KEY

main89790-30010iJZS175,177,UZS17#199909-200108

89783AMPLIFIER, TRANSPONDER KEY

main89783-30050iJZS175,177,UZS17#199909-200108

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50070iJZS175,177,UZS17#199909-200108

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50070iJZS175,177,UZS17#199909-200108

9017906292

main90179-06292

9331315012

main93313-15012

9331915012

main93319-15012

9415080600

main94150-80600

12 parts on this diagram · 2 diagrams in section
