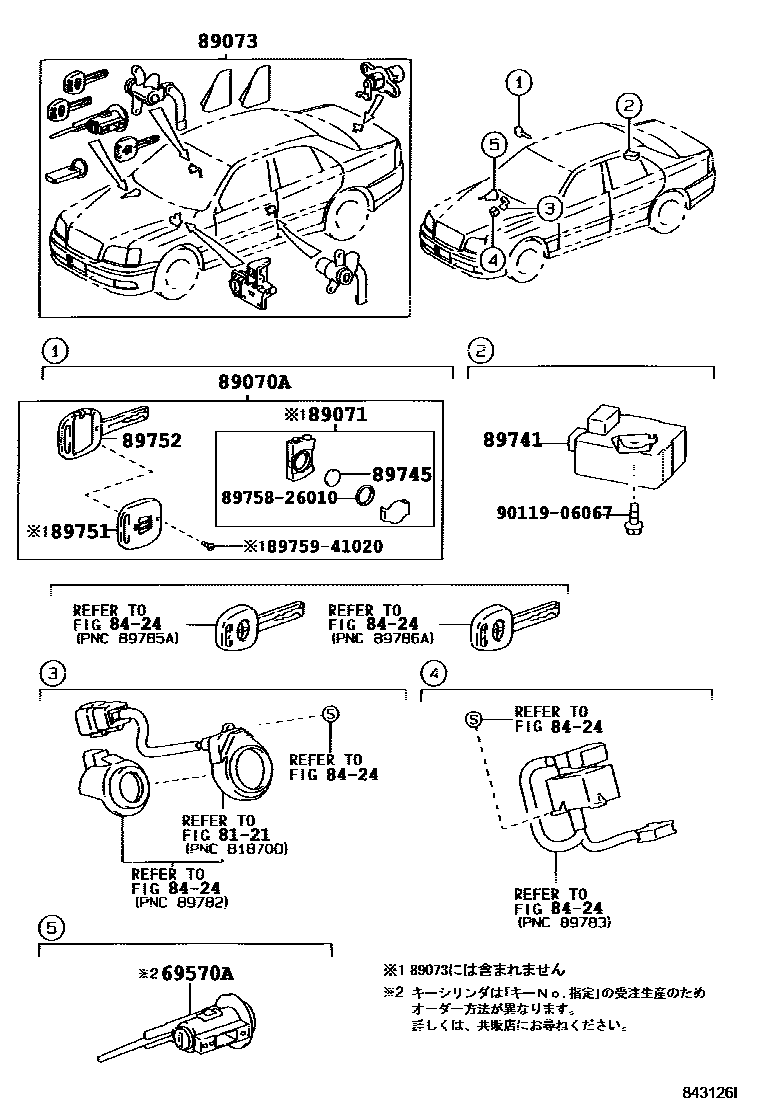

WIRELESS DOOR LOCK

0001 1��(��������) 0002 1��(��������) 0003 1��(��������) 0004 1��(��������)

69570ACYLINDER ASSY, IGNITION SWITCH LOCK

main69570-30210iJKS175,JZS171,175,179..SED200108-200312

8121INTERIOR LAMP

→ Go to FIG 81-21

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-30180iJKS175,JZS171,175,177,179,UZS17#..SED200108-200406

main89070-30190iGS171,JZS171,173,175,179..SED199909-200108

main89070-30270iJZS175..WG199912-200108

main89070-30280iJZS171,173,175..WG199912-200108

main89070-31050iJZS171,175200512

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-26010iJZS173..WG200108-200508

main89071-30010iJKS175,JZS171,175,177,179,UZS17#..SED200108-200406

main89071-30020iGS171,JZS171,173,175,179..SED199909-200108

main89071-30050×3iJZS171,175200512

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-30A00iJKS175,JZS171,175,179..ROY200212-200312

PREMIUM *(R)

main69005-31140iJZS171,175..WG200108-200512

main69005-31170iJZS171..WG..D4200108-200312

main69005-31180iJZS171,175200512-200706

main69005-3A110iJKS175,JZS171,175,179..SED200108-200312

main69005-3A120iGS171,JZS171,173..SED..(D4,HTWC,TWC)200108-200312

main69005-3A130iJZS177,UZS17#200108-200406

main69005-3A180iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A)

main89073-30240iJZS175..SED199909-200108

main89073-30250iGS171,JZS171,173,175,179..SED199909-200108

main89073-30260iJZS177,UZS17#199909-200108

main89073-30330iJZS175..WG199912-200108

main89073-30340iJZS171,173,175..WG199912-200108

89741RECEIVER, DOOR CONTROL

main89741-30260iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main89741-30300iGS171,JZS171..WG..4FC200108-200312

89745BATTERY, TRANSMITTER

main89745-26010iJZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179200108-200312

89751COVER, TRANSMITTER HOUSING

main89751-30010iJZS171,175199909-200511

main89751-31020iJZS171,175200512

89752CASE, TRANSMITTER HOUSING

main89752-30050iJZS171,175200512-200706

main89752-30060iGS171,JZS171,173,175..WG199912-200706

main89752-51010iGS171,JKS175,JZS17#,UZS17#..SED199909-200406

8975826010PACKING, DOOR CONTROL TRANSMITTER

main89758-26010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906067

main90119-06067

13 parts on this diagram · 4 diagrams in section
