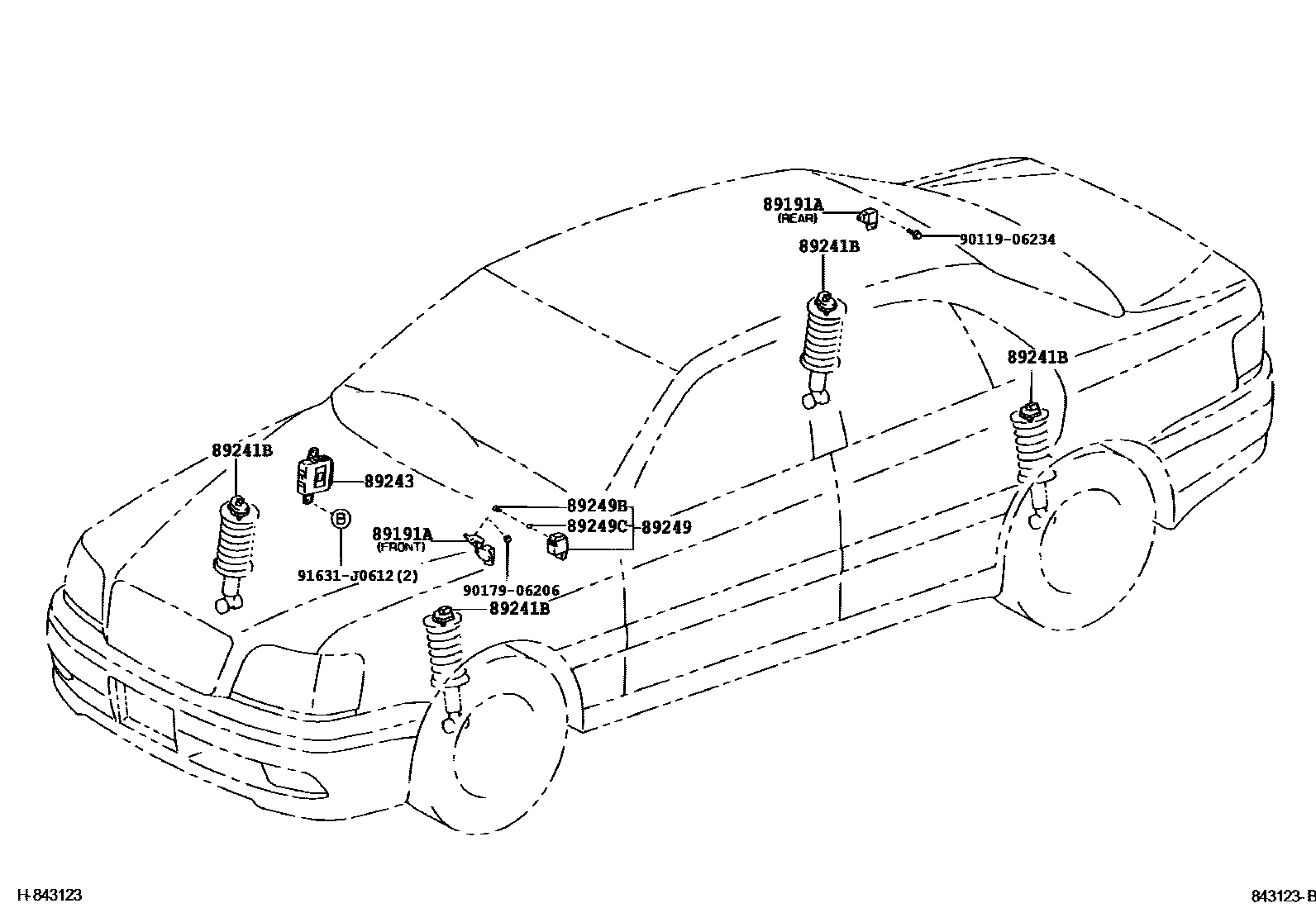

ELECTRONIC MODULATED SUSPENSION

0001 1TEMS 0002 1����������

89191ASENSOR, ACCELERATION

main89191-30020iJZS175..ROYG; UZS171,173199909-200108

main89191-30030iJZS175..ROYG200108-200312

89241BACTUATOR, ABSORBER CONTROL

main89241-30040×4iJZS175..ROYG200108-200312

89243COMPUTER, ABSORBER CONTROL

main89243-30060iJZS175..ROYG199909-200108

main89243-30070iJZS175..ROYG200108-200312

89249SWITCH, ABSORBER CONTROL

main89249-30050iJZS175..ROYG199909-200108

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10820iJZS175..ROYG199909-200108

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10670iJZS175..ROYG199909-200108

9011906234

main90119-06234

9017906206

main90179-06206

91631J0612

main91631-J0612

9 parts on this diagram · 2 diagrams in section
