ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

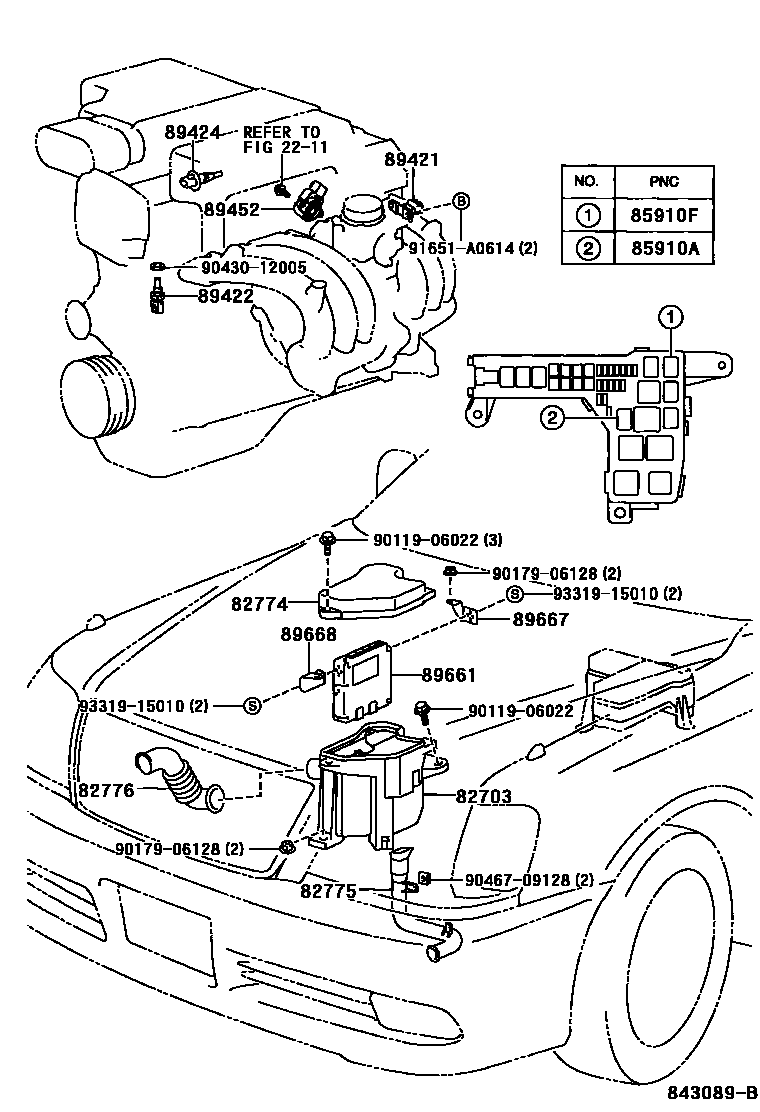

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-30020iGS171,JKS175,JZS171,173,175,179200108

main82703-30030iJZS177,UZS17#200108-200406

82774COVER, ENGINE ROOM ECU

main82774-30020iJZS179;GS171,JZS171..HTWC,TWT199909-200108

main82774-30030iJKS175,JZS171,173,175,177,UZS17#..D4,HTWC,TWC200108

82775DUCT, ENGINE ROOM ECU INLET

main82775-30020iGS171,JZS17#,UZS17#199909-200108

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30020iGS171,JZS171,173,175,179..D4,HTWC,TWC199909-200108

main82776-30030iJKS175;JZS171..TWT200108-200312

main82776-30040iUZS17#200108-200406

main82776-30050iJZS177200108-200406

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iGS171,JZS17#,UZS17#199909-200108

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iGS171,JZS17#,UZS17#199909-200108

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20190iGS171,JZS171,173,175,177..D4,HTWC,TWC199909-200108

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iJZS17#,UZS17#199909-200108

main89422-35010iGS171200108-200312

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGS171,JZS171,173,175,177..D4,HTWC,TWC199909-200108

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22070iGS171200108-200312

main89452-22100iJKS175,JZS171,175,177..D4200108-200706

main89452-30140iJZS171,173,UZS17#..HTWC,TWC,TWT200108-200706

main89452-30150iJZS175,177,179199909-200108

89661COMPUTER, ENGINE CONTROL

main89661-31010iJZS175..WG200108-200509

main89661-31020iJZS171..WG..TWT200108-200312

main89661-31030iJZS171..WG..D4200108

main89661-31060iGS171..ATHE200108-200312

main89661-31070iJZS173..WG200108

main89661-3A590iUZS171,175199909-200108

main89661-3A600iUZS173199909-200108

main89661-3A610iJZS177199909-200010

main89661-3A620iJZS175..SED..(ROY,ROYG)199909-200010

main89661-3A630iJZS175..SED..ATHG199909-200010

main89661-3A640iJZS179199909-200008

main89661-3A660iJZS171..SED..TWT199909-200008

main89661-3A670iJZS171..SED..ATH199909-200108

main89661-3A680iJZS171..SED..4FC..TWC199909-200108

main89661-3A690iJZS173..ROYEX199909-200108

main89661-3A700iJZS173..SED..ATH199909-200108

main89661-3A710iGS171200004-200108

main89661-3A720iJZS175..WG..ROY199912-200010

main89661-3A730iJZS175..WG..ATHG199912-200010

main89661-3A740iJZS171..WG..TWT199912-200008

main89661-3A750iJZS171..WG..ATH199912-200108

main89661-3A760iJZS171..WG..ROY199912-200108

main89661-3A770iJZS173..WG199912-200108

main89661-3A780iJZS171..ATHE200008-200108

main89661-3A810iJZS177200010-200108

main89661-3A820iJZS175..SED..(ROY,ROYG)200010-200108

main89661-3A830iJZS175..SED..ATHG200010-200108

main89661-3A840iJZS175..WG..ROY200010-200108

main89661-3A850iJZS175..WG..ATHG200010-200108

main89661-3A860iJZS179200008-200108

main89661-3A870iJZS171..SED..TWT200008-200108

main89661-3A880iJZS171..WG..TWT200008-200108

main89661-3F160iUZS173200108-200406

main89661-3F170iUZS171,175200108-200406

main89661-3F180iJZS177200108-200406

main89661-3F190iJZS175..ROY,ROYG200108-200312

main89661-3F200iJZS175..SED..ATHG200108-200312

main89661-3F210iJKS175200108-200312

main89661-3F220iJZS179200108-200312

main89661-3F230iJZS171..SED..TWT200108-200312

main89661-3F240iJZS171..4FC..D4200108-200312

main89661-3F250iJZS171..SED..ATH200108-200312

main89661-3F280iGS171..ROYEX200108-200312

main89661-3F440iJZS173..ROYEX200108-200312

main89661-3F450iJZS173..SED..ATH200108-200312

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30250×2iJZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT199909-200108

main89667-30270×2iJZS171,173..TWC199909-200108

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30210iGS171200004-200108

9011906022

main90119-06022

9017906128

main90179-06128

9043012005

main90430-12005

9046709128

main90467-09128

91651A0614

main91651-A0614

9331915010

main93319-15010
