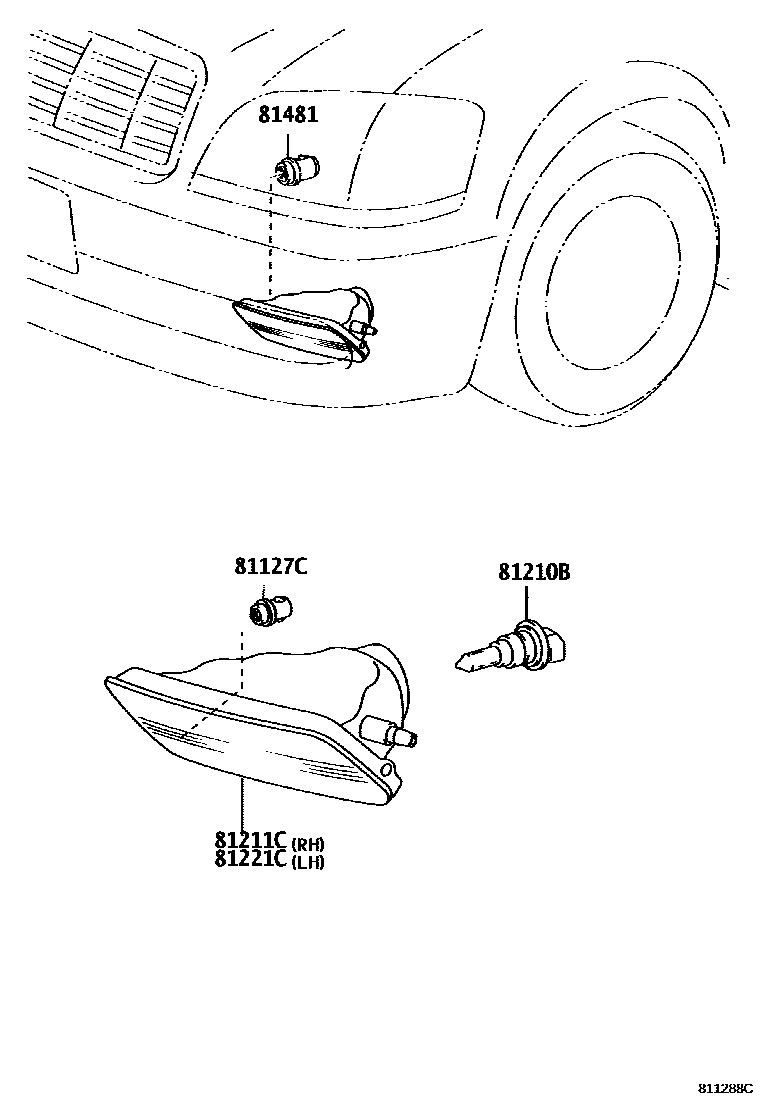

FOG LAMP

0001 1 0002 1

81127CBEARING FOG LAMP

main90075-10811×2iJZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179200108-200312

81210BBULB, FOG LAMP

main90080-81040×2iGS171,JZS17#,UZS17#199909-200108

main90981-13047×2iGS171,JKS175,JZS17#,UZS17#200108

81211CLAMP UNIT, FOG LAMP, RH

main81211-30250iGS171,JKS175,JZS171,173,175,179200108-200503

main81211-30251iJZS17#200503

main81211-30260iJZS177,UZS17#199909-200108

main81211-30270iJZS177,UZS17#200108-200406

81221CLAMP UNIT, FOG LAMP, LH

main81221-30170iJZS177,UZS17#199909-200108

main81221-30230iGS171,JKS175,JZS171,173,175,179200108-200503

main81221-30231iJZS17#200503

main81221-30240iJZS177,UZS17#200108-200406

81481BRACKET, FOG LAMP

main81481-10030×2iJZS171,173,175,179199909-200002

main81481-28040×2iGS171,JZS171,173,175,179200002-200108

5 parts on this diagram · 2 diagrams in section
