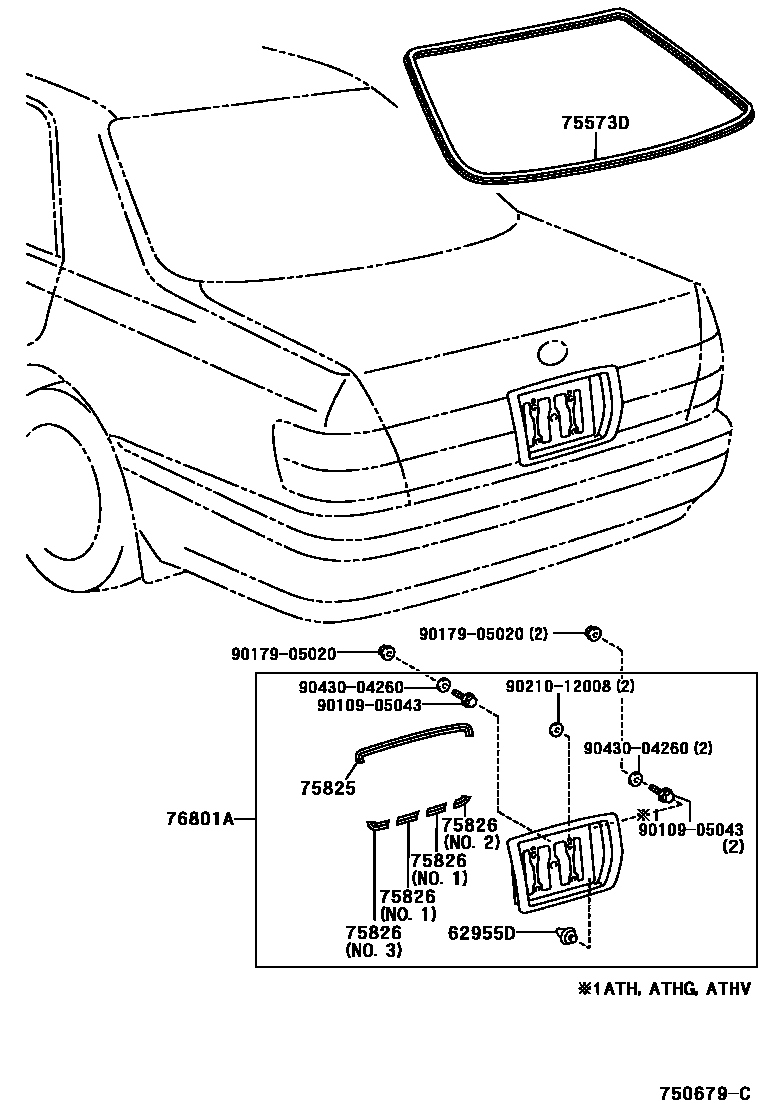

REAR MOULDING

0001 1 0002 1 0003 1

62955DRETAINER, LUGGAGE COMPARTMENT DOOR GARNISH

main62955-20040iGS171,JZS171,173,175,179..SED; JZS177,UZS17#199909-200108

75573DMOULDING, BACK WINDOW, OUTSIDE

main75573-30280iGS171,JZS171,173,175,179..SED199909-200108

main75573-30340iJZS177,UZS17#199909-200108

main75573-31010iJZS171,173,175..WG199912-200108

75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING

main75825-30060iJZS177,UZS17#199909-200108

main75825-30090iGS171,JKS175,JZS171,173,175,179..SED200108-200312

75826PAD, BACK DOOR OUTSIDE MOULDING, RH

main75826-30030×2iJZS177,UZS17#199909-200108

main75826-30040×2iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200109

main75826-30050×2iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

main75826-30060×2iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200109-200312

main75826-30070×2iJZS171,173,175..SED..(ATH,ATHG,ATHV)200109-200312

main75827-30020×2iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

main75827-30030×2iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200109

main75827-30040iGS171,JKS175,JZS171,173,175,179..SED200109-200312

main75828-30040iGS171,JKS175,JZS171,173,175,179..SED200109-200312

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-30030iJZS177,UZS17#200108-200406

main76801-30080iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main76801-30090-A0iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

WHITE PEARL CS.,062 ,2FQ

main76801-30090-A1iJZS171,173..SED..(ATH,ATHV)200008-200107

main76801-30090-B0iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

SILVER ME.,1C0

main76801-30090-C0iJZS171,173..SED..(ATH,ATHV)200008-200107

main76801-30090-D0iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

ROSE RED MC.,3M9

main76801-30090-G0iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

BLACKISH GREEN MC.CC,6R5

main76801-30090-G1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

LT.GREEN M.M.,6S8

main76801-30090-J0iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

DK.BLUE MC.,2FR ,8L4

main76801-30090-J1iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

GRAYISH BLUE ME.,8N6

main76801-30090-J2iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

DARK BLUE MC.,8P8

9010905043

main90109-05043

9017905020

main90179-05020

9021012008

main90210-12008

9043004260

main90430-04260

9 parts on this diagram · 3 diagrams in section
