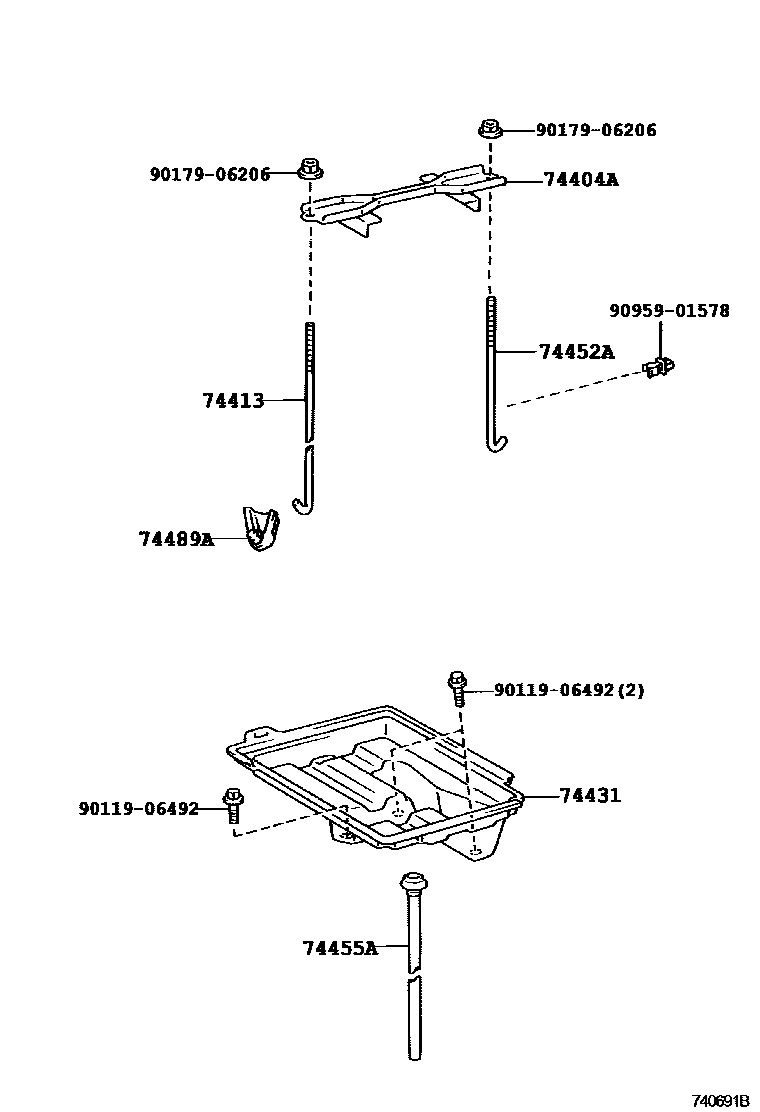

BATTERY CARRIER

0001 1 0002 1 0003 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280iGS171,JZS17#,UZS17#199909-200108

main74404-51020iGS171,JZS171,173,175,179..D4,HTWC,TWC199909-200108

main74406-30010iJKS175200108-200312

74413BOLT, BATTERY CLAMP

main74451-30100iJZS177,UZS17#199909-200108

main74451-51010iGS171,JZS171,173,175,179199909-200108

74431TRAY, BATTERY

main74431-30140iJZS177,UZS17#199909-200108

main74431-30160iJKS175200108-200312

main74431-51010iGS171,JZS171,173,175,179200108

74452ABOLT, BATTERY CLAMP, NO.2

main74452-51010iGS171,JZS171,173,175,179199909-200108

74455AHOSE, BATTERY DRAIN

main74455-30020iGS171,JZS17#,UZS17#199909-200108

74489ACOVER, BATTERY CLAMP

main74489-51010iGS171,JZS171,173,175,179199909-200108

9011906492

main90119-06492

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 3 diagrams in section
