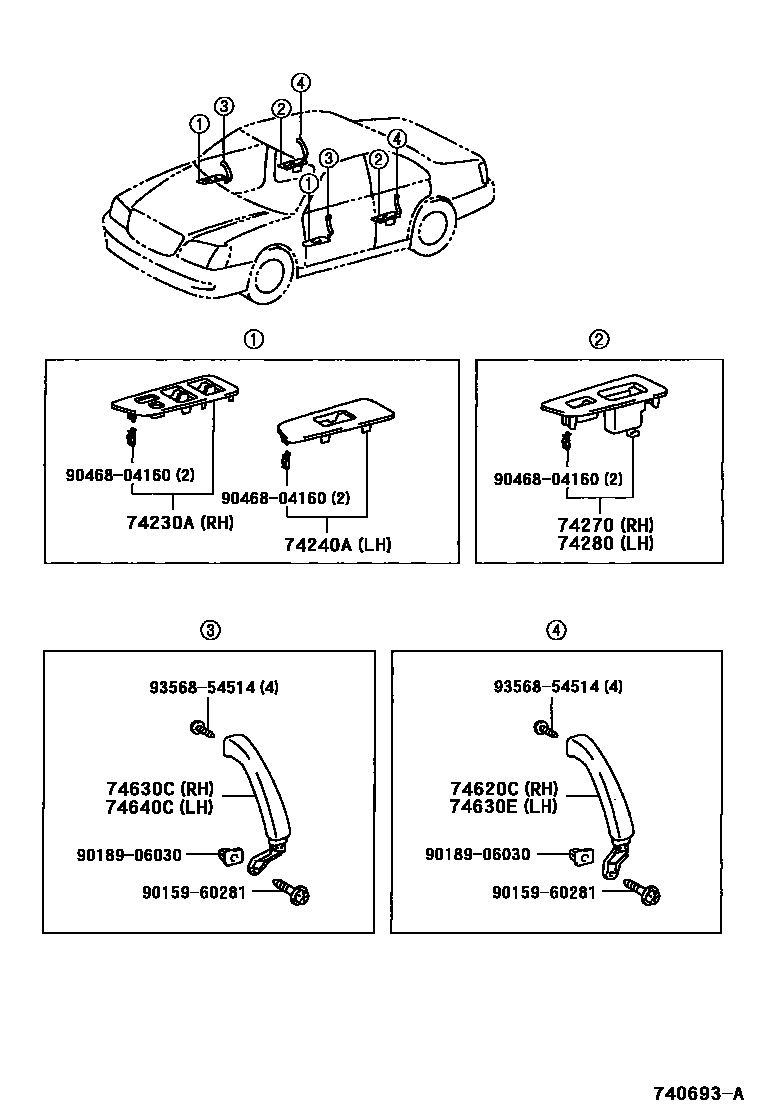

ARMREST & VISOR

0001 1 0002 1

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-30150-A0iGS171,JZS171,173,175,179199909-200108

IVORY,TRIM0#

main74230-30150-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

MEDIUM CHARCOAL,TRIM1#

main74230-30150-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DARK CHARCOAL,TRIM1#

main74230-30160-A0iGS171,JKS175,JZS17#,UZS17#200108-200706

IVORY,TRIM0#

main74230-30160-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

MEDIUM CHARCOAL,TRIM1#

main74230-30160-B1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

DARK CHARCOAL,TRIM2#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-30130-A0iGS171,JZS17#,UZS17#199909-200108

IVORY,TRIM0#

main74240-30130-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

MEDIUM CHARCOAL,TRIM1#

main74240-30130-B1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

DARK CHARCOAL,TRIM2#

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-30080-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23

main74270-30080-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

MEDIUM CHARCOAL,TRIM1#

main74270-30080-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

DARK CHARCOAL,TRIM2#

main74270-31010-A1iJZS171..ATHE200008-200012

main74270-31010-B1iJZS171,175..WG..ROY199912-200012

main74270-31010-B2iJZS171,173,175..WG..(ATH,ATHG,ATHV)199912-200012

main74270-31011-A1iJZS171,173,175..WG200012-200108

main74270-31011-B1iJZS171,175..WG..ROY200012-200108

main74270-31011-B2iJZS171,175..WG..(ATHG,ATHV)200108-200706

DARK CHARCOAL,TRIM2#

main74270-31020-A1iJZS171,173..WG..(ATH,ATHE)199912-200012

IVORY,TRIM0#

main74270-31020-B1iJZS171,173..WG..(ATH,ATHE)199912-200012

DARK CHARCOAL,TRIM1#

main74270-31021-A1iJZS171,173..WG..(ATH,ATHE)200012-200108

IVORY,TRIM0#

main74270-31021-B1iGS171,JZS171,173..WG..(ATH,ATHE)200108-200706

DARK CHARCOAL,TRIM2#

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-30080-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23

main74280-30080-B0iGS171,JZS17#,UZS17#..SED..(A,C,ROY,ROYEX,ROYG)199909-200108

MEDIUM CHARCOAL,TRIM1#

main74280-30080-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

DARK CHARCOAL,TRIM2#

main74280-31010-A1iJZS171,173,175..WG..(ATH,ATHG,ATHV,ROY)199912-200012

main74280-31010-B1iJZS171,175..WG..ROY199912-200012

main74280-31010-B2iJZS171..ATHE200008-200012

main74280-31011-A1iJZS171,173,175..WG200012-200108

main74280-31011-B1iJZS171,175..WG..ROY200012-200108

main74280-31011-B2iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)200012-200108

main74280-31020-A1iJZS171,173..WG..(ATH,ATHE)199912-200012

IVORY,TRIM0#

main74280-31020-B1iJZS171,173..WG..(ATH,ATHE)199912-200012

DARK CHARCOAL,TRIM1#

main74280-31021-A1iJZS171,173..WG..(ATH,ATHE)200012-200108

IVORY,TRIM0#

main74280-31021-B1iJZS171,173..WG..(ATH,ATHE)200012-200108

DARK CHARCOAL,TRIM1#

74620CGRIP ASSY, ASSIST, REAR RH

main74650-30090-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

DK.CHARCOAL,TRIM1#

main74650-30090-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main74650-30090-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main74650-30090-E0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-30150-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main74630-30150-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main74630-30150-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main74630-30150-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

74630EGRIP ASSY, ASSIST, REAR LH

main74660-30050-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

DK.CHARCOAL,TRIM1#

main74660-30050-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main74660-30050-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main74660-30050-E0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-30150-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

DK.CHARCOAL,TRIM1#

main74640-30150-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main74640-30150-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main74640-30150-E0iGS171,JKS175,JZS17#,UZS17#200108-200706

SANDAL WOOD,TRIM0#

9015960281

main90159-60281

9018906030

main90189-06030

9046804160

main90468-04160

9356854514

main93568-54514

12 parts on this diagram · 2 diagrams in section
