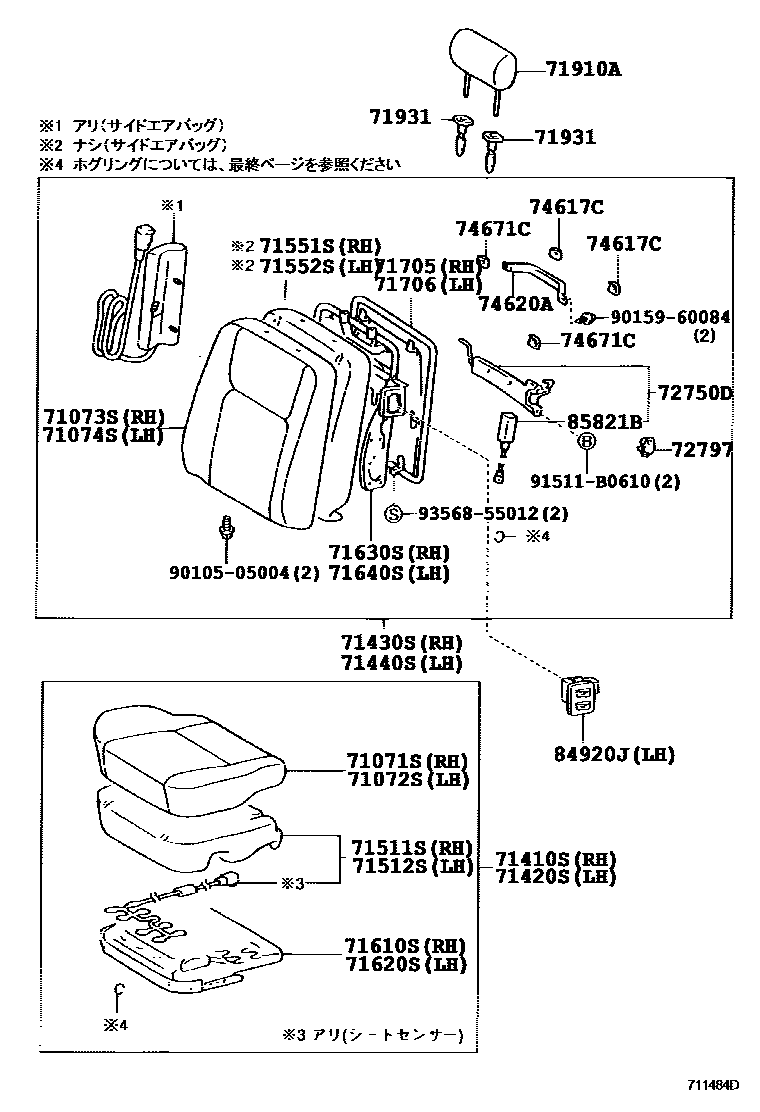

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1�������� �� 0004 1���- �-� 0005 1��-��� �-� (RH) 0006 1�-�� �-� (LH) 0007 1 0008 1 0009 1�������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3K190-A0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71071-3K190-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71071-3K200-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71071-3K200-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71071-3K210-A0iJZS171,173..ATH,ATHE199909-200108

main71071-3K210-B0iJZS171,173..ATH,ATHE199909-200108

main71071-3K220-A0iGS171,JZS171,173..ROYEX199909-200108

main71071-3K220-B0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71071-3K230-A0iUZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT)200004-200108

main71071-3K230-C0iJZS171,175..ATHG,ATHV200108-200706

main71071-3K240-A0iJZS177,UZS17#199909-200108

main71071-3K240-B0iJZS177,UZS17#199909-200108

main71071-3K380-A0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

main71071-3K380-C0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

main71071-3K390-A0iJZS177,UZS17#200108-200406

main71071-3K390-B0iJZS177,UZS17#200108-200406

main71071-3K400-A0iGS171,JZS171,173..ATH,ATHE200108-200706

main71071-3K400-C0iGS171,JZS171,173..ATH,ATHE200108-200706

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3F510-A0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71072-3F510-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71072-3F520-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71072-3F520-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71072-3F530-A0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71072-3F530-B0iGS171,JZS171,173..ROYEX; JKS175200108-200312

main71072-3F540-A0iUZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG199909-200004

main71072-3F540-C0iJZS171,175..ATHG,ATHV200108-200706

main71072-3F550-A0iJZS177,UZS17#199909-200108

main71072-3F550-B0iJZS177,UZS17#199909-200108

main71072-3F690-A0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71072-3F690-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71072-3F700-A0iJZS177,UZS17#200108-200406

main71072-3F700-B0iJZS177,UZS17#200108-200406

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-3F670-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71073-3F670-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71073-3F680-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71073-3F680-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71073-3F690-A0iGS171,JZS171,173..ROYEX199909-200108

main71073-3F690-B0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71073-3F700-A0iUZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG199909-200004

main71073-3F700-C0iJZS171,175..ATHG,ATHV200108-200706

main71073-3F710-A0iJZS177,UZS17#199909-200108

main71073-3F710-B0iJZS177,UZS17#199909-200108

main71073-3F720-A0iGS171,JZS171,173,175,179..ROY,ROYEX199909-200108

main71073-3F720-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX200108-200312

main71073-3F730-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71073-3F730-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71073-3F740-A0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71073-3F740-B0iGS171,JZS171,173..ROYEX; JKS175200108-200312

main71073-3F750-A0iJKS175,JZS175,177..C,ROY200108-200312

main71073-3F750-C0iJZS171,175..ATHG,ATHV200108-200312

main71073-3F760-A0iJZS177199909-200108

main71073-3F760-B0iJZS177199909-200108

main71073-3F830-A0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71073-3F830-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71073-3F840-A1iJZS173..WG200108-200405

main71073-3F840-C0iGS171,JZS171..ATH,ATHE,ATHV;JZS173,175..SED..(ATH,ATHG)200108-200706

main71073-3F850-A1iJZS177,UZS17#200108-200406

main71073-3F850-B0iJZS177,UZS17#200108-200406

main71073-3F860-A0iJZS177200108-200312

main71073-3F860-B0iJZS177200108-200312

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-3F720-A0iGS171,JZS171,173,175,179..ROY,ROYEX199909-200108

main71073-3F720-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX200108-200312

main71073-3F730-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71073-3F730-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71073-3F740-A0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71073-3F740-B0iGS171,JZS171,173..ROYEX199909-200108

main71073-3F750-A0iJZS171,175,177..(ATHG,ATHV,C,ROY)..(D4,TWT)200004-200108

main71073-3F750-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main71073-3F760-A0iJZS177199909-200108

main71073-3F760-B0iJZS177199909-200108

main71073-3F840-A1×2iJZS173200405-200706

IVORY,TRIM0#

main71073-3F840-C0iJZS173..WG200108-200405

main71073-3F860-A0iJZS177200108-200312

main71073-3F860-B0iJZS177200108-200312

main71074-3F160-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71074-3F160-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71074-3F170-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71074-3F170-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71074-3F180-A0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71074-3F180-B0iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71074-3F190-A0iUZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT)200004-200108

main71074-3F190-C0iJZS177,UZS171,173..C200202-200207

main71074-3F200-A0iJZS177,UZS17#199909-200108

main71074-3F200-B0iJZS177,UZS17#199909-200108

main71074-3F270-A0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71074-3F270-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71074-3F280-A0iJZS177,UZS17#200108-200406

main71074-3F280-B0iJZS177,UZS17#200108-200406

main71074-3F290-A0iJKS175;JZS175..ROYG200108-200312

main71074-3F290-B0iJKS175;JZS175..ROYG200108-200312

main71074-3F300-A0iUZS171,173200108-200406

main71074-3F300-B0iUZS171,173200108-200406

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-3K450-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71410-3K450-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71410-3K460-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71410-3K460-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71410-3K470-A0iGS171,JZS171,173..ROYEX199909-200108

main71410-3K470-B0iGS171,JZS171,173..ROYEX199909-200108

main71410-3K480-A0iUZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT)200004-200108

main71410-3K490-A0iJZS171,173..ATH,ATHE199909-200108

main71410-3K490-B0iJZS171,173..ATH,ATHE199909-200108

main71410-3K500-A0iJZS177,UZS17#199909-200108

main71410-3K500-B0iJZS177,UZS17#199909-200108

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-3F650-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71420-3F650-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71420-3F660-A0iJZS171..ATHE200008-200108

***,IVORY,TRIM0#

main71420-3F660-B0iJZS171,173,175..ATH,ATHG,ATHV199909-200108

main71420-3F670-A0iGS171,JZS171,173..ROYEX199909-200108

main71420-3F670-B0iGS171,JZS171,173..ROYEX199909-200108

main71420-3F680-A0iUZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT)200004-200108

main71420-3F690-A0iJZS177,UZS17#199909-200108

main71420-3F690-B0iJZS177,UZS17#199909-200108

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-30310-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71040-30310-A2iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71040-30310-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71040-30310-B2iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71040-30320-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71040-30320-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71040-30350-A0iGS171,JZS171,173..ROYEX199909-200108

main71040-30350-A1iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71040-30350-B0iGS171,JZS171,173..ROYEX199909-200108

main71040-30350-B1iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71040-30360-A0iJZS175199909-200004

main71040-30360-A2iJKS175,JZS175..ROY,ROYG200108-200312

main71040-30360-C0iJZS171,175..ATHG,ATHV200108-200706

main71040-30370-A0iGS171,JZS171,173,175,179..ROY,ROYEX199909-200108

main71040-30370-B0iGS171,JZS171,173,175,179..ROY,ROYEX199909-200108

main71040-30380-A0iJZS171,175..(ATHG,ATHV,ROY)..(D4,TWT)200004-200108

main71040-30390-A0iJZS171..ATHE200008-200108

***,IVORY,TRIM0#

main71040-30390-B0iJZS171..ATHE200008-200108

***,SADDLE GRAY,TRIM1#

main71040-30400-A0iGS171,JZS171,173..ROYEX199909-200108

main71040-30400-B0iGS171,JZS171,173..ROYEX199909-200108

main71040-30410-A0iJZS171,173..ATH,ATHE199909-200108

main71040-30410-B0iJZS171,173..ATH,ATHE199909-200108

main71040-30420-A0iJZS177,UZS17#199909-200108

main71040-30420-B0iJZS177,UZS17#199909-200108

main71040-30430-A0iUZS175;JZS177,UZS171,173..C199909-200108

main71040-30430-A1iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main71040-30430-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main71040-30440-A0iJZS177199909-200108

main71040-30440-B0iJZS177199909-200108

main71040-30450-A0iJZS177..C199909-200108

main71040-30550-A0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

main71040-30550-C0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

main71040-30570-A0iGS171,JZS171,173..ATH,ATHE200108-200706

main71040-30570-C0iGS171,JZS171,173..ATH,ATHE200108-200706

main71040-30580-A0iJZS177,UZS17#200108-200406

main71040-30580-B0iJZS177,UZS17#200108-200406

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-30120-A0iJZS171,175,179..ROY,ROYG199909-200108

main71070-30120-A2iJKS175,JZS171,175,179..ROY,ROYG200108-200312

main71070-30120-B0iJZS171,175,179..ROY,ROYG199909-200108

main71070-30120-B2iJKS175,JZS171,175,179..ROY,ROYG200108-200312

main71070-30130-A0iGS171,JZS171,173..ROY,ROYEX199909-200108

main71070-30130-A2iGS171,JZS171,173..ROY,ROYEX200108-200312

main71070-30130-B0iGS171,JZS171,173..ROY,ROYEX199909-200108

main71070-30130-B2iGS171,JZS171,173..ROY,ROYEX200108-200312

main71070-30140-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30140-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30150-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30150-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30160-A0iGS171,JZS171,173..ROYEX199909-200108

main71070-30160-A1iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71070-30160-B0iGS171,JZS171,173..ROYEX199909-200108

main71070-30160-B1iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71070-30170-A0iJZS175199909-200004

main71070-30170-A2iJKS175,JZS175..ROY,ROYG200108-200312

main71070-30170-C0iJZS171,175..ATHG,ATHV200108-200706

main71070-30180-A0iJZS171,175,179..ROY199909-200108

main71070-30180-B0iJZS171,175,179..ROY199909-200108

main71070-30190-A0iGS171,JZS171,173..ROY,ROYEX199909-200108

main71070-30190-B0iGS171,JZS171,173..ROY,ROYEX199909-200108

main71070-30200-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30200-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30210-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30210-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71070-30220-A0iGS171,JZS171,173..ROYEX199909-200108

main71070-30220-B0iGS171,JZS171,173..ROYEX199909-200108

main71070-30230-A0iJZS175..ATHG,ROY199909-200004

main71070-30240-A0iJZS177,UZS17#199909-200108

main71070-30240-B0iJZS177,UZS17#199909-200108

main71070-30250-A0iUZS175;JZS177,UZS171,173..C199909-200108

main71070-30250-A1iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main71070-30250-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main71070-30260-A0iJZS177199909-200108

main71070-30260-B0iJZS177199909-200108

main71070-30270-A0iJZS177..C199909-200108

main71070-30390-A0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

main71070-30390-C0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

main71070-30400-A0iGS171,JZS171,173..ATH,ATHE;JZS171,175..SED..(ATHG,ATHV)200108-200706

main71070-30400-C0iGS171,JZS171,173..ATH,ATHE;JZS171,175..SED..(ATHG,ATHV)200108-200706

main71070-30430-A0iJZS177,UZS17#200108-200406

main71070-30430-B0iJZS177,UZS17#200108-200406

main71070-30450-A0iJKS175;JZS175..ROYG200108-200312

main71070-30450-B0iJKS175;JZS175..ROYG200108-200312

main71070-30460-A0iUZS171,173200108-200406

main71070-30460-B0iUZS171,173200108-200406

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-3A080iJZS175,177;GS171,JZS171,173,179,UZS17#..(A,ATHV,C,ROY,ROYEX)..(HTWC,TWC,TWT)200108

main71511-3A090iGS171,JZS171..ATH,ATHE; JZS175..ATHG;JZS171,173..4FC..(ATH,ATHV)200108

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-30070iJZS175..SED;GS171,JKS175,JZS171,173,177,179,UZS17#..A,ATHV,C,ROY,ROYEX200108-200406

main71052-30080iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-3A060iGS171,JZS17#..A,ATHG,ATHV,C,ROY,ROYEX200004-200108

main71551-3A070iGS171,JZS171..ATH,ATHE; JZS175..SED..ATHG;JZS171,173..4FC..(ATH,ATHV)200108

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-30560iJKS175,JZS171,175,177,179..A,ATHG,ATHV,C,ROY200108-200312

main71552-30570iGS171,JKS175,JZS171,173..ROY,ROYEX200108-200312

main71552-30580iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200312

main71552-30590iGS171,JZS171,173..ATH,ATHE;JZS171,175..SED..(ATHG,ATHV)200108-200706

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-30760iGS171,JKS175,JZS17#,UZS17#200108

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-30400iGS171,JKS175,JZS17#,UZS17#200108

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-3A270iGS171,JZS171,173,175,179199909-200108

main71630-3A280iJZS177,UZS17#199909-200108

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-3A070iJZS171..WG..TWT;JKS175,JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG)200108-200406

main71640-3A080iJZS175..ATHG;GS171,JZS171,173,177..A,ATH,ATHE,ATHV,ROY,ROYEX199909-200108

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30630-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71705-30630-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71705-30700-A0iJZS175;GS171,JZS171,173..ATH,ATHE,ATHV,ROYEX199909-200108

main71705-30700-B0iJZS171..ATHE200008-200108

DK.CHARCOAL,TRIM1#

main71705-30700-B1iJZS171..ROYEX;GS171,JKS175..SED; JZS173..ROYEX200108-200312

main71705-30700-C0iGS171,JZS171..ATH,ATHE; JZS175..ATHG;JZS171,173..4FC..(ATH,ATHV)200108-200706

main71705-30710-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main71705-30710-B0iJZS177,UZS17#199909-200108

main71705-30710-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-30630-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main71705-30630-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main71705-30700-A0iJZS175..WG;JZS175..SED..(ATHG,ROYG);GS171,JZS171,173..ATH,ATHE,ATHV,ROYEX199909-200108

main71705-30700-B0iJZS171,173,175..ATH,ATHG,ATHV199909-200108

main71705-30700-B1iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main71705-30700-B2iJZS175..SED..ROY199909-200108

main71705-30700-C0iGS171,JZS171..ATH,ATHE; JZS175..ATHG;JZS171,173..4FC..(ATH,ATHV)200108-200706

main71705-30710-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main71705-30710-B0iJZS177,UZS17#199909-200108

main71705-30710-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

71910AHEADREST ASSY, FRONT SEAT

main71910-3A160-A0×2iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG; JKS175,JZS171,175,179..ROY; JZS175..ROYG200108-200312

main71910-3A160-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG; JZS171,179..ROY;JZS175..SED..ROY199909-200108

main71910-3A170-A0×2iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71910-3A170-B0×2iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71910-3A180-A0×2iGS171,JZS171,173..ROYEX199909-200108

main71910-3A180-B0×2iGS171,JZS171,173..ROYEX; JKS175200108-200312

main71910-3A190-A0×2iUZS175;JZS171,175,177,UZS171,173..(ATHG,ATHV,C,ROY,ROYG)..(D4,HTWC,TWT)200004-200108

main71910-3A190-C0×2iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main71910-3A200-A0×2iJZS177,UZS17#199909-200108

main71910-3A200-B0×2iJZS177,UZS17#199909-200108

main71910-3A220-A0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV; JZS171,173..WG..ATH200108-200706

main71910-3A220-C0×2iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV; JZS171,173..WG..ATH200108-200706

main71910-3A230-A0iJZS177,UZS17#; UZS171; UZS171,173200108-200406

main71910-3A230-B0×2iJZS177,UZS17#; UZS171; UZS171,173200108-200406

main71910-3A240-A0iJKS175;JZS175..ROYG200108-200312

main71910-3A240-B0iJKS175;JZS175..ROYG200108-200312

main71910-3A250-A0iUZS171,173200108-200406

main71910-3A250-B0iUZS171,173200108-200406

71931SUPPORT, FRONT SEAT HEADREST

main71930-30110-A0×2iGS171,JZS17#,UZS17#; JZS177..A199909-200108

main71930-30110-B0×2iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71930-30110-B1iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG; JZS177..A199909-200108

main71930-30110-C0×2iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main71931-30030-A0iGS171,JZS17#,UZS17#; JZS177..A199909-200108

main71931-30030-B0×2iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main71931-30030-B1×2iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG; UZS171200108-200406

main71931-30030-C0×2iJZS177,UZS171,173..C200202-200207

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30230iGS171,JZS171,173,175,179199909-200108

main72750-30240iJZS177,UZS17#199909-200108

main72750-30250iJZS177,UZS17#199909-200108

72797SPACER, LUMBAR SUPPORT

main72797-30020iGS171,JZS171,173,175,179; JZS177,UZS17#199909-200108

74617CPLUG, ASSIST GRIP

main74617-30040-A0×2iGS171,JZS17#,UZS17#; JZS175..SED..ROY;JZS171,177..A,ROY199909-200108

main74617-30040-B0×2iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG; JZS175..SED..ROY;JZS171,177..A,ROY199909-200108

main74617-30040-B1×4iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DARK CHARCOAL,TRIM1#

74620AGRIP ASSY, ASSIST, REAR

main74620-30070-A0iGS171,JKS175,JZS17#,UZS17#; JZS171,173..WG..ATH;JKS175,JZS171,175,179,UZS171..C,ROY200108-200706

main74620-30070-B0×2iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main74620-30070-B1iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG; JKS175,JZS171,175,179,UZS171..C,ROY200108-200406

main74620-30070-C0×2iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV; JZS171,173..WG..ATH200108-200706

74671CSUPPORT, ASSIST GRIP

main74671-30010×2iJZS171..WG..ROY199912-200108

84920JSWITCH ASSY, POWER SEAT

main84920-30221-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main84920-30221-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main84920-30221-B1iJKS175,JZS171,175,177,179,UZS17#..A,C,ROY,ROYG200108-200406

MD.CHARCOAL,TRIM1#

main84920-30221-C0iJZS175..ATHG;JZS171..WG..TWT;JZS171,173..SED..(ATH,ATHV)200108-200706

BLACK,TRIM2#

85821MOTOR ASSY, POWER SEAT

main85820-30720iJZS171..WG..TWT;JKS175,JZS175,177,179,UZS17#;JZS171,173..SED..(ATH,ATHV,ROY)200108

85821BMOTOR ASSY, POWER SEAT

main85820-30700iGS171,JZS171,173,175,179; JZS177,UZS17#199909-200108

9010505004

main90105-05004

9015960084

main90159-60084

91511B0610

main91511-B0610

9356855012

main93568-55012

32 parts on this diagram · 9 diagrams in section
