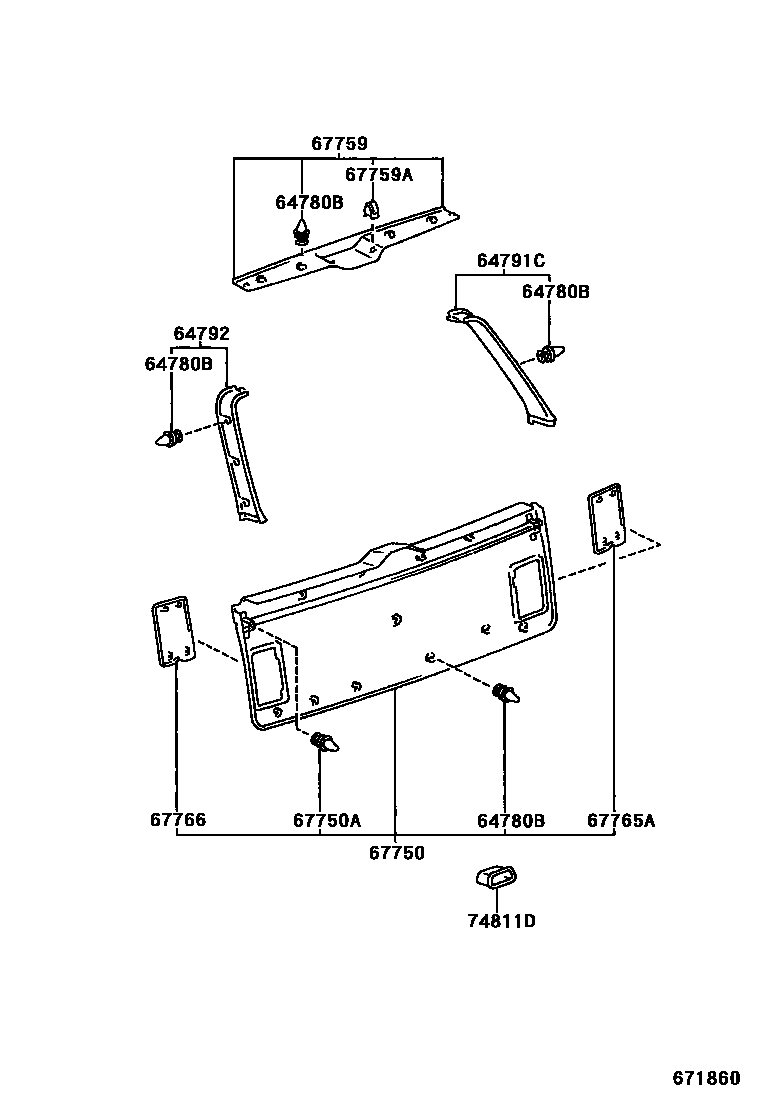

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-10161iGS171,JZS171,173,175..WG199912-200108

64791CCOVER, BACK DOOR TRIM, RH

main64791-31030-B0iJZS171,173,175..WG199912-200108

DK.CHARCOAL,TRIM1#

sub64791-31030

main64791-31030-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub64791-31030

main64791-31030-E0iJZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub64791-31030

64792COVER, BACK DOOR TRIM, LH

main64792-31010-B0iJZS171,173,175..WG199912-200108

DK.CHARCOAL,TRIM1#

sub64792-31010

main64792-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub64792-31010

main64792-31010-E0iJZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub64792-31010

67750BOARD ASSY, BACK DOOR TRIM

main67750-31010-B0iJZS171,175..WG..ROY199912-200108

DK.CHARCOAL,TRIM1#

sub67750-31010

main67750-31010-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DK.CHARCOAL,TRIM1#

sub67750-31010

main67750-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub67750-31010

main67750-31010-E0iJZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub67750-31010

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10188iJZS171,173,175..WG199912-200108

67759BOARD, BACK DOOR TRIM, UPPER

main67759-31010-B0iJZS171,173,175..WG199912-200108

DK.CHARCOAL,TRIM1#

sub67759-31010

main67759-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub67759-31010

main67759-31010-E0iGS171,JZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub67759-31010

67759ACLIP(FOR BACK DOOR TRIM BOARD)

main90468-04147iGS171,JZS171,173,175..WG199912-200108

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-31010-A1iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub67765-31010

main67765-31010-B2iJZS171,175..WG..ROY199912-200108

MEDIUM CHARCOAL,TRIM1#

sub67765-31010

main67765-31010-B3iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

sub67765-31010

main67765-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub67765-31010

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-31030-A1iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub67766-31030

main67766-31030-B2iJZS171,175..WG..ROY199912-200108

MEDIUM CHARCOAL,TRIM1#

sub67766-31030

main67766-31030-B3iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

sub67766-31030

main67766-31030-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub67766-31030

74811DHANDLE, DOOR PULL

main74811-13010-C0iJZS171,173,175..WG199912-200108

BLACK,TRIM0#,1#

sub74811-13010

main74811-13010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM0#,2#

sub74811-13010

10 parts on this diagram · 2 diagrams in section
