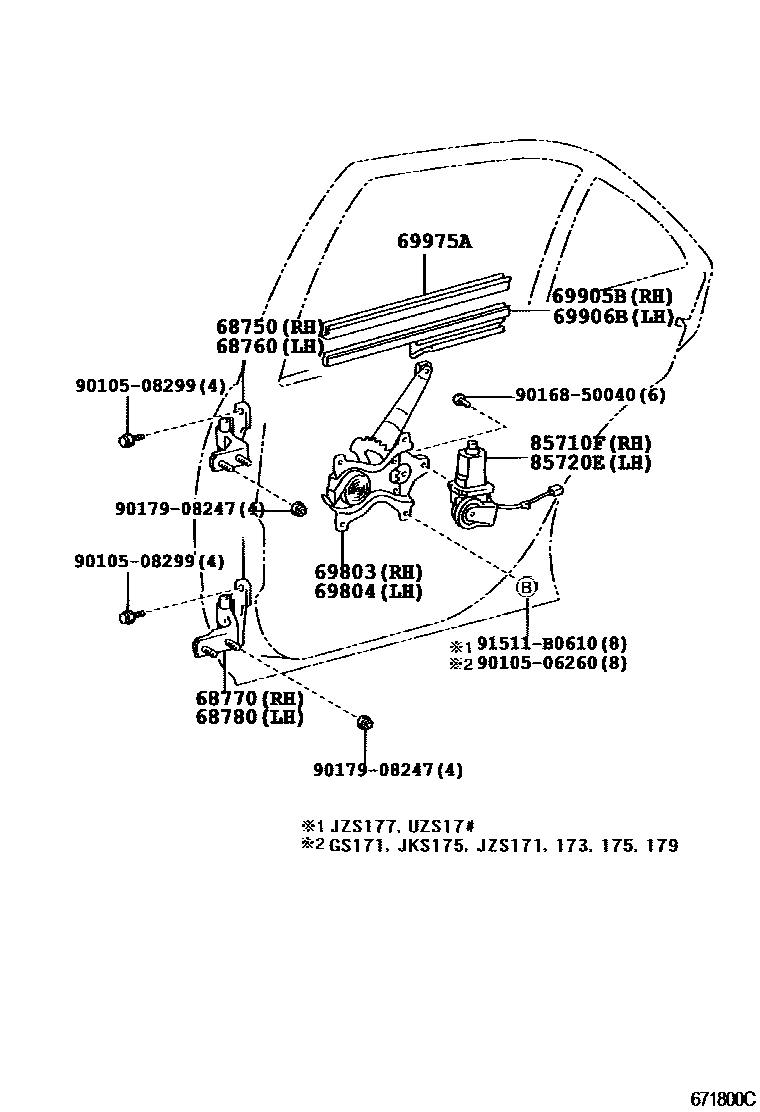

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-30110iGS171,JKS175,JZS17#,UZS17#200108-200706

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-30120iGS171,JZS17#,UZS17#199909-200108

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30110iGS171,JZS17#,UZS17#199909-200108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30120iGS171,JZS17#,UZS17#199909-200108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30250iGS171,JZS17#,UZS17#..SED199909-200108

main69803-31010iGS171,JZS171,173,175..WG200108

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30250iGS171,JZS17#,UZS17#..SED199909-200108

main69804-31010iGS171,JZS171,173,175..WG200108

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-30100iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main69905-30110iJZS177,UZS17#199909-200108

main69905-31010iGS171,JZS171,173,175..WG200108-200706

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-30080iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main69906-30090iJZS177,UZS17#199909-200108

main69906-31010iGS171,JZS171,173,175..WG200108-200706

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-30070×2iGS171,JZS171,173,175,179199909-200108

main69975-30080×2iJZS177,UZS17#200108-200406

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30310iGS171,JZS171,173,175,179199909-200108

main85720-30320iJZS177,UZS17#199909-200108

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30370iGS171,JZS171,173,175,179199909-200108

main85710-30380iJZS177,UZS17#199909-200108

9010506260

main90105-06260

9010508299

main90105-08299

9016850040

main90168-50040

9017908247

main90179-08247

91511B0610

main91511-B0610

16 parts on this diagram · 1 diagram in section
