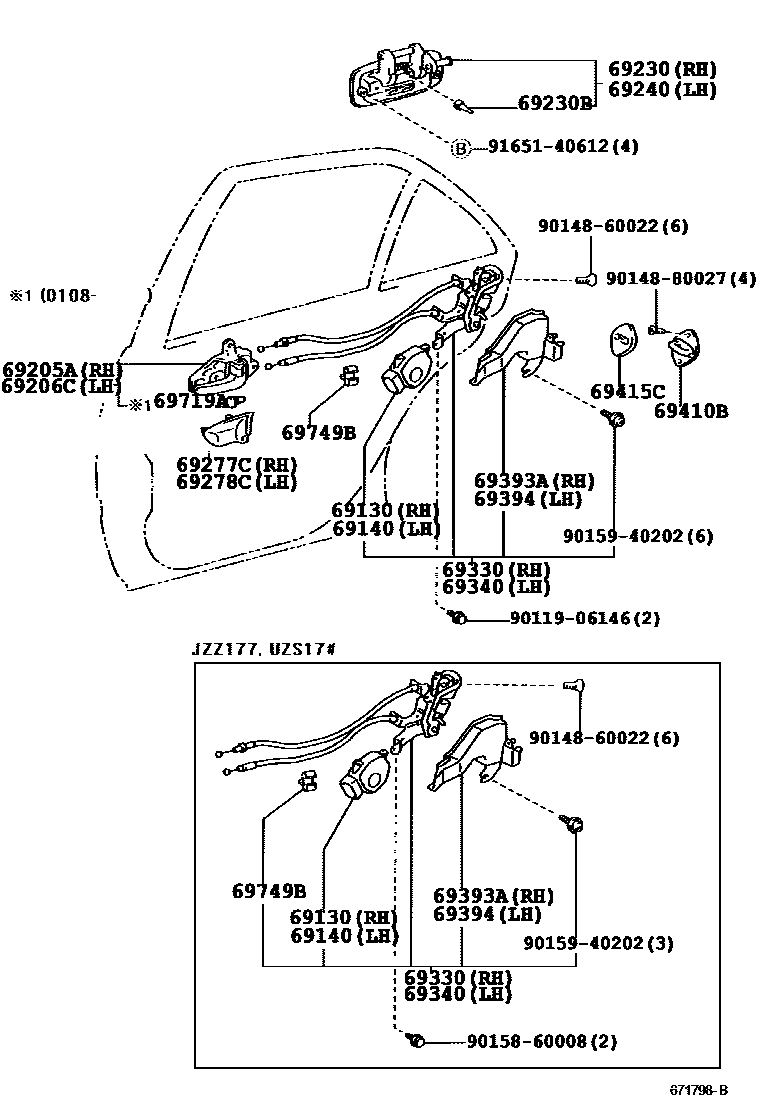

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-51010iGS171,JZS17#,UZS17#199909-200108

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-51010iGS171,JKS175,JZS17#,UZS17#200108

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30140-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main69205-30140-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69205-30140-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main69205-30140-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30140-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

DK.CHARCOAL,TRIM1#

main69206-30140-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69206-30140-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main69206-30140-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-30210iGS171,JZS17#,UZS17#199909-200108

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018×4iGS171,JZS17#,UZS17#199909-200108

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-30210iGS171,JZS17#,UZS17#199909-200108

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-30030-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main69297-30030-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69297-30030-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main69297-30030-E0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-30030-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

DK.CHARCOAL,TRIM1#

main69298-30030-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69298-30030-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main69298-30030-E0iGS171,JKS175,JZS17#,UZS17#200108-200706

SANDAL WOOD,TRIM0#

69330LOCK ASSY, REAR DOOR, RH

main69050-30440iJZS177,UZS17#199909-200108

main69050-30450iGS171,JZS171,173,175,179199909-200108

69340LOCK ASSY, REAR DOOR, LH

main69060-30480iJZS177,UZS17#199909-200108

main69060-30490iGS171,JZS171,173,175,179199909-200108

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69393-30040iGS171,JZS17#,UZS17#199909-200108

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-30040iGS171,JZS17#,UZS17#199909-200108

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-51010×2iGS171,JZS17#,UZS17#199909-200108

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30020×2iGS171,JZS17#,UZS17#199909-200108

69719ACUSHION, DOOR LOCK CONTROL

main69719-30010×8iGS171,JKS175,JZS17#,UZS17#200108

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30050×2iGS171,JZS17#,UZS17#199909-200108

9011906146

main90119-06146

9014860022

main90148-60022

9014880027

main90148-80027

9015860008

main90158-60008

9015940202

main90159-40202

9165140612

main91651-40612

23 parts on this diagram · 1 diagram in section
