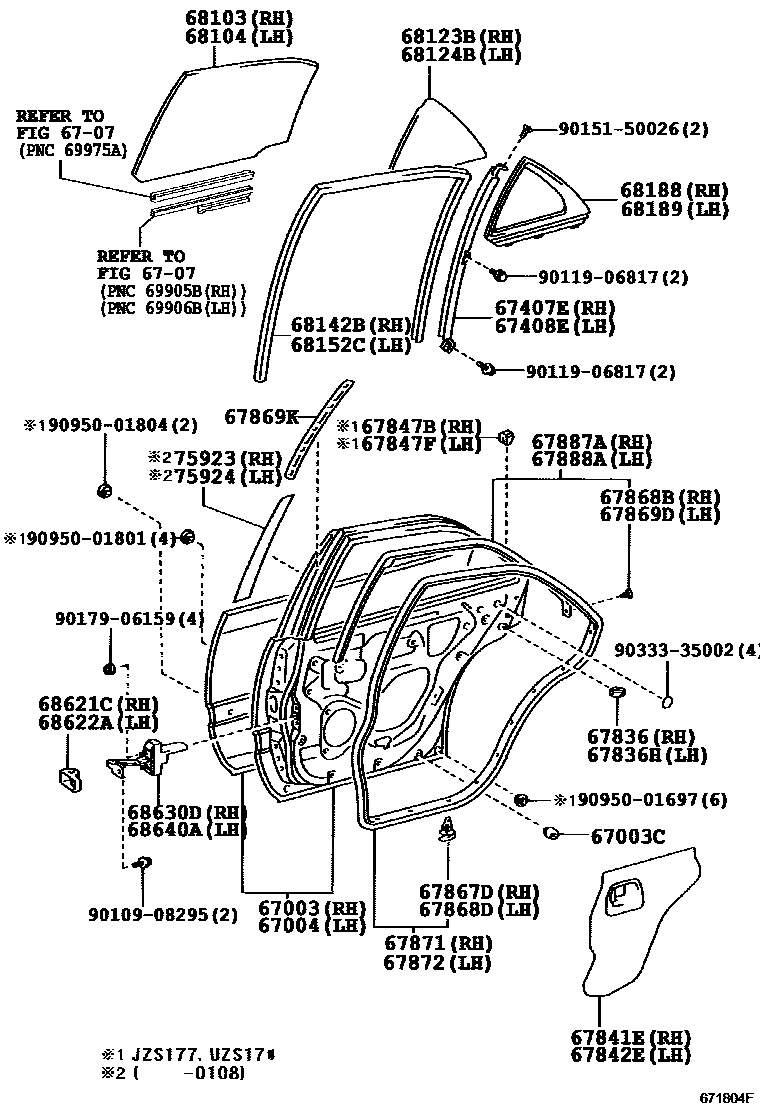

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������ 0004 1 0005 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30560iGS171,JZS171,173,175,179..SED199909-200108

main67003-30570iJZS177,UZS17#199909-200108

main67003-31090iJZS171,173,175..WG199912-200108

67003CCUSHION, REAR DOOR PANEL

main90541-10027×4iGS171,JKS175,JZS17#,UZS17#200108

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30560iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main67004-30570iJZS177,UZS17#199909-200108

main67004-31090iGS171,JZS171,173,175..WG200108-200706

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30160iGS171,JZS171,173,175,179..SED199909-200108

main67407-30170iJZS177,UZS17#199909-200108

main67407-31010iJZS171,173,175..WG199912-200108

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30150iGS171,JZS171,173,175,179..SED199909-200108

main67408-30160iJZS177,UZS17#200108-200406

main67408-31010iJZS171,173,175..WG199912-200108

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iJZS177,UZS17#200108-200406

main67836-14010iJZS17#,UZS17#199909-200003

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iJZS177,UZS17#200003-200108

main67836-14010iJZS17#,UZS17#199909-200003

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-30390iGS171,JKS175,JZS17#,UZS17#200108

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-30250iGS171,JZS17#,UZS17#199909-200108

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-30010iJZS177,UZS17#199909-200108

67847FSEAL, REAR DOOR VENT, LH

main67847-30010iJZS177,UZS17#199909-200108

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67493-32010iGS171,JZS17#,UZS17#199909-200108

main67867-12150×16iGS171,JKS175,JZS17#,UZS17#..SED200108-200406

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67868-30030-01iJZS177,UZS17#200108-200406

BLACK,TRIM0#,1#

main90467-05017-C0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

BLACK,TRIM0#,1#

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67493-32010iGS171,JKS175,JZS171,173,175,179200108-200706

main67867-12150×15iGS171,JZS171,173,175..WG200108-200706

67869DCLIP, DOOR WEATHERSTRIP

main67868-30030-01iJZS177,UZS17#200108-200406

BLACK,TRIM0#,1#

main90467-05017-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM0#,2#

67869KCLIP, DOOR WEATHERSTRIP, LH

main67869-30080×2iGS171,JZS17#,UZS17#199909-200108

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30240iJZS171,173,175,179..SED199909-200002

main67871-30241iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main67871-30250iJZS177,UZS17#199909-200002

main67871-30251iJZS177,UZS17#200002-200108

main67871-31020iJZS171,173,175..WG199912-200003

main67871-31021iJZS171,173,175..WG200003-200108

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30250iJZS171,173,175,179..SED199909-200002

main67872-30251iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main67872-30260iJZS177,UZS17#199909-200002

main67872-30261iJZS177,UZS17#200002-200108

main67872-31020iJZS171,173,175..WG199912-200003

main67872-31021iJZS171,173,175..WG200003-200108

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30110iJZS171,173,175,179..SED199909-200002

main67887-30111iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main67887-30120iJZS177,UZS17#199909-200002

main67887-30121iJZS177,UZS17#200108-200406

main67887-31010iJZS171,173,175..WG199912-200003

main67887-31011iJZS171,173,175..WG200003-200108

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-30110iJZS171,173,175,179..SED199909-200002

main67888-30111iGS171,JZS171,173,175,179..SED200002-200108

main67888-30120iJZS177,UZS17#199909-200002

main67888-30121iJZS177,UZS17#200002-200108

main67888-31010iJZS171,173,175..WG199912-200003

main67888-31011iJZS171,173,175..WG200003-200108

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30680iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main68113-30700iJZS177,UZS17#199909-200108

main68113-30710iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

main68113-30730iJZS177,UZS171,173..C200202-200207

main68113-31020iJZS171,175..WG..(ATHE,ROY)199912-200108

main68113-31030iJZS171,173,175..WG199912-200108

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30600iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

main68114-30620iJZS177,UZS17#199909-200108

main68114-30630iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

main68114-30650iJZS177,UZS171,173..C200202-200207

main68114-31020iJZS171,175..WG..(ATHE,ROY)199912-200108

main68114-31030iJZS171,173,175..WG199912-200108

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-30460iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main68123-30480iJZS177,UZS17#199909-200108

main68123-30490iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

main68123-30520iJZS177,UZS17#200108-200406

main68123-30530iJZS177,UZS171,173..C200202-200207

main68123-31020iJZS171,175..WG..(ATHE,ROY)199912-200108

main68123-31030iGS171,JZS171,173,175..WG200108

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-30400iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main68124-30420iJZS177,UZS17#199909-200108

main68124-30430iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

main68124-30460iJZS177,UZS17#200108-200406

main68124-30470iJZS177,UZS171,173..C200202-200207

main68124-31020iGS171..ATHE200108-200312

main68124-31030iJZS171,173,175..WG199912-200108

68142BRUN, REAR DOOR WINDOW, RH

main68142-30160iGS171,JZS171,173,175,179..SED200011-200108

main68142-30161iGS171,JZS171,173,175,179..SED200004-200011

main68142-30170iJZS177,UZS17#200108-200406

main68142-30171iJZS177,UZS17#200004-200011

main68142-31010iJZS171,173,175..WG199912-200008

main68142-31011iJZS171,173,175..WG200008-200011

68152CRUN, REAR DOOR GLASS, LH

main68152-30060iGS171,JZS171,173,175,179..SED200011-200108

main68152-30061iGS171,JZS171,173,175,179..SED200004-200011

main68152-30070iJZS177,UZS17#200011-200108

main68152-30071iJZS177,UZS17#200004-200011

main68152-31010iGS171,JZS171,173,175..WG200108

main68152-31011iJZS171,173,175..WG200008-200011

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30130iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main68188-30140iJZS177,UZS17#199909-200108

main68188-31010iGS171,JZS171,173,175..WG200108

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30110iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main68189-30120iJZS177,UZS17#199909-200108

main68189-31010iGS171,JZS171,173,175..WG200108

68621CCOVER, REAR DOOR CHECK, RH

main68621-33010iGS171,JKS175,JZS17#,UZS17#200108

68622ACOVER, REAR DOOR CHECK, LH

main68622-33010iGS171,JKS175,JZS17#,UZS17#200108

68630DCHECK ASSY, REAR DOOR, RH

main68630-30180iGS171,JZS17#,UZS17#199909-200108

68640ACHECK ASSY, REAR DOOR, LH

main68640-30080iGS171,JZS17#,UZS17#199909-200108

75923TAPE, BLACK OUT, NO.2 RH

main75923-30010iJZS17#,UZS17#199909-200004

main75923-30011iGS171,JZS17#,UZS17#200004-200108

75924TAPE, BLACK OUT, NO.2 LH

main75924-30010iJZS17#,UZS17#199909-200004

main75924-30011iGS171,JZS17#,UZS17#200004-200108

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9017906159

main90179-06159

9033335002

main90333-35002

9095001697

main90950-01697

9095001801

main90950-01801

9095001804

main90950-01804

43 parts on this diagram · 5 diagrams in section
