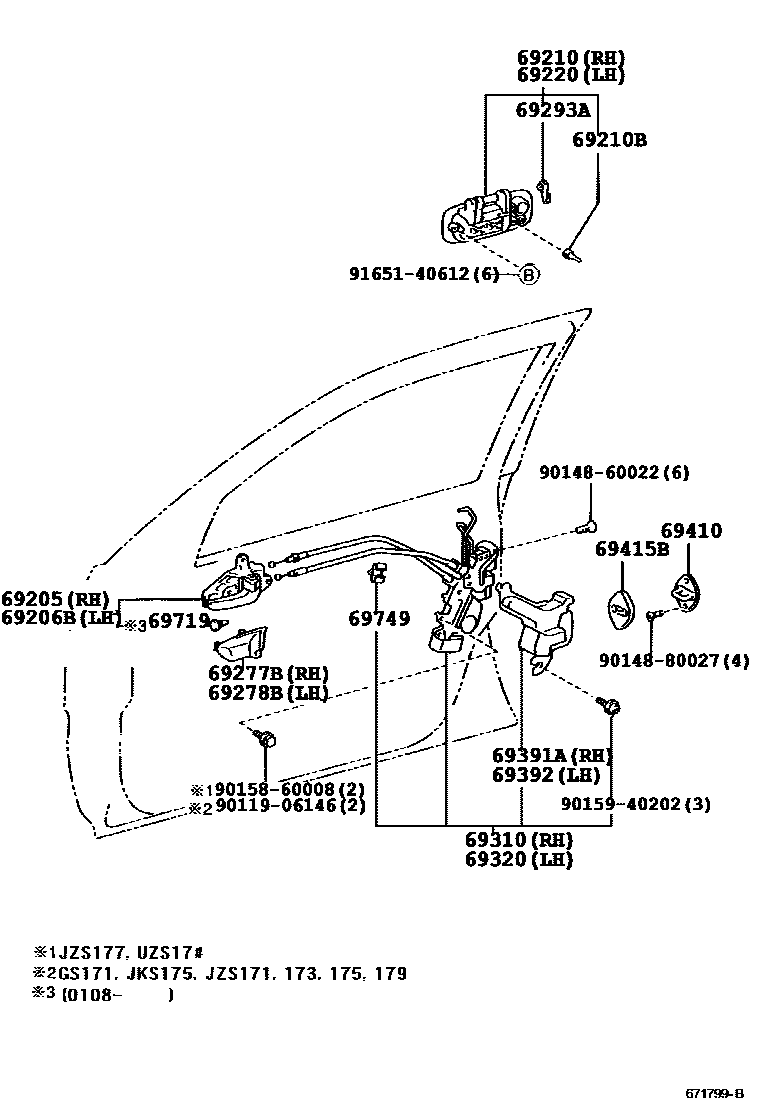

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30140-B0iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

DK.CHARCOAL,TRIM1#

main69205-30140-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69205-30140-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main69205-30140-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30140-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main69206-30140-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69206-30140-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main69206-30140-E0iGS171,JKS175,JZS17#,UZS17#200108-200706

SANDAL WOOD,TRIM0#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30280iGS171,JZS17#,UZS17#199909-200108

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iGS171,JZS17#,UZS17#199909-200108

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30260iGS171,JZS17#,UZS17#199909-200108

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69297-30030-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main69297-30030-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69297-30030-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main69297-30030-E0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69298-30030-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main69298-30030-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main69298-30030-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main69298-30030-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iGS171,JKS175,JZS17#,UZS17#200108

main69293-12040iGS171,JZS17#,UZS17#199909-200108

69310LOCK ASSY, FRONT DOOR, RH

main69030-3A050iJZS177,UZS17#200108-200406

main69030-3A060iGS171,JZS171,173,175,179199909-200108

69320LOCK ASSY, FRONT DOOR, LH

main69040-3A010iJZS177,UZS17#199909-200108

main69040-3A020iGS171,JZS171,173,175,179199909-200108

main69040-3A090iGS171,JKS175,JZS171,173,175,179200108

main69040-3A100iJZS177,UZS17#200108-200406

69391ACOVER, FRONT DOOR LOCK, OUTER RH

main69391-30050iGS171,JZS17#,UZS17#199909-200108

69392COVER, FRONT DOOR LOCK, OUTER LH

main69392-30050iGS171,JZS17#,UZS17#199909-200108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-51010×2iGS171,JZS17#,UZS17#199909-200108

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-30020×2iGS171,JZS17#,UZS17#199909-200108

69719CUSHION, DOOR LOCK CONTROL

main69719-30010×4iGS171,JKS175,JZS17#,UZS17#200108-200706

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050×2iGS171,JZS17#,UZS17#199909-200108

9011906146

main90119-06146

9014860022

main90148-60022

9014880027

main90148-80027

9015860008

main90158-60008

9015940202

main90159-40202

9165140612

main91651-40612

22 parts on this diagram · 1 diagram in section
