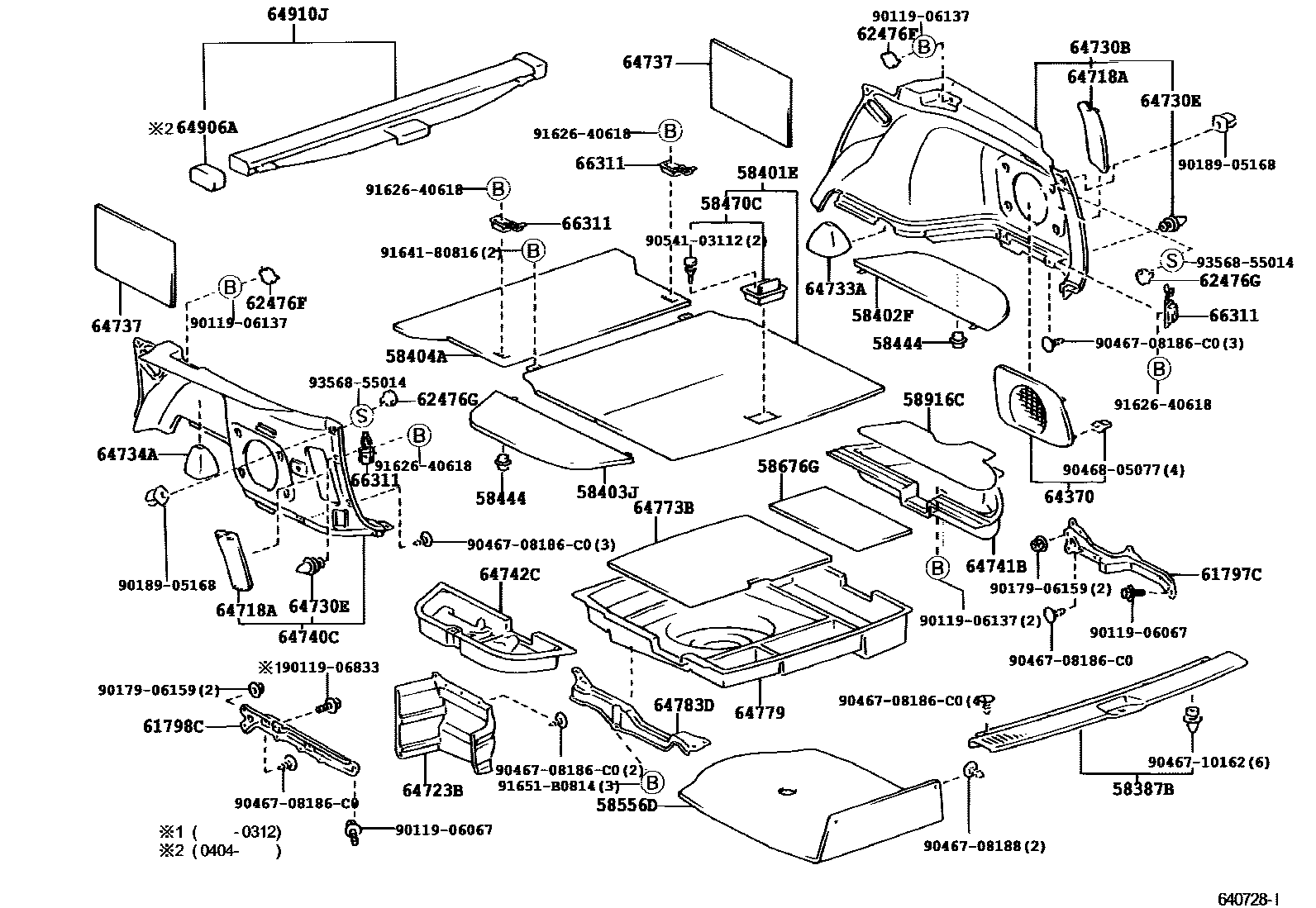

DECK BOARD & DECK TRIM COVER

0001 1 0002 1��(�-���-����� ���) 0003 1

58387BPLATE, REAR FLOOR FINISH

main58387-31010-A0iJZS171,173,175..WG199912-200108

IVORY,TRIM0#

sub58387-31010

main58387-31010-B0iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DK.CHARCOAL,TRIM1#

sub58387-31010

main58387-31010-B1iJZS171,175..WG..ROY199912-200108

MD.CHARCOAL,TRIM1#

sub58387-31010

main58387-31020-A0iGS171,JZS171,173,175..WG200108-200706

IVORY,TRIM0#

sub58387-31020

main58387-31020-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub58387-31020

58401EBOARD SUB-ASSY, DECK

main58410-31020-A0iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub58410-31020

main58410-31020-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHARCOAL,TRIM1#

sub58410-31020

main58410-31020-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

sub58410-31020

main58410-31020-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub58410-31020

58402FBOARD SUB-ASSY, REAR FLOOR, NO.2

main58402-31010-A0iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub58402-31010

main58402-31010-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHARCOAL,TRIM1#

sub58402-31010

main58402-31010-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

sub58402-31010

main58402-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub58402-31010

58403JBOARD SUB-ASSY, REAR FLOOR, NO.3

main58403-31010-A0iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub58403-31010

main58403-31010-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHARCOAL,TRIM1#

sub58403-31010

main58403-31010-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

sub58403-31010

main58403-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub58403-31010

58404ABOARD SUB-ASSY, REAR FLOOR, NO.4

main58404-31010-A0iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub58404-31010

main58404-31010-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHARCOAL,TRIM1#

sub58404-31010

main58404-31010-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

sub58404-31010

main58404-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub58404-31010

58444CUSHION, DECK BOARD, NO.2

main58444-31010iJZS171,173,175..WG199912-200108

58470CHANDLE ASSY, DECK BOARD

main58470-33010-A0iJZS171,173,175..WG199912-200706

IVORY,TRIM0#

sub58470-33010

main58470-33010-B2iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DK.CHARCOAL,TRIM1#

sub58470-33010

main58470-33010-B3iJZS171,175..WG..ROY199912-200108

MD.CHARCOAL,TRIM1#

sub58470-33010

main58470-33010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub58470-33010

58556DSILENCER, REAR FLOOR

main58556-31010iJZS171,173,175..WG199912-200108

58676GPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-31010iJZS171,173,175..WG199912-200108

58916CMAT, BOX BOTTOM

main58916-31010iJZS171,173,175..WG199912-200108

61797CSTAY, REAR WHEEL OPENING, REAR RH

main61797-31010iJZS171,173,175..WG199912-200108

61798CSTAY, REAR WHEEL OPENING, REAR LH

main61798-31010iGS171,JZS171,173,175..WG199912-200108

sub61798-31020

main61798-31020iJZS171,173,175..WG199912-200312

62476FCAP, ROOF SIDE INNER GARNISH, NO.1

main62476-31010-B0iJZS171,173,175..WG199912-200108

DK.CHARCOAL,TRIM1#

sub62476-31010

main62476-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub62476-31010

main62476-31010-E0iJZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub62476-31010

62476GCAP, ROOF SIDE INNER GARNISH, NO.2

main62476-31020-B0iJZS171,173,175..WG199912-200108

DK.CHARCOAL,TRIM1#

sub62476-31020

main62476-31020-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub62476-31020

main62476-31020-E0iJZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub62476-31020

64370GRILLE ASSY, REAR SPEAKER

main64370-31010-A0iGS171,JZS171,173,175..WG199912-200706

IVORY,TRIM0#

main64370-31010-B0iJZS171,175..WG..ROY199912-200108

MEDIUM CHACOAL,TRIM1#

main64370-31010-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DARK CHARCOAL,TRIM1#

main64370-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-31020-A1iGS171,JZS171,173,175..WG199912-200706

sub64718-31020

main64718-31020-B2iJZS171,175..WG..ROY199912-200108

sub64718-31020

main64718-31020-B3iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

sub64718-31020

main64718-31020-C0iGS171,JZS171,173,175..WG200108-200706

sub64718-31020

main64718-31030-A1iJZS171,173,175..WG199912-200706

sub64718-31030

main64718-31030-B2iJZS171,175..WG..ROY199912-200108

sub64718-31030

main64718-31030-B3iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

sub64718-31030

main64718-31030-C0iGS171,JZS171,173,175..WG200108-200706

sub64718-31030

64723BCOVER, LUGGAGE COMPARTMENT TRIM SIDE, LOWER

main64723-31010iGS171,JZS171,173,175..WG199912-200108

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-31010-B0iJZS171..WG..ROY199912-200108

DK.CHARCOAL,TRIM1#

sub64730-31010

main64730-31010-B1iJZS171,173..WG..(ATH,ATHE,ATHV)199912-200108

DK.CHARCOAL,TRIM1#

sub64730-31010

main64730-31010-C0iGS171,JZS171,173..WG200108-200706

BLACK,TRIM2#

sub64730-31010

main64730-31010-E0iGS171,JZS171,173..WG199912-200706

SANDAL WOOD,TRIM0#

sub64730-31010

main64730-31020-B0iJZS171,175..WG..ROY199912-200108

sub64730-31020

main64730-31020-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

sub64730-31020

main64730-31020-C0iGS171,JZS171,173,175..WG200108-200706

sub64730-31020

main64730-31020-E0iGS171,JZS171,173,175..WG199912-200706

sub64730-31020

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161iJZS171,173,175..WG199912-200108

64733APAD, DECK TRIM SIDE, NO.1

main64733-31010iJZS171,173,175..WG199912-200108

64734APAD, DECK TRIM SIDE, NO.2

main64734-31010iJZS171,173,175..WG199912-200108

64737PAD, DECK TRIM SIDE SILENCER

main64737-31010iJZS171,173,175..WG199912-200312

main64737-31010iGS171,JZS171,173,175..WG200108

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-31050-B0iJZS171,175..WG..ROY199912-200108

DK.CHARCOAL,TRIM1#

sub64740-31050

main64740-31050-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DK.CHARCOAL,TRIM1#

sub64740-31050

main64740-31050-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

sub64740-31050

main64740-31050-E0iGS171,JZS171,173,175..WG199912-200706

SANDAL WOOD,TRIM0#

sub64740-31050

main64740-31060-B0iJZS171,175..WG..ROY199912-200108

sub64740-31060

main64740-31060-B1iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

sub64740-31060

main64740-31060-C0iGS171,JZS171,173,175..WG200108-200312

sub64740-31060

main64740-31060-E0iJZS171,173,175..WG199912-200312

sub64740-31060

64741BBOX, DECK SIDE TRIM, RH

main64741-31010iJZS171,173,175..WG199912-200108

64742CBOX, DECK SIDE TRIM, LH

main64742-31010iJZS171,173,175..WG199912-200108

64773BPAD, SPARE WHEEL COVER, NO.2

main64773-31010iJZS171,173,175..WG199912-200108

64779TRAY, SPARE WHEEL COVER

main64779-31010iJZS171,173,175..WG199912-200108

64783DREINFORCEMENT, SPARE WHEEL COVER

main64783-31010iJZS171,173,175..WG199912-200108

64906AHOLDER SUB-ASSY, TONNEAU COVER RETRACT, LH

main64906-31011-C0iJZS171,173,175200404-200706

BLACK,TRIM2#

64910JCOVER ASSY, TONNEAU

main64910-31020-B0iJZS171,173,175..WG199912-200004

DK.CHARCOAL,TRIM1#

sub64910-31021

main64910-31020-E0iJZS171,173,175..WG199912-200004

SANDAL WOOD,TRIM0#

sub64910-31021

main64910-31021-B0iJZS171,173,175..WG200004-200108

DK.CHARCOAL,TRIM1#

sub64910-31022

main64910-31021-C0iGS171,JZS171,173,175..WG200108-200109

BLACK,TRIM2#

sub64910-31022

main64910-31021-E0iJZS171,173,175..WG200004-200109

SANDAL WOOD,TRIM0#

sub64910-31022

main64910-31022-C0iGS171,JZS171,173,175..WG200109-200403

BLACK,TRIM2#

sub64910-31023

main64910-31022-E0iGS171,JZS171,173,175..WG200109-200403

SANDAL WOOD,TRIM0#

sub64910-31023

main64910-31023-C0iJZS171,173,175200404-200706

BLACK,TRIM2#

66311HOOK, ROPE

main66310-31010-A0iGS171,JZS171,173,175..WG199912-200706

IVORY,TRIM0#

main66310-31010-B0iJZS171,173,175..WG..(ATH,ATHE,ATHG,ATHV)199912-200108

DK.CHARCOAL,TRIM1#

main66310-31010-B1iJZS171,175..WG..ROY199912-200108

MD.CHARCOAL,TRIM1#

main66310-31010-C0iGS171,JZS171,173,175..WG200108-200706

BLACK,TRIM2#

9011906067

main90119-06067

9011906137

main90119-06137

9011906833

main90119-06833

9017906159

main90179-06159

9018905168

main90189-05168

9046708186C0

main90467-08186C0

9046708188

main90467-08188

9046710162

main90467-10162

9046805077

main90468-05077

9054103112

main90541-03112

9162640618

main91626-40618

9164180816

main91641-80816

91651B0814

main91651-B0814

9356855014

main93568-55014

45 parts on this diagram · 3 diagrams in section
