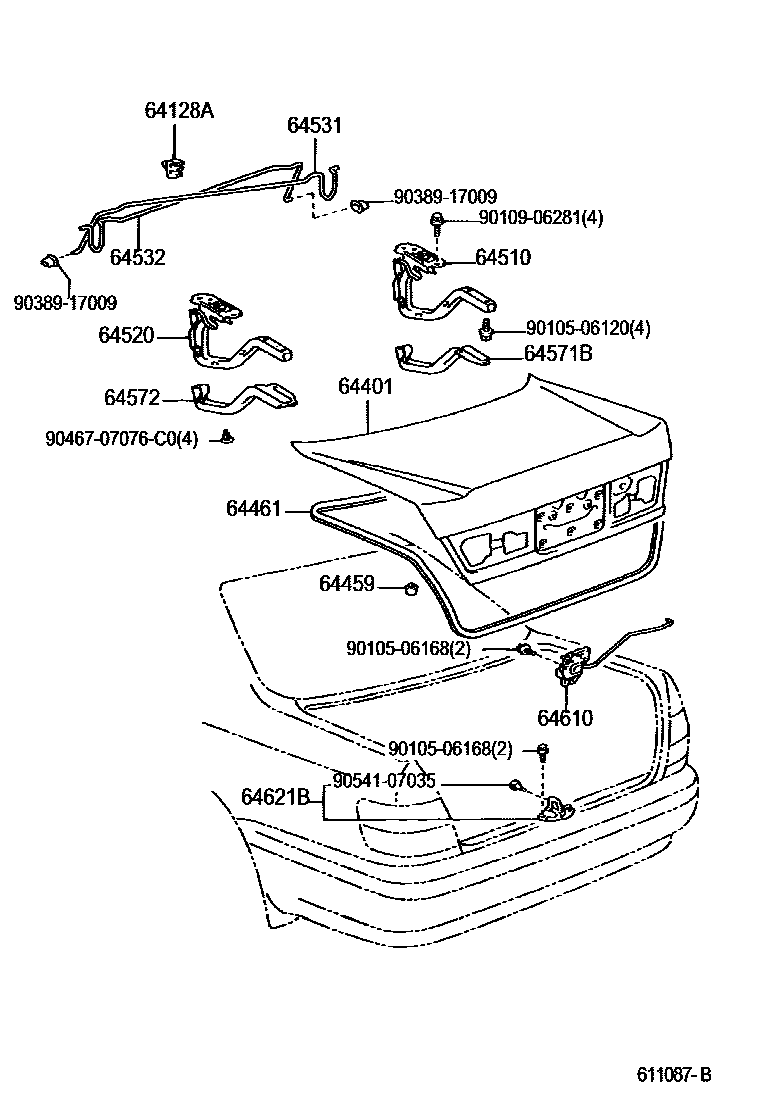

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-30050iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main90469-08002iJZS177,UZS17#200108-200406

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-3A100iGS171,JZS171,173,175,179..SED199909-200107

main64401-3A102iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main64401-3A110iJZS177,UZS17#200108-200406

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09079×2iGS171,JZS17#,UZS17#..SED200010-200108

main90541-10027×2iGS171,JZS17#,UZS17#..SED199909-200010

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30280iGS171,JZS171,173,175,179..SED199909-200108

main64461-30300iJZS177,UZS17#200108-200406

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30350iGS171,JZS171,173,175,179..SED199909-200108

main64510-30360iJZS177,UZS17#200108-200406

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30120iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main64520-30170iJZS177,UZS17#200108-200406

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30270iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main64531-30280iJZS177,UZS17#199909-200108

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30270iGS171,JZS171,173,175,179..SED199909-200108

main64532-30280iJZS177,UZS17#199909-200108

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30080-C0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG; JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

BLACK,TRIM0#,1#; BLACK,TRIM0#,2#

main64571-30090-C0iJZS177,UZS17#199909-200108

BLACK,TRIM0#,1#

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30040-C0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG; JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

BLACK,TRIM0#,1#; BLACK,TRIM0#,2#

main64572-30050-C0iJZS177,UZS17#199909-200108

BLACK,TRIM0#,1#

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30160-C0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG; JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

BLACK,TRIM0#,1#; BLACK,TRIM0#,2#

main64600-30170-C0iJZS177,UZS17#200108-200406

BLACK,TRIM0#,1#

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-30110iGS171,JKS175,JZS17#,UZS17#..SED200108-200406

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9038917009

main90389-17009

9046707076C0

main90467-07076C0

9054107035

main90541-07035

18 parts on this diagram · 2 diagrams in section
