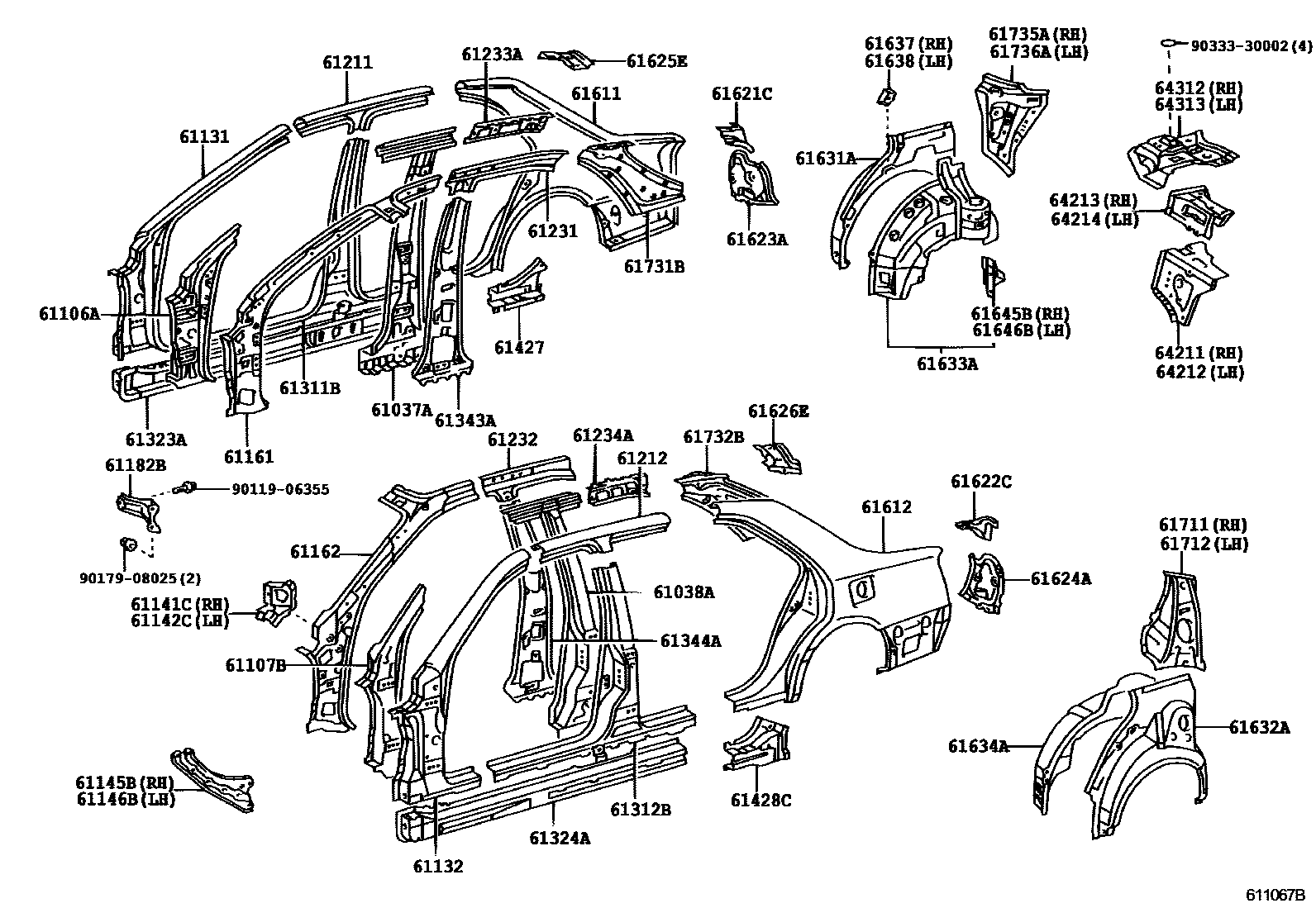

SIDE MEMBER

0001 1���� ���� 0002 1���� ���� 0003 1���� ���� 0004 1��� ����� 0005 1��� ����� 0006 1��� �����

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61047-30900iGS171,JZS17#,UZS17#..SED199909-200108

main61047-31900iJZS171,173,175..WG199912-200108

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61048-30900iJZS177,UZS17#200108-200406

main61048-31900iGS171,JZS171,173,175..WG200108

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-30140iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61106-31010iGS171,JZS171,173,175..WG200108

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-30120iGS171,JZS17#,UZS17#..SED199909-200108

main61107-31010iJZS171,173,175..WG199912-200108

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-30260iGS171,JZS171,173,175,179..SED199909-200108

main61131-30270iJZS177,UZS17#200108-200406

main61131-31010iJZS171,173,175..WG199912-200108

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-30270iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61132-30280iJZS177,UZS17#199909-200108

main61132-31010iJZS171,173,175..WG199912-200108

61141CEXTENSION, FRONT PILLAR, UPPER INNER RH

main61141-30140iGS171,JZS171,173,175,179199909-200108

main61141-30150iJZS177,UZS17#200108-200406

61142CEXTENSION, FRONT PILLAR, UPPER INNER LH

main61142-30140iGS171,JZS171,173,175,179199909-200108

main61142-30141iGS171,JKS175,JZS171,173,175,179..SED200109-200312

main61142-30150iJZS177,UZS17#200108-200406

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61015-30040iJZS177,UZS17#199909-200108

main61145-30050iGS171,JZS171,173,175,179199909-200108

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61016-30040iJZS177,UZS17#199909-200108

main61146-30050iGS171,JKS175,JZS171,173,175,179..SED200108-200312

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-30290iGS171,JKS175,JZS17#,UZS17#..SED200108-200406

main61161-31900iJZS171,173,175..WG199912-200108

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-30290iGS171,JZS17#,UZS17#..SED199909-200108

main61162-31900iJZS171,173,175..WG199912-200108

61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH

main61182-30060iGS171,JZS17#,UZS17#199909-200108

61211RAIL, ROOF SIDE, OUTER RH

main61211-30250iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61211-30260iJZS177,UZS17#199909-200108

main61211-31020iJZS171,173,175..WG199912-200108

61212RAIL, ROOF SIDE, OUTER LH

main61212-30250iGS171,JZS171,173,175,179..SED199909-200108

main61212-30260iJZS177,UZS17#199909-200108

main61212-31020iJZS171,173,175..WG199912-200108

61231RAIL, ROOF SIDE, INNER RH

main61231-30370iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61231-30380iJZS177,UZS17#199909-200108

main61231-31010iGS171,JZS171,173,175..WG200108

61232RAIL, ROOF SIDE, INNER LH

main61232-30370iGS171,JZS171,173,175,179..SED199909-200108

main61232-30380iJZS177,UZS17#200108-200406

main61232-31010iGS171,JZS171,173,175..WG200108

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-30020iGS171,JZS171,173,175,179..SED199909-200108

main61233-30030iJZS177,UZS17#199909-200108

main61233-31010iGS171,JZS171,173,175..WG200108

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-30020iGS171,JZS171,173,175,179..SED199909-200108

main61234-30030iJZS177,UZS17#200108-200406

main61234-31010iGS171,JZS171,173,175..WG200108

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30220iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61311-30230iJZS177,UZS17#199909-200108

main61311-31010iGS171,JZS171,173,175..WG200108

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30310iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61312-30320iJZS177,UZS17#199909-200108

main61312-31010iGS171,JZS171,173,175..WG200108

61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH

main61401-30240iGS171,JZS171,173,175,179..SED199909-200008

main61401-30241iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61401-30250iJZS177,UZS17#199909-200008

main61401-30251iJZS177,UZS17#200108-200406

main61401-31020iJZS171,173,175..WG199912-200008

main61401-31021iGS171,JZS171,173,175..WG200108

61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH

main61402-30240iGS171,JZS171,173,175,179..SED199909-200008

main61402-30241iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61402-30250iJZS177,UZS17#199909-200008

main61402-30251iJZS177,UZS17#200008-200108

main61402-31020iJZS171,173,175..WG199912-200008

main61402-31021iGS171,JZS171,173,175..WG200108

61343APILLAR, CENTER BODY, INNER RH

main61343-30200iGS171,JZS17#,UZS17#..SED199909-200008

main61343-30201iGS171,JZS17#,UZS17#..SED200008-200108

main61343-31010iJZS171,173,175..WG199912-200008

main61343-31011iJZS171,173,175..WG200008-200108

61344APILLAR, CENTER BODY, INNER LH

main61344-30210iGS171,JZS17#,UZS17#..SED199909-200008

main61344-30211iGS171,JKS175,JZS17#,UZS17#..SED200108-200406

main61344-31010iJZS171,173,175..WG199912-200008

main61344-31011iGS171,JZS171,173,175..WG200108

61427REINFORCEMENT, ROCKER PANEL, NO.5 RH

main61427-30060iGS171,JZS171,173,175,179199909-200108

main61427-30070iJZS177,UZS17#199909-200108

61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH

main61428-30110iGS171,JKS175,JZS171,173,175,179200108

main61428-30120iJZS177,UZS17#200108-200406

61611PANEL, QUARTER, RH

main61611-30820iGS171,JZS171,173,175,179..SED199909-200108

main61611-30830iJZS177,UZS17#200108-200406

main61611-31040iGS171,JZS171,173,175..WG200108

61612PANEL, QUARTER, LH

main61612-31040iJZS171,173,175..WG199912-200108

main61612-3A210iGS171,JZS171,173,175,179..SED199909-200108

main61612-3A220iJZS177,UZS17#199909-200108

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30210iJZS177,UZS17#199909-200108

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30200iJZS177,UZS17#199909-200108

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-30900iGS171,JZS171,173,175,179..SED199909-200108

main61623-30901iJZS177,UZS17#200108-200406

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-30900iGS171,JZS171,173,175,179..SED199909-200108

main61624-30901iJZS177,UZS17#199909-200108

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-30050iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61625-30060iJZS177,UZS17#199909-200108

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-30050iGS171,JZS171,173,175,179..SED199909-200108

main61626-30060iJZS177,UZS17#199909-200108

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30170iGS171,JZS171,173,175,179..SED199909-200108

main61631-30180iJZS177,UZS17#199909-200108

main61631-31020iJZS171,173,175..WG199912-200108

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30170iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61632-30180iJZS177,UZS17#199909-200108

main61632-31020iGS171,JZS171,173,175..WG200108

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-30190iGS171,JZS171,173,175,179..SED199909-200108

main61607-30200iUZS171,173200108-200406

main61607-30220iJZS177,UZS175199909-200108

main61607-31020iJZS171,173,175..WG199912-200108

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-30180iGS171,JZS171,173,175,179..SED199909-200108

main61608-30190iUZS171,173200108-200406

main61608-30210iJZS177,UZS175199909-200108

main61608-31010iJZS171,173,175..WG199912-200108

61637BRACE, QUARTER WHEEL HOUSE, RH

main61637-30110×2iJKS175,JZS171,175,179..SED..(ATHG,ATHV,ROY,ROYG)200108-200312

main61637-31020iJZS171,173,175..WG..(D4,TWC)200108

61638BRACE, QUARTER WHEEL HOUSE, LH

main61637-30110×2iJZS177,UZS17#200108-200406

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-30050iJZS177,UZS17#199909-200108

main61645-51010iGS171,JZS171,173,175,179199909-200108

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-30050iJZS177,UZS17#199909-200108

main61646-51010iGS171,JZS171,173,175,179199909-200108

61711PANEL, ROOF SIDE, OUTER RH

main61711-30110iGS171,JZS171,173,175,179..SED199909-200108

main61711-30120iJZS177,UZS17#199909-200108

main61711-31010iGS171,JZS171,173,175..WG200108

61712PANEL, ROOF SIDE, OUTER LH

main61712-30110iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61712-30120iJZS177,UZS17#199909-200108

main61712-31010iGS171,JZS171,173,175..WG200108

61731BPANEL, ROOF SIDE, INNER RH

main61731-30190iGS171,JZS171,173,175,179..SED199909-200108

main61731-30200iJZS177,UZS17#199909-200108

main61731-31010iGS171,JZS171,173,175..WG200108

61732BPANEL, ROOF SIDE, INNER LH

main61732-30200iGS171,JKS175,JZS171,173,175,179..SED200108-200312

main61732-30210iJZS177,UZS17#199909-200108

main61732-31010iGS171,JZS171,173,175..WG200108

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-30050iGS171,JZS171,173,175,179..SED199909-200108

main61735-30060iJZS177,UZS17#199909-200108

main61735-31010iJZS171,173,175..WG199912-200108

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-30050iGS171,JZS171,173,175,179..SED199909-200108

main61736-30060iJZS177,UZS17#199909-200108

main61736-31010iJZS171,173,175..WG199912-200108

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30170iJZS177,UZS17#199909-200108

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30160iJZS177,UZS17#199909-200108

64213EXTENSION, PACKAGE TRAY STRAINER, RH

main64213-30090iJZS177,UZS17#200108-200406

64214EXTENSION, PACKAGE TRAY STRAINER, LH

main64214-30090iJZS177,UZS17#200108-200406

64312BRACKET, PACKAGE TRAY, RH

main64312-30220iJZS177,UZS17#199909-200108

main64312-30230iJZS177,UZS175..A200108-200406

main64312-30905iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)199909-200004

main64312-30906iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)199909-200004

main64312-30907iGS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)200004-200108

main64312-30908iGS171,JKS175,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)200108-200312

64313BRACKET, PACKAGE TRAY, LH

main64313-30220iJZS177,UZS17#199909-200108

main64313-30230iJZS177,UZS175..A199909-200108

main64313-30905iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)199909-200004

main64313-30906iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)199909-200004

main64313-30907iGS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX); JZS175..ROYG200004-200108

main64313-30908iGS171,JKS175,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)200108-200312

9011906355

main90119-06355

9017908025

main90179-08025

9033330002

main90333-30002

58 parts on this diagram · 6 diagrams in section
