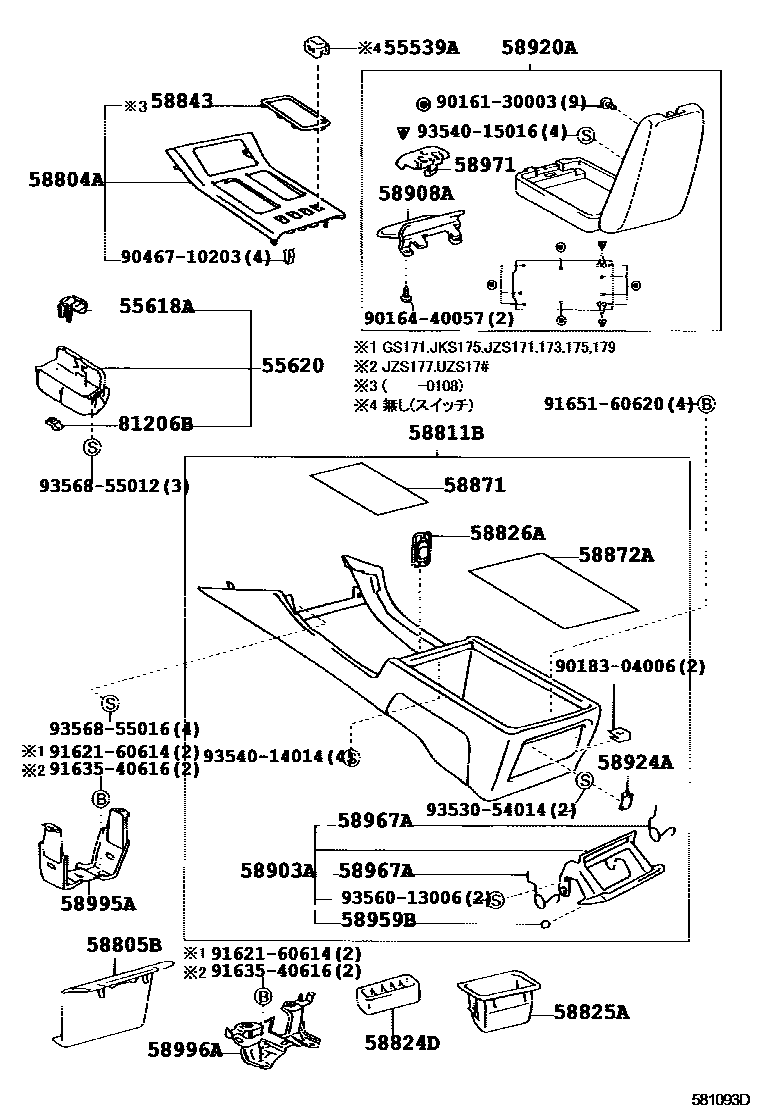

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55539-30160-A0iJZS177,UZS173,175199909-200706

IVORY,TRIM0#

main55539-30160-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23

main55539-30160-B0iJZS177,UZS173,175199909-200406

MEDIUM CHARCOAL,TRIM1#

main55539-30160-B1iJZS173..WG200108-200706

DARK CHARCOAL,TRIM2#

main55539-30160-B1iJZS171,173..ATH,ATHE;JZS171,175..SED..(ATHG,ATHV)199909-200108

DARK CHARCOAL,TRIM1#

55618AHOLDER, CONSOLE BOX CUP

main55618-30030iJZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179199909-200406

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-30080-A0iGS171,JZS17#,UZS17#199909-200108

IVORY,TRIM0#

sub55620-30090

main55620-30080-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

MEDIUM CHARCOAL,TRIM1#

sub55620-30090

main55620-30080-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DARK CHARCOAL,TRIM1#

sub55620-30090

main55620-30090-A0iJZS171,173,175..WG..(D4,TWC)200108-200706

IVORY,TRIM0#

main55620-30090-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23

main55620-30090-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200406

MEDIUM CHARCOAL,TRIM1#

main55620-30090-B1iGS171,JZS171..WG..4FC;JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200706

DARK CHARCOAL,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-30380-A0iJZS171,175,177,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG)199909-200108

sub58804-30430

main58804-30380-B0iJZS171,175,177,UZS17#..SED..(A,C,ROY,ROYG)199909-200108

sub58804-30430

main58804-30380-B1iJZS175..SED..ATHG199909-200108

sub58804-30430

main58804-30390-A0iGS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX199909-200108

sub58804-30440

main58804-30390-B0iGS171,JZS17#,UZS175..A,ROY,ROYEX199909-200108

sub58804-30440

main58804-30390-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

sub58804-30440

main58804-30430-A0iJZS177,UZS17#200108-200406

main58804-30430-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23

main58804-30430-B0iJKS175,JZS171,175..ROY,ROYG200108-200406

main58804-30430-B1iJZS171,175..SED..(ATHG,ATHV)200108-200312

main58804-30440-A0iJZS177,UZS175..A200108-200706

main58804-30440-B0iJZS177,UZS175..A200108-200406

main58804-30440-B1iGS171,JZS171..WG..4FC;JZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200706

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-30140iGS171,JZS17#,UZS17#199909-200108

58811BBOX, CONSOLE

main58811-30320-A0iGS171,JKS175,JZS17#,UZS17#199909-200706

IVORY,TRIM0#

sub58811-30320

main58811-30320-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

sub58811-30320

main58811-30320-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

sub58811-30320

main58811-30320-B1iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200406

MD.CHARCOAL,TRIM1#

sub58811-30320

main58811-30320-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

sub58811-30320

main58811-30320-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

sub58811-30320

58824DBOX, CONSOLE COIN

main58824-30040iGS171,JZS17#,UZS17#199909-200108

58825APOCKET, CONSOLE BOX

main58825-30120iGS171,JZS171,173,175..SED..(ATH,ATHG,ATHV,ROYEX)199909-200312

58826APOCKET, CONSOLE BOX, LOWER

main58826-30140iGS171,JZS17#,UZS17#199909-200108

58843BEZEL, SHIFTING HOLE

main58843-30110iGS171,JZS17#,UZS17#199909-200108

58871CUSHION, CONSOLE BOX

main58871-30060iGS171,JZS17#,UZS17#199909-200108

58872ACUSHION, CONSOLE BOX, NO.2

main58872-30030iGS171,JKS175,JZS17#,UZS17#199909-200108

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-30190-A0iGS171,JKS175,JZS17#,UZS17#199909-200706

IVORY,TRIM0#

sub58903-30190

main58903-30190-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

sub58903-30190

main58903-30190-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

sub58903-30190

main58903-30190-B1iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200406

MD.CHARCOAL,TRIM1#

sub58903-30190

main58903-30190-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

sub58903-30190

main58903-30190-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

sub58903-30190

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-30050iGS171,JKS175,JZS17#,UZS17#199909-200108

58920AARMREST ASSY, REAR CONSOLE

main58920-30040-A0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200312

main58920-30040-A0iGS171,JZS171,173..ROYEX200104-200107

main58920-30040-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200312

main58920-30040-B0iGS171,JZS171,173..ROYEX200104-200107

main58920-30050-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main58920-30050-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main58920-30060-A0iGS171,JZS171,173..ROYEX199909-200312

main58920-30060-B0iGS171,JZS171,173..ROYEX199909-200312

main58920-30070-A0iJZS177,UZS17#199909-200108

main58920-30070-B0iJZS177,UZS17#199909-200108

main58920-30080-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main58920-30080-A0iUZS175;JZS175,177,UZS171,173..ATHG,C,ROY,ROYG199909-200406

main58920-30080-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main58920-30080-C0iJZS171,175..ATHG,ATHV200108-200706

main58920-30090-A0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main58920-30090-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

main58920-30100-A0iJZS177,UZS17#200108-200406

main58920-30100-B0iJZS177,UZS17#200108-200406

58924APANEL, CONSOLE REAR END, NO.2

main58924-30100-A0iGS171,JZS17#,UZS17#199909-200706

IVORY,TRIM0#

sub58924-30100

main58924-30100-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

sub58924-30100

main58924-30100-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

sub58924-30100

main58924-30100-B1iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200406

MD.CHARCOAL,TRIM1#

sub58924-30100

main58924-30100-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

sub58924-30100

main58924-30100-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

sub58924-30100

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16020iGS171,JZS17#,UZS17#199909-200108

58967ASPRING, CONSOLE DOOR STOPPER

main58967-30050iGS171,JZS17#,UZS17#199909-200108

main58967-30090iGS171,JZS17#,UZS17#199909-200108

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-30080-A0iGS171,JKS175,JZS17#,UZS17#199909-200706

IVORY,TRIM0#

sub58971-30080

main58971-30080-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

sub58971-30080

main58971-30080-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

sub58971-30080

main58971-30080-B1iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200406

MD.CHARCOAL,TRIM1#

sub58971-30080

main58971-30080-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

sub58971-30080

main58971-30080-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

sub58971-30080

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-30180iGS171,JZS171,173,175,179199909-200108

main58995-30190iJZS177,UZS17#199909-200406

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-30110iGS171,JKS175,JZS171,173,175,179199909-200108

main58996-30120iJZS177,UZS17#199909-200406

81206BLAMP SUB-ASSY, CONSOLE BOX

main81206-30020iGS171,JZS17#,UZS17#199909-200406

9016130003

main90161-30003

9016440057

main90164-40057

9018304006

main90183-04006

9046710203

main90467-10203

9162160614

main91621-60614

9163540616

main91635-40616

9165160620

main91651-60620

9353054014

main93530-54014

9354014014

main93540-14014

9354015016

main93540-15016

9356013006

main93560-13006

9356855012

main93568-55012

9356855016

main93568-55016

35 parts on this diagram · 3 diagrams in section
