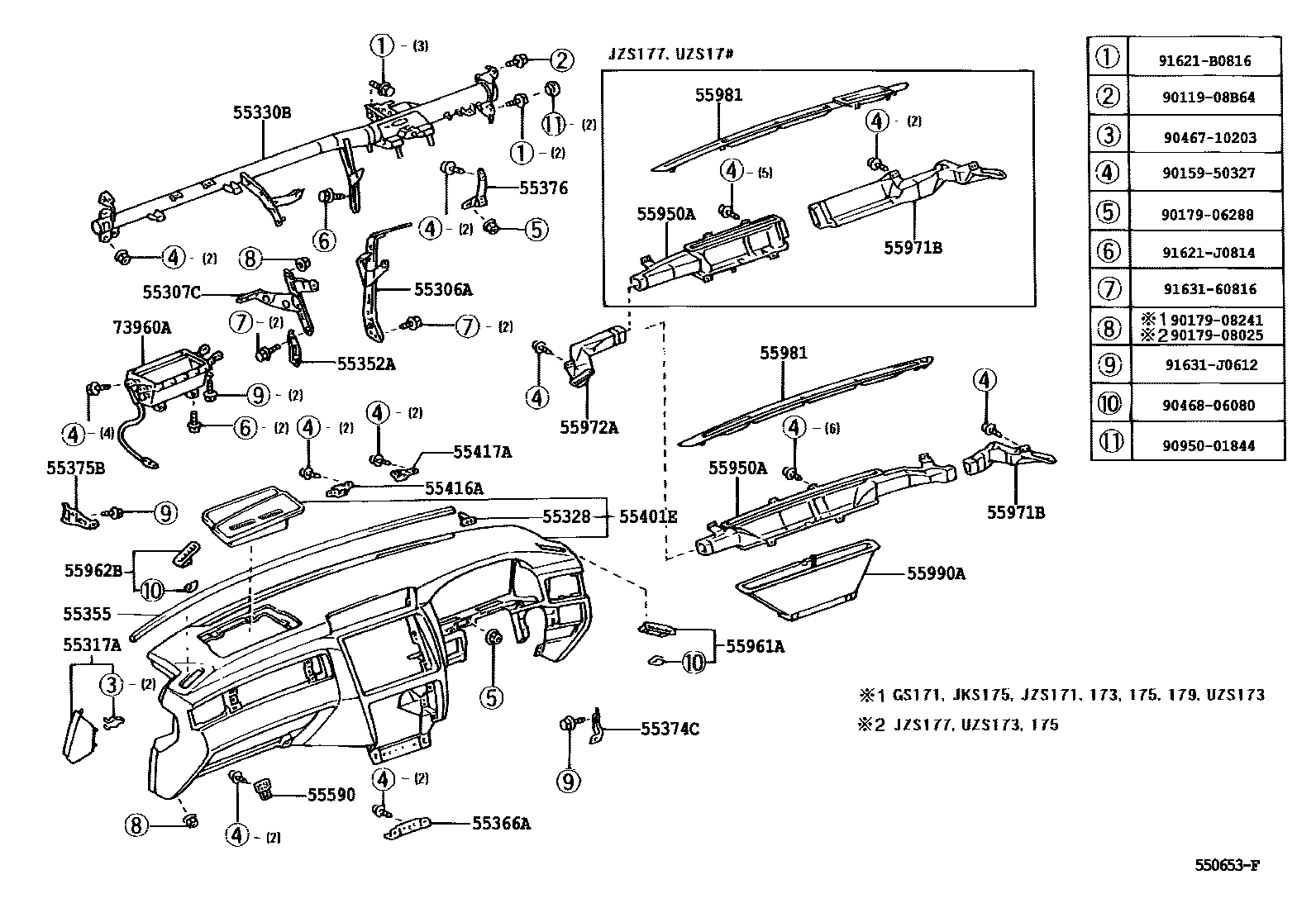

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30310iUZS173200108-200406

main55306-30320iJZS177,UZS171,175200108-200406

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30320iJZS171,173,175..WG..(D4,TWC)200108

55317APANEL, INSTRUMENT SIDE, RH

main55317-30030-A0iGS171,JKS175,JZS17#,UZS17#200108-200706

IVORY,TRIM0#

main55317-30030-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main55317-30030-B1iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200406

MD.CHARCOAL,TRIM1#

main55317-30030-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

55328PIN, INSTRUMENT PANEL, NO.1

main55328-51020×2iGS171,JZS171,173,175,179199909-200108

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30240iGS171,JZS171,173,175,179199909-200108

main55330-30250iJZS177,UZS17#199909-200108

main55330-30260iGS171,JKS175,JZS171,173,175,179200108

main55330-30270iJZS177,UZS17#200108-200406

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-30250iGS171,JZS171,175199909-200108

main55352-30260iJZS173..WG200108

main55352-30270iJZS177,UZS171,175200108-200406

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30050×2iGS171,JKS175,JZS171,173,175,179200108-200401

main55355-30060×2iJZS177,UZS17#200108-200406

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-30250iGS171,JZS17#,UZS17#199909-200108

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30230iJZS171,173,175..WG..(D4,TWC)200108

main55374-30240iJZS177,UZS17#200108-200406

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30120iGS171,JZS171,173,175,179199909-200108

main55375-30130iJZS177,UZS17#199909-200108

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-30170iGS171,JKS175,JZS17#,UZS17#200108

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30600-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main55401-30600-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main55401-30600-E0iGS171,JZS171,173,175,179199909-200108

SANDAL WOOD,TRIM0#

main55401-30610-B0iJZS177,UZS17#199909-200108

DK.CHARCOAL,TRIM1#

main55401-30610-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main55401-30610-E0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06

main55401-30680-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

DK.CHARCOAL,TRIM1#

main55401-30680-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main55401-30680-E0iGS171,JKS175,JZS171,173,175,179200108-200706

SANDAL WOOD,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30150iGS171,JZS17#,UZS17#199909-200108

55417ARETAINER, METER HOOD, NO.2

main55417-30070iGS171,JZS17#,UZS17#199909-200108

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-30030iGS171,JZS17#,UZS17#199909-200108

55950ANOZZLE ASSY, DEFROSTER

main55950-30150iJZS171,173,175..WG..(D4,TWC)200108

main55950-30160iJZS177,UZS17#199909-200108

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-30130-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main55961-30130-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main55961-30130-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main55961-30130-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

55962BNOZZLE, SIDE DEFROSTER, LH

main55962-30110-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main55962-30110-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main55962-30110-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main55962-30110-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30150iGS171,JZS171,173,175,179199909-200108

main55971-30160iJZS177,UZS17#199909-200108

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30150iJZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179200108-200312

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30120-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main55981-30120-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main55981-30120-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main55981-30120-E0iGS171,JKS175,JZS171,173,175,179200108-200706

SANDAL WOOD,TRIM0#

main55981-30130-B1iJZS177,UZS17#199909-200108

DARK CHARCOAL,TRIM1#

main55981-30130-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main55981-30130-E1iJZS177,UZS17#200108-200406

SANDALWOOD,TRIM0#

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-30050iJZS171,173,175..WG..(D4,TWC)200108

main55990-30060iJZS177,UZS17#200108-200406

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30050iGS171,JZS17#,UZS17#199909-200108

9011908B64

main90119-08B64

9015950327

main90159-50327

9017906288

main90179-06288

9017908025

main90179-08025

9017908241

main90179-08241

9046710203

main90467-10203

9046806080

main90468-06080

9095001844

main90950-01844

91621B0816

main91621-B0816

91621J0814

main91621-J0814

9163160816

main91631-60816

91631J0612

main91631-J0612

35 parts on this diagram · 2 diagrams in section
