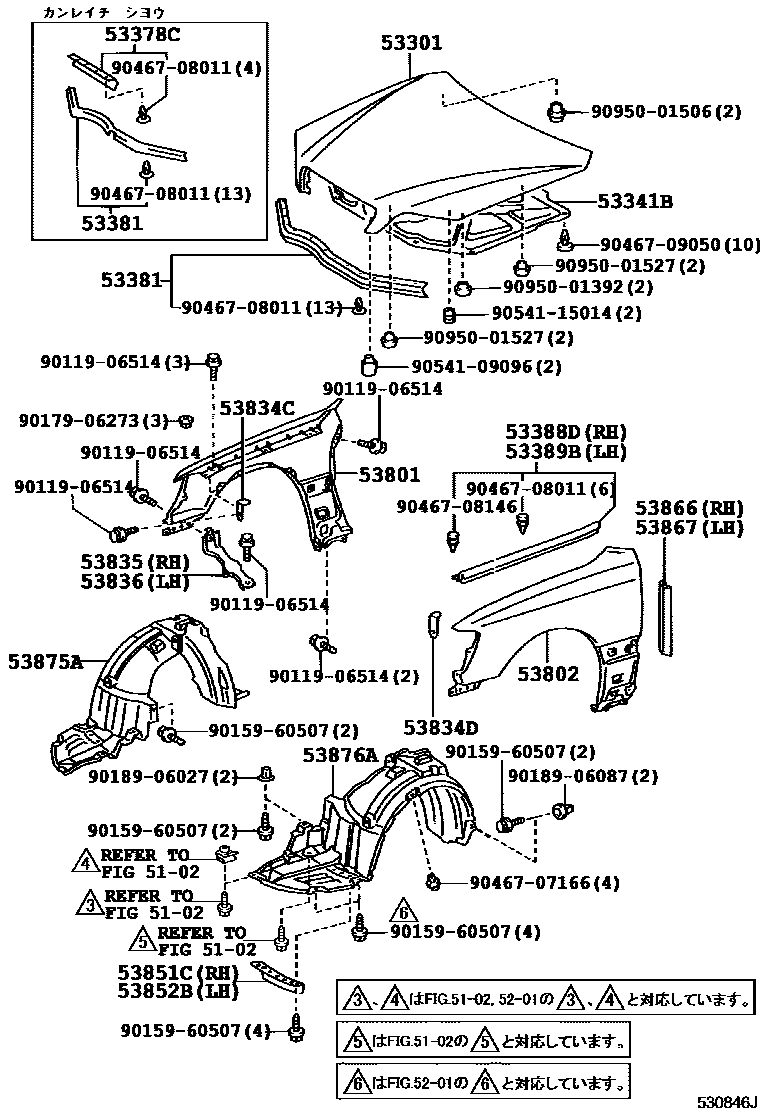

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

53301HOOD SUB-ASSY

main53301-30390iGS171,JZS171,173,175,179199909-200108

main53301-30400iJZS177,UZS17#199909-200108

53341BINSULATOR, HOOD

main53341-30200iJZS171,173,175..WG..(D4,TWC)200108

main53341-30230iJZS177,UZS17#200108-200406

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-30060iGS171,JZS171,173,175,179..D4,HTWC,TWC199909-200108

main53378-30070iJZS177,UZS17#200108-200406

main53378-30080iJZS171..TWT200108-200312

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30190iGS171,JKS175,JZS171,173,175,179200108

main53381-30200iJZS177,UZS17#200108-200406

main53381-30210iJZS177,UZS17#200108-200406

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30020iGS171,JZS171,173,175,179199909-200108

main53388-30030iJZS177,UZS17#199909-200108

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30020iGS171,JKS175,JZS171,173,175,179200108

main53389-30030iJZS177,UZS17#200108-200406

53801FENDER SUB-ASSY, FRONT RH

main53801-3F360iJZS177,UZS17#199909-200108

main53811-30A60iJZS17#200512-200706

main53811-3F190iGS171,JKS175,JZS171,173,175,179200108-200512

main53811-3F200iGS171,JZS171,173,175..WG200108-200304

53802FENDER SUB-ASSY, FRONT LH

main53802-3F180iJZS177,UZS17#200108-200406

main53812-30A40iJZS17#200512-200706

main53812-3F170iGS171,JKS175,JZS171,173,175,179200108-200512

main53812-3F180iGS171,JZS171,173,175..WG200108-200304

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-30110iJZS177,UZS17#199909-200104

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-30110iJZS177,UZS17#199909-200104

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-30080iGS171,JKS175,JZS171,173,175,179200108-200706

main53835-30090iJZS177,UZS17#200108-200406

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53835-30090iJZS177,UZS17#199909-200108

main53836-30040iGS171,JZS171,173,175,179199909-200108

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-30030iJZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYG199909-200108

main53851-30040iJZS177,UZS17#199909-200108

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30030iJZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYG199909-200108

main53852-30040iJZS177,UZS17#200108-200406

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30100iGS171,JZS17#,UZS17#199909-200108

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30100iGS171,JKS175,JZS17#,UZS17#200108

53875ALINER, FRONT FENDER, RH

main53805-30030iJZS177,UZS171,175200108-200406

main53805-30040iUZS173200108-200406

main53875-30160iGS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC200108

main53875-30170iJZS171..TWT200108-200110

main53875-30171iJZS171..TWT200110-200312

53876ALINER, FRONT FENDER, LH

main53806-30040iJZS177,UZS171,175200108-200406

main53806-30050iUZS173199909-200108

main53876-30120iGS171,JZS171,173,175,179199909-200108

main53876-30150iJKS175200108-200312

9011906514

main90119-06514

9015960507

main90159-60507

9017906273

main90179-06273

9018906027

main90189-06027

9018906087

main90189-06087

9046707166

main90467-07166

9046708011

main90467-08011

9046708146

main90467-08146

9046709050

main90467-09050

9054109096

main90541-09096

9054115014

main90541-15014

9095001392

main90950-01392

9095001506

main90950-01506

9095001527

main90950-01527

33 parts on this diagram · 3 diagrams in section
