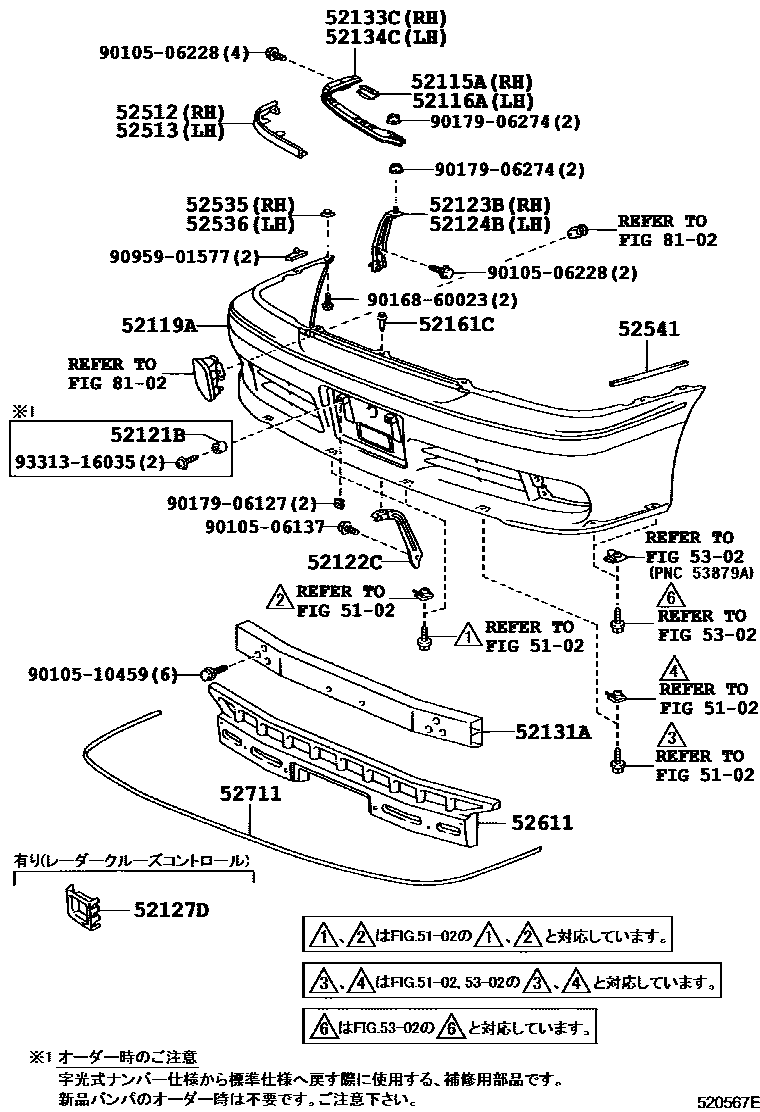

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14130×2iGS171,JZS17#,UZS17#199909-200108

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14130×2iGS171,JZS17#,UZS17#199909-200108

52119ACOVER, FRONT BUMPER

main52119-30440-A0iJZS177,UZS17#200108-200406

WHITE PEAL CS.,062

main52119-30440-B0iJZS177,UZS17#200108-200406

SILVER ME.,1C0

main52119-30440-C0iJZS177,UZS17#199909-200108

BLACK,202

main52119-30440-C1iJZS177,UZS17#200108-200406

BLACK,KA3

main52119-30440-D0iJZS177,UZS17#199909-200108

ROSE RED MC.,3M9

main52119-30440-D1iJZS177,UZS17#200108-200406

BORDEAUX MC.,3P2

main52119-30440-G1iJZS177,UZS17#200108-200406

BLACKISH GREEN MC.CC,6R5

main52119-30440-J0iJZS177,UZS17#199909-200108

DK.BLUE MC.,8L4

main52119-30440-J1iJZS177,UZS17#200108-200406

DARK BLUE MC.,8P8

main52119-30450-A0iJZS177,UZS171,175200108-200406

main52119-30450-B0iJZS177,UZS171,175200108-200406

main52119-30450-C0iUZS171,175199909-200108

main52119-30450-C1iJZS177,UZS171,175200108-200406

main52119-30450-D0iUZS171,175199909-200108

main52119-30450-D1iJZS177,UZS171,175200108-200406

main52119-30450-G1iJZS177,UZS171,175200108-200406

main52119-30450-J0iUZS171,175199909-200108

main52119-30450-J1iJZS177,UZS171,175200108-200406

main52119-30460-A0iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

SUPER WHITE 2,040

main52119-30460-A1iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

WHITE PEARL CS.,062

main52119-30460-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

SILVER ME.,1C0

main52119-30460-B1iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

SILVER ME.,2FQ

main52119-30460-B2iGS171,JZS171,173..ROYEX200104-200107

main52119-30460-C0iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

BLACK,202

main52119-30460-D0iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

ROSE RED MC.,3M9

main52119-30460-D1iJZS171,175..WG..ROY199912-200108

RED MC.,3N1

main52119-30460-G0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

BLACKISH GREEN MC.CC,6R5

main52119-30460-J0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

DK.BLUE MC.,8L4

main52119-30460-J1iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

DK.BLUE M.M.,2FR

main52119-30460-J2iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

GRAYISH BLUE ME.,8N6

main52119-30470-A0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

WHITE PEARL CS.,062

main52119-30470-A1iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

SUPER WHITE 2,040

main52119-30470-B0iGS171,JKS175,JZS171,173,175,179200108-200706

SILVER ME.,1C0

main52119-30470-B1iGS171,JKS175,JZS171,173,175,179200108-200706

SILVER ME.,2FQ

main52119-30470-B2iJZS171,175,179..ROY200112-200212

main52119-30470-B3iJZS17#200512-200706

SILVER ME.,1F7

main52119-30470-B4iJZS17#200512-200706

QUARTZ GRAY PM.,1G4

main52119-30470-C0iJZS171,173..ATH,ATHV200008-200107

main52119-30470-D0iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

ROSE RED MC.,3M9

main52119-30470-D1iGS171,JZS171,173,175..WG200108-200210

RED MC.,3N1

main52119-30470-D2iGS171,JZS171,173,175..WG200210-200706

BORDEAUX MC.,3P2

main52119-30470-D3iJZS171,173,175200312-200512

BLACKISH RED MC.,3R0

main52119-30470-D4iJZS17#200512-200706

GINGER RED M.M.,3R6

main52119-30470-G0iGS171,JKS175,JZS171,173,175,179200108-200706

BLACKISH GREEN MC.CC,6R5

main52119-30470-G1iGS171,JKS175,JZS171,173,175,179200108-200706

LT.GREEN M.M.,6S8

main52119-30470-J0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.BLUE MC.,8L4

main52119-30470-J1iJZS171,173,175..SED..(ATH,ATHG,ATHV)199909-200108

DK.BLUE M.M.,2FR

main52119-30470-J2iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

GRAYISH BLUE ME.,8N6

main52119-30470-J3iGS171,JKS175,JZS171,173,175,179200108-200706

DARK BLUE MC.,8P8

main52119-30470-J4iJZS171,173,175200312-200512

LT.BLUE M.M.,8S0

main52119-30470-J5iJZS17#200512-200706

DK.BLUE MC.,8S6

main52119-30480-A0iJZS175..ROY,ROYG200108-200312

main52119-30480-A1iJZS175..ROY,ROYG200108-200312

main52119-30480-B0iJZS175..ROY,ROYG200108-200312

main52119-30480-B1iJZS175..ROY,ROYG200108-200312

main52119-30480-C0iJZS175..ROY,ROYG200108-200312

main52119-30480-G0iJZS175..ROY,ROYG200108-200312

main52119-30480-G1iJZS175..ROY,ROYG200108-200312

main52119-30480-J0iJZS175..ROY,ROYG200108-200312

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main90560-11020×2iGS171,JZS17#,UZS17#199909-200108

52122CPLATE, FRONT BUMPER REINFORCEMENT, CENTER

main52122-30090iGS171,JZS171,173,175,179199909-200108

main52122-30100iJZS177,UZS17#199909-200108

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main52123-30130iGS171,JZS171,173,175,179199909-200108

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

main52124-30130iGS171,JZS171,173,175,179199909-200108

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-30110-B0iUZS171,175199909-200108

SILVER ME.,062

main52127-30110-C0iUZS171,175199909-200108

GRAY ME.,1C0

main52127-30110-D0iUZS171,175199909-200108

DK. GRAY M.,202

main52127-30110-E0iUZS171,175199909-200108

DARK GRAY ME.,6R5

main52127-30110-F0iUZS171,175199909-200108

GRAY ME.,3M9

main52127-30110-G0iUZS171,175199909-200108

DARK BLUE ME.,8L4

main52127-30120-A0iJZS175..ROY,ROYG200108-200312

SUPER WHITE 2,040

main52127-30120-A1iJZS175..ROY,ROYG200108-200312

WHITE PEARL CS.,062

main52127-30120-B0iJZS175..ROY,ROYG200108-200312

SILVER ME.,1C0

main52127-30120-B1iJZS175..ROY,ROYG200108-200312

SILVER ME.,2FQ

main52127-30120-C0iJZS175..ROY,ROYG200108-200312

BLACK,202

main52127-30120-G0iJZS175..ROY,ROYG200108-200312

BLACKISH GREEN MC.CC,6R5

main52127-30120-G1iJZS175..ROY,ROYG200108-200312

LT.GREEN M.M.,6S8

main52127-30120-J0iJZS175..ROY,ROYG200108-200312

DARK BLUE MC.,8P8

main52127-30130-B0iJZS177,UZS171,175200108-200406

SILVER ME.,062

main52127-30130-C0iJZS177,UZS171,175200108-200406

GRAY ME.,1C0

main52127-30130-C1iJZS177,UZS171,175200108-200406

BLACK,202 ,KA3

main52127-30130-D0iJZS177,UZS171,175200108-200406

DK. GRAY M.,202

main52127-30130-E0iJZS177,UZS171,175200108-200406

DARK GRAY ME.,6R5

main52127-30130-F0iJZS177,UZS171,175200108-200406

GRAY ME.,3P2

main52127-30130-G0iJZS177,UZS171,175200108-200406

DARK BLUE ME.,8P8

52131AREINFORCEMENT, FRONT BUMPER

main52131-30230iJZS177,UZS17#199909-200108

main52131-30240iGS171,JKS175,JZS171,173,175,179200108

52133CREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-30110iJZS177,UZS17#200108-200406

main52133-30120iGS171,JZS171,173,175,179199909-200108

52134CREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-30100iJZS177,UZS17#200108-200406

main52134-30110iGS171,JZS171,173,175,179199909-200108

52161CPIECE, FRONT BUMPER

main52161-16010×3iGS171,JZS171,173,175,179199909-200108

52512FILLER, FRONT BUMPER, RH

main52512-30070-A0iGS171,JZS171,173,175,179..SED..(ROY,ROYEX,ROYG)199909-200108

SUPER WHITE 2,040

main52512-30070-A1iGS171,JKS175,JZS171,173,175,179200108-200706

WHITE PEARL CS.,062 ,2FQ

main52512-30070-A2iGS171,JZS171,173..ROYEX200208-200304

main52512-30070-B0iGS171,JZS171,173,175,179199909-200108

SILVER ME.,1C0

main52512-30070-B1iJZS17#200512-200706

SILVER ME.,1F7

main52512-30070-B2iJZS17#200512-200706

QUARTZ GRAY PM.,1G4

main52512-30070-C0iJZS171,173..ATH,ATHV200008-200107

main52512-30070-D0iGS171,JZS171,173,175,179..SED199909-200108

ROSE RED MC.,3M9

main52512-30070-D1iJZS171,173,175..WG199912-200108

RED MC.,3N1

main52512-30070-D2iGS171,JZS171,173,175..WG200210-200706

BORDEAUX MC.,3P2

main52512-30070-D3iJZS171,173,175..WG..(D4,TWC)200108-200706

BLACKISH RED MC.,3R0

main52512-30070-D4iJZS17#200512-200706

GINGER RED M.M.,3R6

main52512-30070-G0iGS171,JKS175,JZS171,173,175,179200108-200706

BLACKISH GREEN MC.CC,6R5

main52512-30070-G1iGS171,JKS175,JZS171,173,175,179200108-200706

LT.GREEN M.M.,6S8

main52512-30070-J0iGS171,JZS171,173,175,179..SED199909-200108

DK.BLUE MC.,2FR ,8L4

main52512-30070-J1iGS171,JZS171,173,175,179199909-200108

GRAYISH BLUE ME.,8N6

main52512-30070-J2iGS171,JKS175,JZS171,173,175,179200108-200706

DARK BLUE MC.,8P8

main52512-30070-J3iJZS171,173,175..WG..(D4,TWC)200108-200706

LT.BLUE M.M.,8S0

main52512-30070-J4iJZS17#200512-200706

DK.BLUE MC.,8S6

main52512-30080-A1iJKS175,JZS171,175,179..ROY200212-200312

PREMIUM *(R),WHITE PEARL CS.,2HF

52513FILLER, FRONT BUMPER, LH

main52513-30070-A0iJZS171,173..ATH,ATHV200008-200107

main52513-30070-A1iGS171,JZS171,173,175,179199909-200108

WHITE PEARL CS.,062 ,2FQ

main52513-30070-A2iGS171,JZS171,173..ROYEX200304-200312

main52513-30070-B0iGS171,JKS175,JZS171,173,175,179200108-200706

SILVER ME.,1C0

main52513-30070-B1iJZS17#200512-200706

SILVER ME.,1F7

main52513-30070-B2iJZS17#200512-200706

QUARTZ GRAY PM.,1G4

main52513-30070-C0iGS171,JKS175,JZS171,173,175,179200108-200706

BLACK,202

main52513-30070-D0iGS171,JZS171,173,175,179..SED199909-200108

ROSE RED MC.,3M9

main52513-30070-D1iGS171,JZS171,173,175..WG200108-200210

RED MC.,3N1

main52513-30070-D2iGS171,JZS171,173,175..WG200210-200706

BORDEAUX MC.,3P2

main52513-30070-D3iJZS171,173,175..WG..(D4,TWC)200108-200706

BLACKISH RED MC.,3R0

main52513-30070-D4iJZS17#200512-200706

GINGER RED M.M.,3R6

main52513-30070-G0iGS171,JZS171,173,175,179199909-200108

BLACKISH GREEN MC.CC,6R5

main52513-30070-G1iGS171,JKS175,JZS171,173,175,179200108-200706

LT.GREEN M.M.,6S8

main52513-30070-J0iGS171,JZS171,173,175,179..SED199909-200108

DK.BLUE MC.,2FR ,8L4

main52513-30070-J1iGS171,JZS171,173,175,179199909-200108

GRAYISH BLUE ME.,8N6

main52513-30070-J2iGS171,JKS175,JZS171,173,175,179200108-200706

DARK BLUE MC.,8P8

main52513-30070-J3iJZS171,173,175200312-200512

LT.BLUE M.M.,8S0

main52513-30070-J4iJZS17#200512-200706

DK.BLUE MC.,8S6

main52513-30080-A1iJKS175,JZS171,175,179..ROY200212-200312

PREMIUM *(R),WHITE PEARL CS.,2HF

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30150iGS171,JZS17#,UZS17#199909-200108

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-30150iGS171,JZS17#,UZS17#199909-200108

52541PROTECTOR, FRONT BUMPER

main52541-30050×2iGS171,JKS175,JZS171,173,175,179200108-200110

main52541-30080×2iGS171,JKS175,JZS171,173,175,179200110

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30240iJZS177,UZS17#200108-200406

main52611-30250iGS171,JKS175,JZS171,173,175,179200108

52711MOULDING, FRONT BUMPER

main52711-30210iJZS177,UZS17#200108-200406

main52711-30220iGS171,JZS171,173,175,179199909-200108

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8102FOG LAMP

→ Go to FIG 81-02

9010506137

main90105-06137

9010506228

main90105-06228

9010510459

main90105-10459

9016860023

main90168-60023

9017906127

main90179-06127

9017906274

main90179-06274

9095901577

main90959-01577

9331316035

main93313-16035
