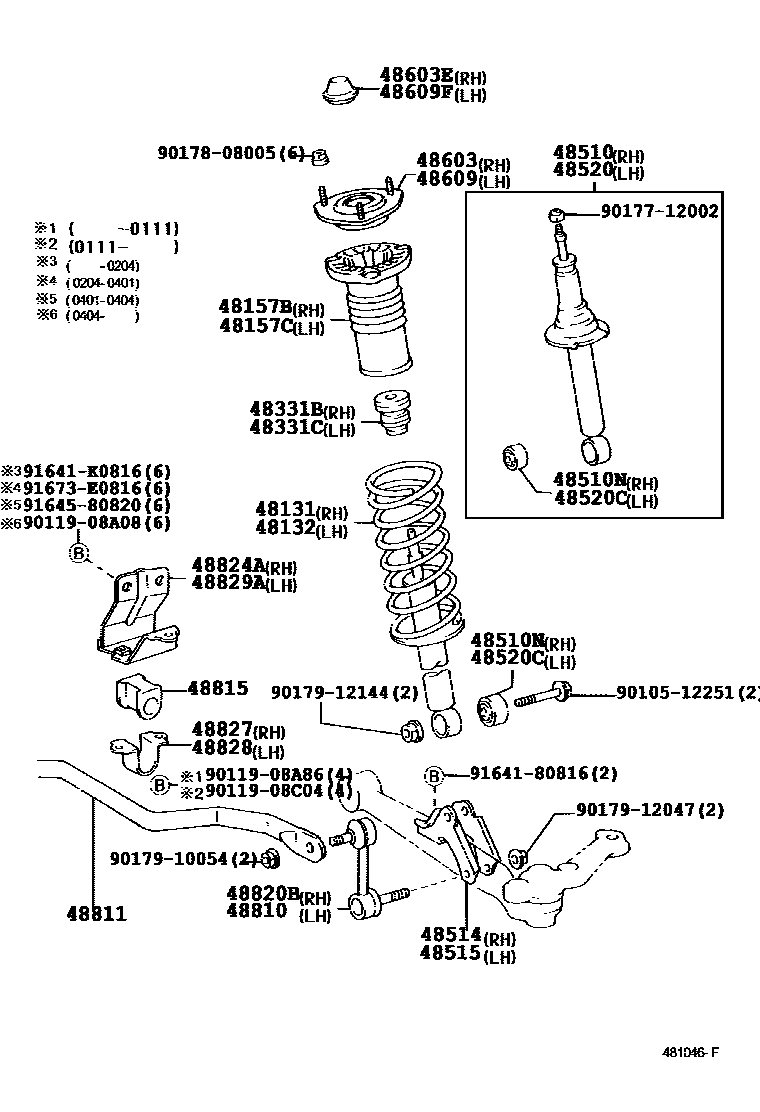

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48131SPRING, FRONT COIL, RH

main48131-3A290iJZS175..ROY,ROYG200108-200312

main48131-3A300iJZS171..SED..4FC..TWC199909-200108

main48131-3A310iGS171200004-200108

main48131-3A320iJZS171,175..ATHG,ATHV199909-200108

main48131-3A370iJZS171..ATH200108

main48131-3A380iJZS171..4FC..D4200108-200312

main48131-3A390iJZS173,179..SED199909-200108

main48131-3A400iJZS177,UZS175200108-200406

main48131-3A410iJZS175..WG..ROY199912-200108

main48131-3A420iJZS171..WG..ROY199912-200108

main48131-3A430iJZS173..WG199912-200108

main48131-3A450iJKS175200108-200312

main48131-3A460iGS171..ATHE200108-200312

main48131-3A470iJZS173,179..SED200108-200312

main48131-3A480iJZS173..WG200108

48132SPRING, FRONT COIL, LH

main48131-3A290iJZS175..ROY,ROYG200108-200312

main48131-3A300iJZS171..SED..4FC..TWC199909-200108

main48131-3A310iGS171200004-200108

main48131-3A320iJZS171,175..ATHG,ATHV200108

main48131-3A370iJZS171..ATH,ATHE199909-200108

main48131-3A380iJZS171..4FC..D4200108-200312

main48131-3A390iJZS173,179..SED199909-200108

main48131-3A400iJZS177,UZS175199909-200108

main48131-3A410iJZS175..WG..ROY199912-200108

main48131-3A420iJZS171..WG..ROY199912-200108

main48131-3A430iJZS173..WG199912-200108

main48131-3A450iJKS175200108-200312

main48131-3A460iGS171..ATHE200108-200312

main48131-3A470iJZS173,179..SED200108-200312

main48131-3A480iJZS173..WG200108

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-22040iGS171,JZS171,175199909-200108

main48157-22050iJZS173,179199909-200108

main48157-30040iJZS177,UZS175199909-200108

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-22040iGS171,JZS171,175199909-200108

main48157-22050iJZS173,179200108

main48157-30040iJZS177,UZS175200108-200406

48331BBUMPER, FRONT SPRING, RH

main48331-30130iGS171,JZS171,173,175,179199909-200108

main48331-30140iJZS177,UZS175199909-200101

main48331-30141iJZS177,UZS175200101-200108

48331CBUMPER, FRONT SPRING, LH

main48331-30130iGS171,JZS171,173,175,179199909-200108

main48331-30140iJZS177,UZS175199909-200101

main48331-30141iJZS177,UZS175200101-200108

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39845iJZS177,UZS175199909-200108

main48510-39855iGS171,JZS171,175..ROY,ROYEX200108-200312

main48510-39865iJZS171,175..ATH,ATHE,ATHG,ATHV199909-200108

main48510-39875iJZS175..ROYG199909-200108

main48510-39885iJZS173,179..SED199909-200108

main48510-39895iJZS171,175..WG..ROY199912-200108

main48510-80010iJZS173..WG199912-200108

main48510-80042iGS171..ATHE200108-200312

main48510-80043iJKS175200108-200312

main48510-80044iJZS171,175..WG200108

main48510-80045iJZS173,179..SED200108-200312

main48510-80046iJZS173..WG200108

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-12016×2iGS171,JKS175,JZS171,175200108

main90389-14028iUZS171199909-200108

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-22010iGS171,JKS175,JZS171,175200108

main48514-22020iJZS173,179199909-200108

main48514-30020iUZS171199909-200108

main48514-30030iJZS177,UZS175199909-200108

main48514-30040iUZS173200108-200406

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-22010iGS171,JZS171,175199909-200108

main48515-22020iJZS173,179199909-200108

main48515-30020iUZS171199909-200108

main48515-30030iJZS177,UZS175199909-200108

main48515-30040iUZS173199909-200108

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39845iJZS177,UZS175199909-200108

main48510-39855iGS171,JZS171,175..SED..(ROY,ROYEX)199909-200108

main48510-39865iJZS171,175..ATH,ATHE,ATHG,ATHV199909-200108

main48510-39875iJZS175..ROYG199909-200108

main48510-39895iJZS171,175..WG..ROY199912-200108

main48510-80042iGS171..ATHE200108-200312

main48510-80043iJKS175200108-200312

main48510-80044iJZS171,175..WG200108

main48520-39385iJZS173..WG199912-200108

main48520-39395iJZS173,179..SED199909-200108

main48520-39485iJZS173,179..SED200108-200312

main48520-39495iJZS173..WG200108

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-12016iGS171,JZS171,175199909-200108

main90389-14028iUZS171200108-200406

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-30020×2iJZS177,UZS175200108-200406

main48680-22130iJZS173,179200108

main48680-30150iGS171,JZS171,175..ROY,ROYEX199909-200108

main48680-30160iGS171,JZS171,175..ATH,ATHE,ATHG,ATHV200108

main48680-30170iJZS175..ROYG200108-200312

main48680-30180iJZS173,179199909-200108

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iGS171,JZS171,175..ATH,ATHE,ATHG,ATHV,ROY,ROYEX199909-200108

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-30020×2iJZS177,UZS175200108-200406

main48680-22160iJZS173,179200108

main48680-30150iGS171,JZS171,175..ROY,ROYEX199909-200108

main48680-30160iGS171,JZS171,175..ATH,ATHE,ATHG,ATHV200108

main48680-30170iJZS175..ROYG200108-200312

main48680-30190iJZS173,179199909-200108

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iGS171,JZS171,175..ATH,ATHE,ATHG,ATHV,ROY,ROYEX199909-200108

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22041iJZS173,179200108

main48810-30010iJZS177,UZS171,175199909-200108

main48810-30050iUZS173200108-200406

main48820-22041iGS171,JKS175,JZS171,175200108

48811BAR, STABILIZER, FRONT

main48811-30570iGS171,JKS175,JZS171,175200108

main48811-30580iJZS173,179199909-200108

main48811-30600iJZS177,UZS171,175199909-200108

main48811-30610iUZS173200108-200406

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30470×2iGS171,JZS171,175199909-200108

main48815-30480×2iUZS173199909-200108

main48815-30510×2iJZS173,179199909-200108

main48815-30520×2iJZS177,UZS171,175199909-200108

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22041iGS171,JZS171,175199909-200108

main48820-22051iJZS173,179200108

main48820-30030iJZS177,UZS171,175200108-200406

main48820-30070iUZS173200108-200406

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30020iGS171,JKS175,JZS171,175200108-200111

main48809-30021iGS171,JKS175,JZS171,175200111

main48809-30040iJZS177,UZS171,175199909-200108

main48809-30041iJZS177,UZS171,175200111-200406

main48824-22060iJZS173,179199909-200108

main48824-30110iUZS173199909-200108

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-22090iGS171,JKS175,JZS171,175200108

main48824-30120iJZS177,UZS171,175199909-200108

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-22090iGS171,JKS175,JZS171,175200108

main48824-30120iJZS177,UZS171,175199909-200108

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48807-30020iJZS177,UZS171,175199909-200108

main48807-30021iJZS177,UZS171,175200111-200406

main48809-30030iGS171,JZS171,175199909-200108

main48809-30031iGS171,JKS175,JZS171,175200111

main48824-22060iJZS173,179199909-200108

main48824-30110iUZS173199909-200108

9010512251

main90105-12251

9011908A08

main90119-08A08

9011908A86

main90119-08A86

9011908C04

main90119-08C04

9017712002

main90177-12002

9017808005

main90178-08005

9017910054

main90179-10054

9017912047

main90179-12047

9017912144

main90179-12144

9164180816

main91641-80816

91641K0816

main91641-K0816

9164580820

main91645-80820

91673E0816

main91673-E0816

37 parts on this diagram · 6 diagrams in section
