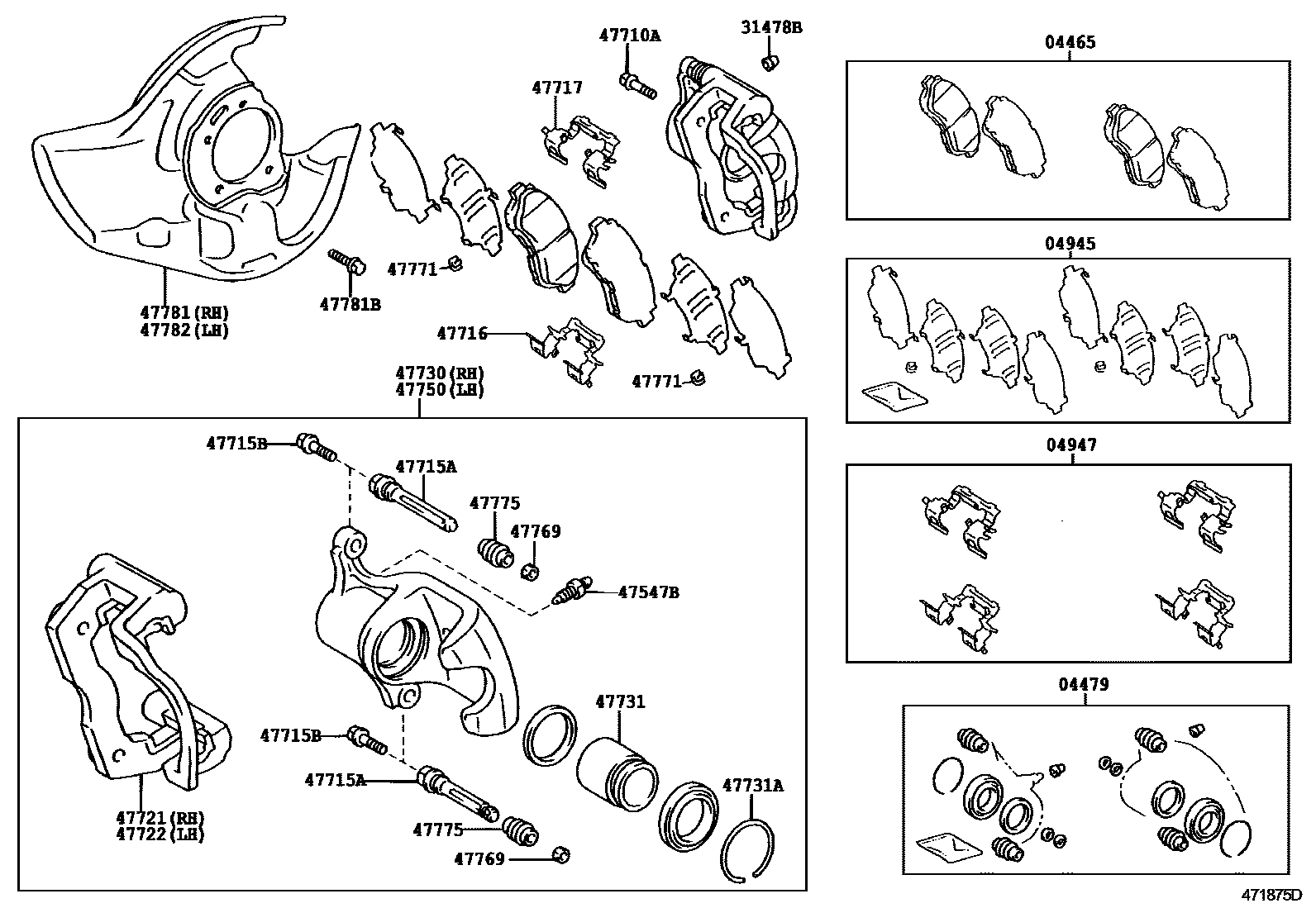

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-22311iJZS171..TWT199909-200212

main04465-22312iJZS171,UZS173..HTWC,TWT200212-200406

main04465-30080iJZS173,177,179,UZS171,175199909-200706

main04465-30231iUZS173199909-200208

main04465-30280iGS171,JKS175,JZS171,175..D4,HTWC199909-200201

main04465-30300iGS171,JKS175,JZS171,175..D4,HTWC200201-200706

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30250iJZS173200201

main04478-53020iJZS173200605-200704

main04479-30150iGS171,JZS171,173,175,179..D4,HTWC,TWC199909-200101

main04479-30151iGS171,JKS175,JZS171,175..D4,HTWC200101-200605

main04479-30190iJZS171,177,UZS17#..D4,HTWC,TWT199909-200101

main04479-30191iJZS171,177,UZS17#..A,ATHV,C200101-200406

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30120iUZS173199909-200208

main04945-30140iJZS171..TWT199909-200406

main04945-30160iGS171,JZS171,175..D4,HTWC,TWC199909-200201

main04945-30170iGS171,JKS175,JZS171,175..D4,HTWC200201

main04945-33020iJZS173,177,179,UZS171,175199909-200108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30080iJZS177,UZS171,175199909-200406

main04947-30090iJZS171..TWT199909-200312

main04947-30100iJZS173,179199909-200108

main04947-30120iUZS173199909-200406

main04947-30130iGS171,JZS171,175..D4,HTWC,TWC199909-200108

main04947-30131iGS171,JKS175,JZS171,175..D4,HTWC200108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGS171,JZS17#,UZS17#199909-200108

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGS171,JZS17#,UZS17#199909-200108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGS171,JZS17#,UZS17#199909-200706

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iJZS173,179;JZS171,177,UZS17#..D4,HTWC,TWT199909-200108

main47715-22070iJZS171..TWT200108-200312

main47715-22080iJZS173,179199909-200108

main47715-30060iJZS171,177,UZS17#..A,ATHV,C199909-200406

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGS171,JKS175,JZS17#,UZS17#199909-200108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iJZS171..TWT199909-200312

main47716-30120iUZS173199909-200406

main47716-30140iGS171,JKS175,JZS171,175..D4,HTWC199909-200108

main47716-30160iJZS173,177,179,UZS171,175199909-200108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iJZS171..TWT199909-200312

main47716-30130iUZS173199909-200406

main47716-30170iJZS173,177,179,UZS171,175199909-200108

main47717-30130iGS171,JZS171,175..D4,HTWC,TWC199909-200108

main47717-51010iGS171,JKS175,JZS171,175..D4,HTWC200108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22200iJZS171..TWT199909-200312

main47721-30140iJZS177,UZS171,175199909-200406

main47721-30180iUZS173199909-200406

main47721-30210iGS171,JZS171,175..D4,HTWC,TWC199909-200209

main47721-30211iGS171,JKS175,JZS171,175..D4,HTWC200209

main47721-50010iJZS173,179199909-200108

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22160iJZS171..TWT199909-200312

main47722-30060iJZS177,UZS171,175199909-200406

main47722-30100iUZS173199909-200406

main47722-30110iGS171,JKS175,JZS171,175..D4,HTWC199909-200209

main47722-30111iGS171,JKS175,JZS171,175..D4,HTWC200209

main47722-50010iJZS173,179199909-200108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30360iJZS173,179199909-200108

main47730-30430iUZS173199909-200406

main47730-30440iGS171,JZS171,175..D4,HTWC,TWC199909-200108

main47730-30490iJZS177,UZS171,175199909-200406

main47730-53010iJZS171..TWT199909-200312

47731PISTON, FRONT DISC BRAKE

main47731-30110iJZS173,179199909-200108

main47731-30170iJZS171,177,UZS17#..D4,HTWC,TWT199909-200406

main47731-33070iGS171,JZS171,175..D4,HTWC,TWC199909-200108

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iJZS171,177,UZS17#..A,ATHV,C199909-200406

main90520-86005iGS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC199909-200108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30360iJZS173,179199909-200108

main47750-30430iUZS173199909-200406

main47750-30440iGS171,JZS171,175..D4,HTWC,TWC199909-200108

main47750-30490iJZS177,UZS171,175199909-200406

main47750-53010iJZS171..TWT199909-200312

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJZS171,173..WG..4FC..(ATH,ATHE,ATHV)199909-200108

main47769-50020iGS171,JKS175,JZS171,175..D4,HTWC199909-200108

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iGS171,JKS175,JZS171,175..D4,HTWC199909-200108

main47771-50010iJZS173,177,179,UZS171,175199909-200108

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iGS171,JKS175,JZS17#,UZS17#199909-200604

main47775-50010iJZS17#200605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22152iJZS171..TWT199909-200312

main47781-22161iGS171,JZS171,175..D4,HTWC,TWC199909-200009

main47781-22162iGS171,JZS171,175..D4,HTWC,TWC200009-200706

main47781-22180iJZS173,179199909-200706

main47781-30160iJZS177,UZS171,175199909-200406

main47781-30180iUZS173199909-200406

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iGS171,JZS17#,UZS17#199909-200706

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22152iJZS171..TWT199909-200312

main47782-22161iGS171,JZS171,175..D4,HTWC,TWC199909-200009

main47782-22162iGS171,JZS171,175..D4,HTWC,TWC200009-200706

main47782-22180iJZS173,179199909-200706

main47782-30160iJZS177,UZS171,175199909-200406

main47782-30180iUZS173199909-200406

23 parts on this diagram · 5 diagrams in section
