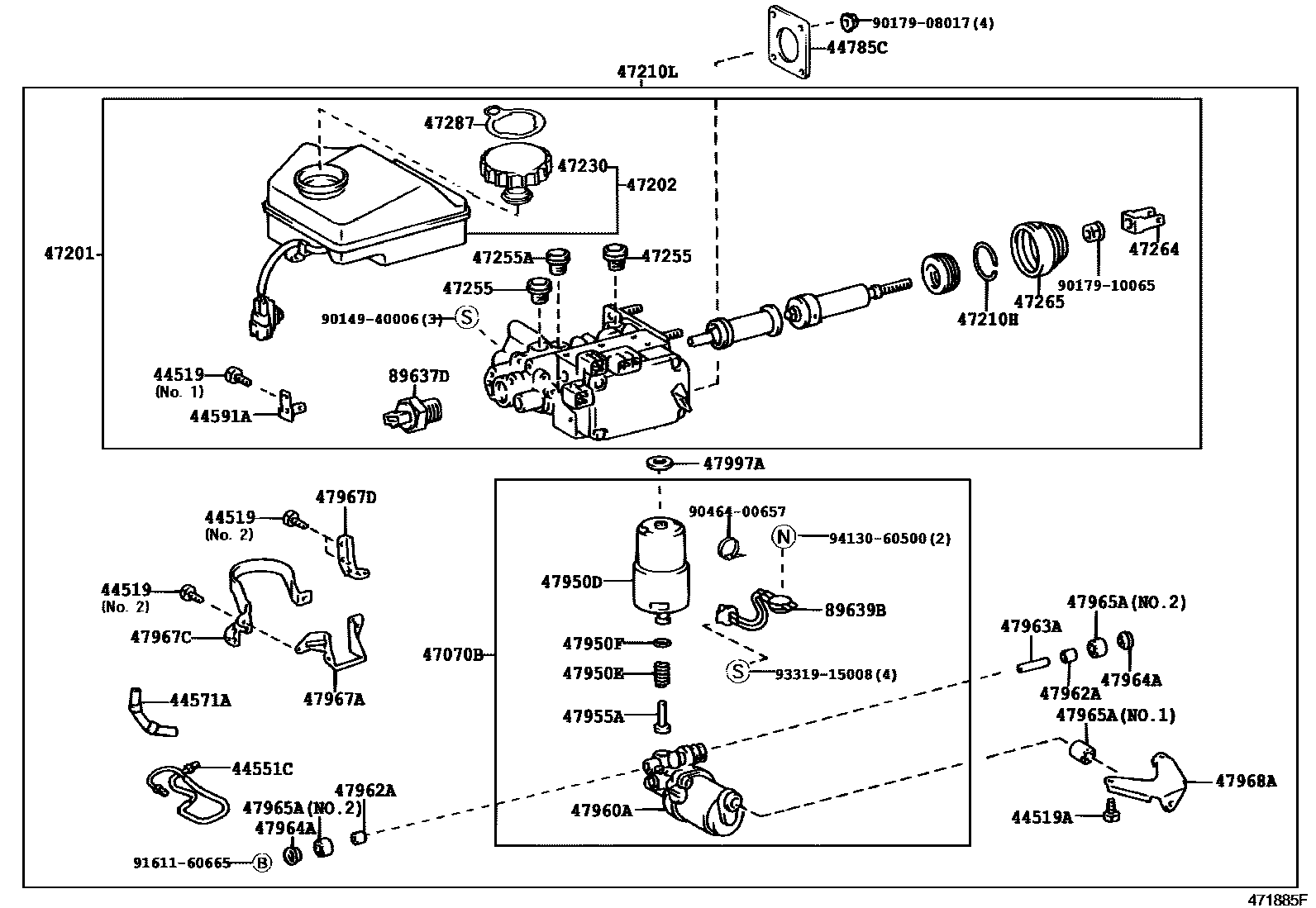

BRAKE MASTER CYLINDER
44519BOLT, BRAKE ACTUATOR
44519ABOLT(FOR BRAKE BOOSTER PUMP)
44551CTUBE, BRAKE ACTUATOR, NO.1
44571AHOSE, BRAKE ACTUATOR, NO.1
44591ABRACKET, BRAKE ACTUATOR, NO.1
44785CGASKET, BRAKE BOOSTER
47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)
47255GROMMET, MASTER CYLINDER RESERVOIR
47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47287LABEL, BRAKE FLUID INFORMATION
47950DACCUMULATOR ASSY, BRAKE BOOSTER
47950ESPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)
47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)
47955APIPE, BRAKE BOOSTER ACCUMULATOR
47960APUMP ASSY, BRAKE BOOSTER
47962ACOLLAR, BRAKE BOOSTER PUMP
47963ASHAFT, BRAKE BOOSTER PUMP
47964AWASHER, BRAKE BOOSTER PUMP
47965ABUSH, BRAKE BOOSTER PUMP
47967ABRACKET, BRAKE BOOSTER PUMP, NO.1
47967CBRACKET, BRAKE BOOSTER PUMP, NO.2
47967DBRACKET, BRAKE BOOSTER PUMP, NO.3
47968ABRACKET, BRAKE BOOSTER PUMP, NO.2
47997ALABEL, ACCUMULATOR CAUTION, NO.1
89637DSENSOR, OIL PRESSURE
89639BWIRE, BRAKE CONTROL
9014940006
main90149-40006
9017908017
main90179-08017
9017910065
main90179-10065
9046400657
main90464-00657
9161160665
main91611-60665
9331915008
main93319-15008
9413060500
main94130-60500
40 parts on this diagram · 3 diagrams in section
