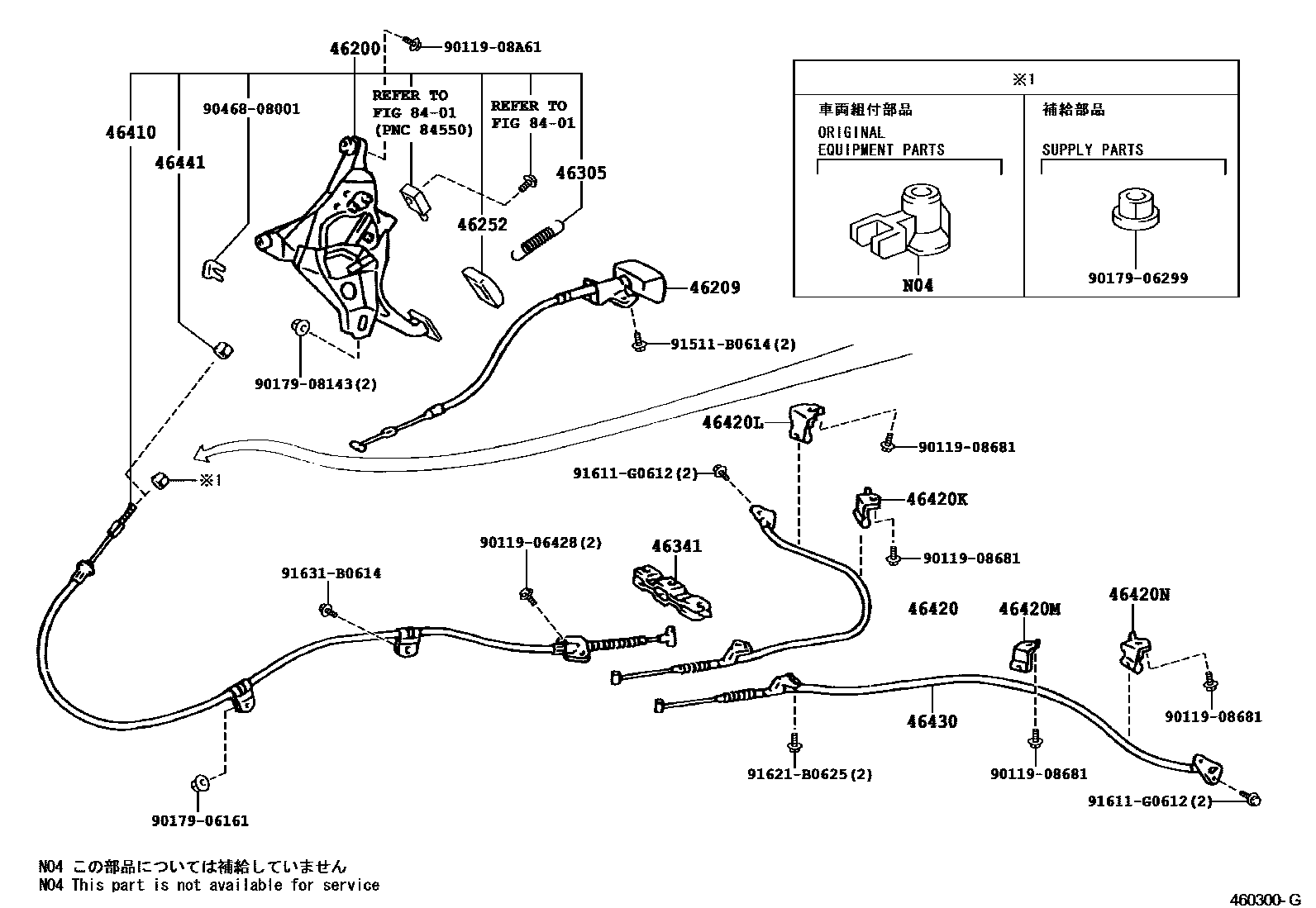

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-30360iJZS177,UZS17#199909-200108

main46200-30370iGS171,JZS171,173,175,179199909-200108

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-30180-A0iJZS177,UZS17#200108-200406

IVORY,TRIM0#

main46209-30180-B0iJZS177,UZS17#200108-200406

MD.CHARCOAL,TRIM1#

main46209-30180-C0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main46209-30190-A0iGS171,JZS171,173,175,179199909-200108

IVORY,TRIM0#

main46209-30190-B0iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

DK.CHARCOAL,TRIM1#

main46209-30190-B1iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

MD.CHARCOAL,TRIM1#

main46209-30190-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

46252PAD, PARKING PEDAL

main46252-20010iGS171,JZS171,173,175,179199909-200108

main46252-50010iJZS177,UZS17#199909-200108

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-30020iGS171,JZS171,173,175,179199909-200108

46341EQUALIZER, PARKING BRAKE

main46341-24010iGS171,JZS171,173,175,179199909-200108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30720iJZS177,UZS17#200108-200406

main46410-30730iGS171,JZS171,173,175,179199909-200108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30540iJZS177,UZS17#200108-200406

main46420-51011iGS171,JKS175,JZS171,173,175,179200108

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-51010iGS171,JZS171,173,175,179199909-200108

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-51020iGS171,JZS171,173,175,179199909-200108

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46431-51010iGS171,JZS171,173,175,179199909-200108

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-51020iGS171,JKS175,JZS171,173,175,179200108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-30140iJZS177,UZS17#200108-200406

main46430-51011iGS171,JZS171,173,175,179199909-200108

46441NUT, WIRE ADJUSTING, NO.1

main46441-51010iGS171,JKS175,JZS17#,UZS17#200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906428

main90119-06428

9011908681

main90119-08681

9011908A61

main90119-08A61

9017906161

main90179-06161

9017906299

main90179-06299

9017908143

main90179-08143

9046808001

main90468-08001

91511B0614

main91511-B0614

91611G0612

main91611-G0612

91621B0625

main91621-B0625

91631B0614

main91631-B0614

25 parts on this diagram · 3 diagrams in section
