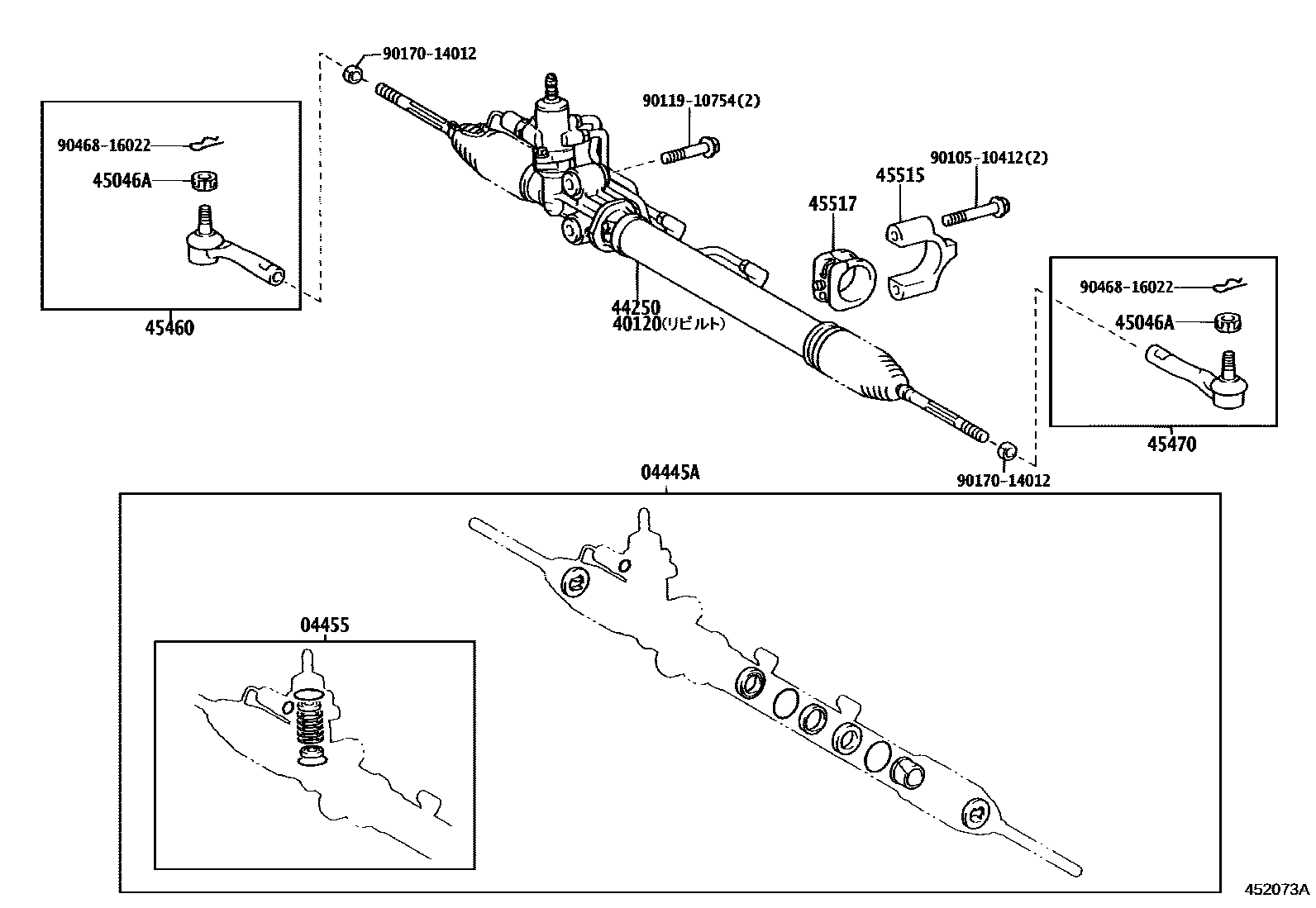

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-30260iJZS171..TWT;JKS175,JZS175199909-200108

main04445-30280iJZS173,179199909-200108

main04445-30290iUZS173199909-200406

main04445-30300iJZS177,UZS171,175199909-200406

main04445-51010iGS171,JZS171..HTWC,TWC199909-200010

main04445-51011iGS171,JZS171..D4,HTWC200010-200108

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-30090iJZS171..TWT;JKS175,JZS173,175,179199909-200108

main04455-30110iUZS173199909-200406

main04455-30120iJZS177,UZS171,175199909-200406

main04455-51010iGS171,JZS171..HTWC,TWC199909-200108

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-30200iJZS177,UZS171,175199909-200406

main40120-30210iUZS173199909-200406

main40120-30240iJKS175,JZS175..ROY,ROYG200108-200312

main40120-30240iJZS175..ROY,ROYG199909-200108

main40120-30250iJZS171,175..ATHG,ATHV199909-200108

main40120-30260iGS171,JZS171..D4,HTWC200108

main40120-30260iGS171,JZS171..HTWC,TWC199909-200108

main40120-30270iJZS173,179199909-200108

main40120-30270iJZS173,179200108

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-30200iJZS177,UZS171,175199912-200406

main44200-39015iJZS177,UZS171,175199909-199912

main44250-30210iUZS173199909-200406

main44250-30240iJZS175..ROY,ROYG199909-200312

main44250-30250iJZS171,175..ATHG,ATHV199909-200108

main44250-30260iGS171,JZS171..D4,HTWC199909-200108

main44250-30270iJZS173,179199909-200108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGS171,JZS17#,UZS17#199909-200108

45460ROD ASSY, TIE, RH

main45460-39395iUZS173199909-200406

main45460-39455iJZS173,179199909-200108

main45460-39575iGS171,JKS175,JZS171,175199909-200108

main45460-59015iJZS177,UZS171,175199909-200406

45470ROD ASSY, TIE, LH

main45470-39145iUZS173199909-200406

main45470-39165iJZS173,179199909-200108

main45470-39205iGS171,JKS175,JZS171,175199909-200108

main45470-59015iJZS177,UZS171,175199909-200406

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGS171,JZS171,175199909-200108

main45515-22130iJZS173,179199909-200108

main45515-30040iUZS173199909-200406

main45515-30080iJZS177,UZS171,175199909-200406

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-30010iUZS173199909-200406

main45517-30020iGS171,JKS175,JZS171,175199909-200108

main45517-30060iJZS177,UZS171,175199909-200406

main45517-30070iJZS173,179199909-200108

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816022

main90468-16022

13 parts on this diagram · 16 diagrams in section
