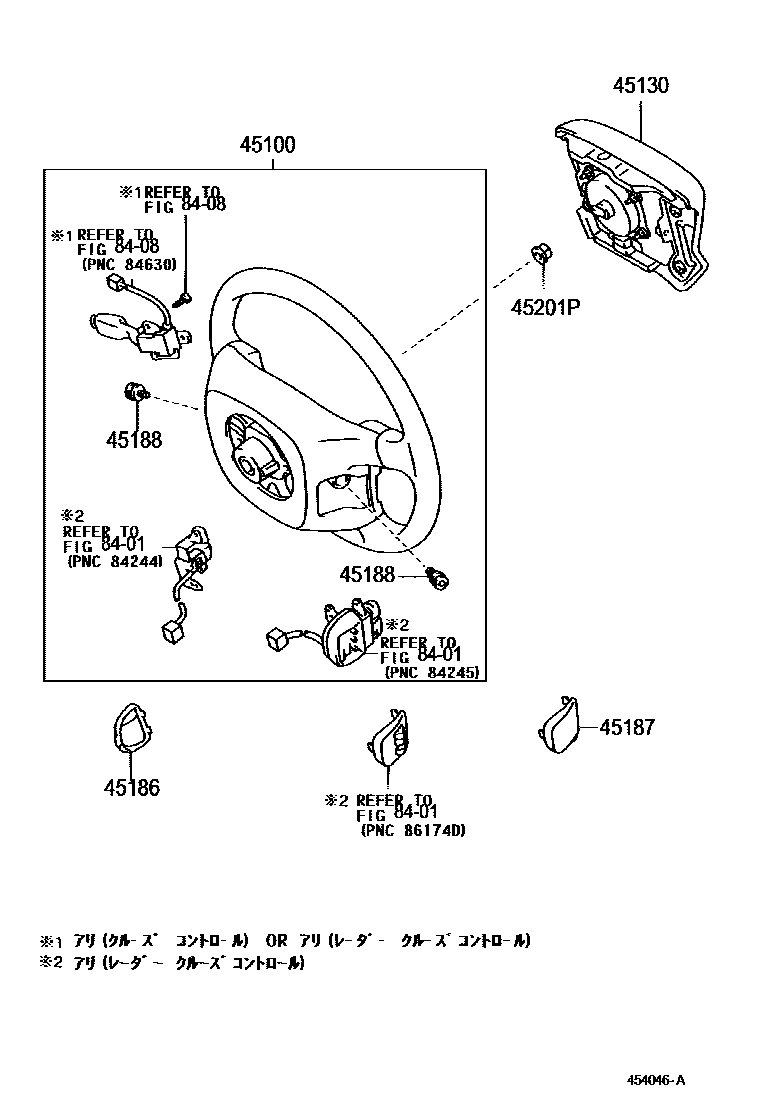

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-3A130-B0iGS171,JZS171,173,175,179..ROY,ROYEX199909-200108

main45100-3A130-B1iJZS171..ATHE200008-200108

main45100-3A130-E0iGS171,JZS171,173,175,179..ATHE,ROY,ROYEX199909-200108

main45100-3A140-B0iJZS171,173,175,179..ROY,ROYEX199909-200108

main45100-3A140-B1iJZS171..ATHE200008-200108

main45100-3A140-E0iJZS171,173,175,179..ATHE,ROY,ROYEX199909-200108

main45100-3A150-B0iGS171,JZS171,173,175,179..ROY,ROYEX199909-200108

main45100-3A150-B1iJZS171,173..4FC..(ATH,ATHE)199909-200108

main45100-3A150-E0iGS171200104-200107

main45100-3A160-B0iJZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

main45100-3A160-B1iJZS171,173..4FC..(ATH,ATHE)199909-200108

main45100-3A160-E0iJZS175..ROY,ROYG;JZS171,173,179..4FC..TWC199909-200108

main45100-3A170-B0iJZS171,175..ATH,ATHG,ATHV199909-200108

main45100-3A170-E0iJZS171,175..ATH,ATHG,ATHV199909-200108

main45100-3A180-B0iJZS171,175..ATH,ATHG,ATHV199909-200108

main45100-3A180-E0iJZS171,175..ATH,ATHG,ATHV199909-200108

main45100-3A190-B0iJZS177..A199909-200108

main45100-3A190-E0iJZS177..A199909-200108

main45100-3A200-B0iJZS177,UZS17#199909-200108

main45100-3A200-E0iJZS177,UZS17#199909-200108

main45100-3A210-B0iUZS171,175199909-200108

main45100-3A210-E0iUZS171,175199909-200108

main45100-3A300-B1iJZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main45100-3A300-C1iGS171..ATHE200108-200312

main45100-3A300-E1iGS171..ATHE; JZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX200108-200312

main45100-3A310-B1iJZS171,173..ROYEX200108-200312

main45100-3A310-E1iJZS171,173..ROYEX200108-200312

main45100-3A320-B1iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX200108-200312

main45100-3A320-C1iGS171,JZS173..ATH,ATHE200108-200312

main45100-3A320-E1iJZS173;GS171,JKS175,JZS171,175,179..ATHE,ROY,ROYEX200108-200312

main45100-3A330-B1iJKS175,JZS171,173,175,179..ROY,ROYEX200108-200312

main45100-3A330-C1iJZS173..ATH200108-200706

main45100-3A330-E1iJZS173;JKS175,JZS171,175,179..ROY,ROYEX200108-200706

main45100-3A340-C1iJZS171,175..ATH,ATHG,ATHV200108-200312

main45100-3A340-E1iJZS171,175..ATH,ATHG,ATHV200108-200312

main45100-3A350-C1iJZS171,175..ATH,ATHG,ATHV200108-200706

main45100-3A350-E1iJZS171,175..ATH,ATHG,ATHV200108-200706

main45100-3A360-B1iJZS177..A200108-200405

main45100-3A360-E1iJZS177..A200108-200405

main45100-3A370-B1iJZS175..ROYG;JKS175,JZS177,UZS17#200108-200405

main45100-3A370-C0iJZS177,UZS171,173..C200202-200207

main45100-3A370-E1iJZS175..ROYG;JKS175,JZS177,UZS17#200108-200405

main45100-3A380-B1iJZS175,177,UZS171,175..A,C,ROY,ROYG200108-200405

main45100-3A380-C0iJZS177,UZS171,173..C200202-200207

main45100-3A380-E1iJZS175,177,UZS171,175..A,C,ROY,ROYG200108-200405

45130BUTTON ASSY, HORN

main45130-30580-B0iGS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main45130-30580-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main45130-30580-E0iGS171,JZS17#,UZS17#199909-200108

SANDAL WOOD,TRIM0#

main45130-30610-B1iGS171,JKS175,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG200108-200405

DK.CHARCOAL,TRIM1#

main45130-30610-C1iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main45130-30610-C2iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23

main45130-30610-E1iJZS177,UZS17#200108-200405

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30100-B0iGS171,JKS175,JZS17#..A,ROY,ROYEX200108-200405

DK.CHARCOAL,TRIM1#

main45186-30100-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main45186-30100-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200312

BLACK,TRIM2#

main45186-30100-E0iJZS171,173,175..WG..(D4,TWC)200108-200312

SANDAL WOOD,TRIM0#

main45186-30110-B0iJZS17#,UZS17#..A,C,ROY,ROYEX,ROYG199909-200108

main45186-30110-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

main45186-30110-C0iJZS171,173,175..ATH,ATHG,ATHV200108-200706

main45186-30110-E0iJZS177,UZS17#200108-200405

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30070-B0iGS171,JZS171,173,175,179..ROY,ROYEX,ROYG199909-200108

DK.CHARCOAL,TRIM1#

main45187-30070-B1iJZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200108

SADDLE GRAY,TRIM1#

main45187-30070-C0iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200706

BLACK,TRIM2#

main45187-30070-E0iGS171,JZS171,173,175,179199909-200108

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iGS171,JZS17#,UZS17#199909-200108

45201PNUT, STEERING WHEEL SET

main90179-12071iGS171,JZS17#,UZS17#199909-200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8 parts on this diagram · 1 diagram in section
