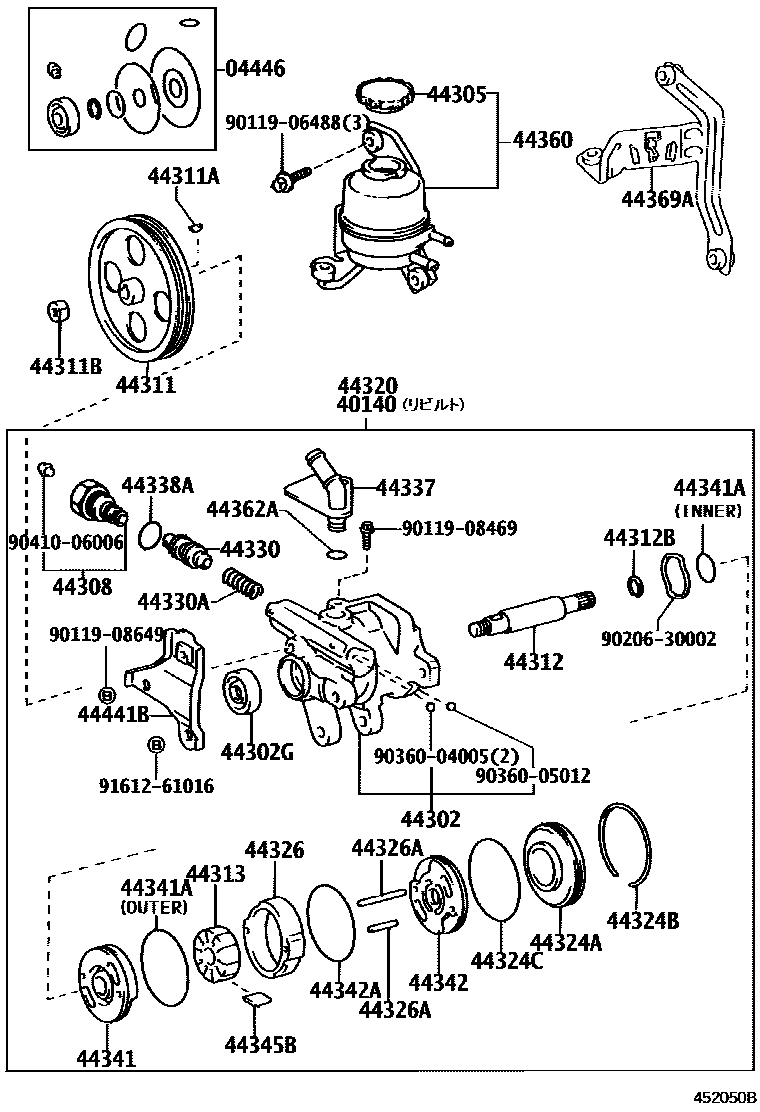

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
40140PUMP ASSY,VANE REBUILT
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44308UNION SUB-ASSY, PRESSURE PORT
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44311BNUT(FOR VANE PUMP PULLEY)
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44320PUMP ASSY, VANE
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
sub44330-35191
sub44330-35201
sub44330-35211
sub44330-35221
sub44330-35231
sub44330-35241
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44338UNION, PRESSURE PORT
44338ARING, O(FOR PRESSURE PORT UNION)
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44369ABRACKET, OIL RESERVOIR, NO.1
44441BBRACKET, PUMP, FRONT
9011906488
main90119-06488
9011908469
main90119-08469
9011908649
main90119-08649
9020630002
main90206-30002
9036004005
main90360-04005
9036005012
main90360-05012
9041006006
main90410-06006
9161261016
main91612-61016
40 parts on this diagram · 10 diagrams in section
