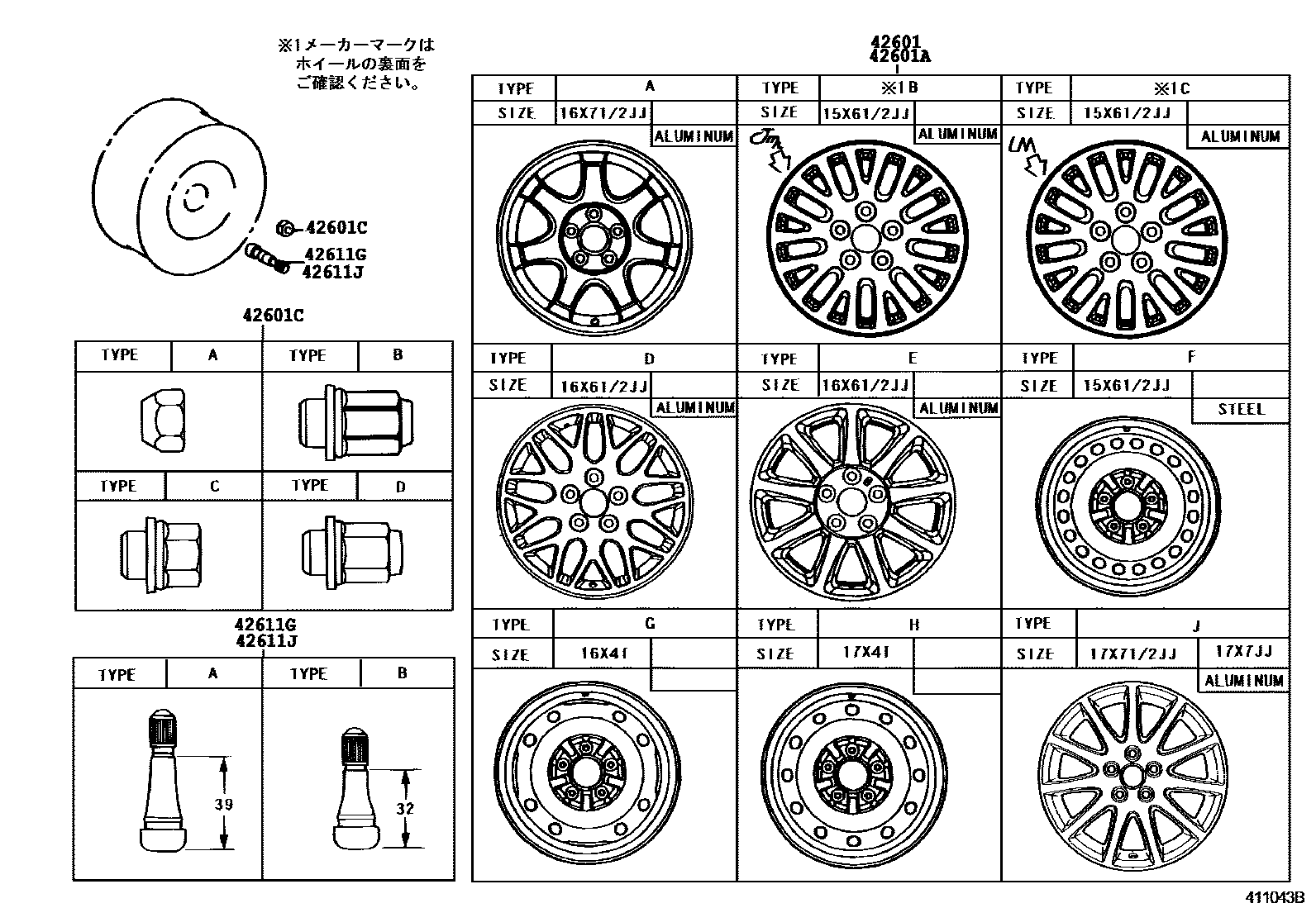

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-30761×4iUZS173200108-200406

main42611-3A160×4iJZS177200108-200406

main42611-3A170×4iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG200108-200312

main42611-3A180×4iJZS171,175..ATH,ATHE,ATHG; JZS171..TWT199909-200108

main42611-3A190×2iJZS171..TWT199909-200108

main42611-3A200×4iJZS177,UZS171,175200008-200108

main42611-3A250×2iJZS171,175..ATH,ATHG,ATHV200108

main42611-3A260×2iJZS171,175..ATH,ATHG,ATHV200108

main42611-3A280×4iJZS177,UZS171..C200202-200207

main42611-3A290×4iUZS173200202-200207

main42611-53030×4iJZS171..ROYEX;GS171,JKS175,JZS173..ATHE,ROY,ROYEX200108-200312

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iGS171,JZS17#..D4,HTWC,TWC199909-200108

main42611-30761iUZS173199909-200108

main42611-3A160iJZS177200108-200406

main42611-3A170iJZS177200108-200406

main42611-3A180iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108

main42611-3A200iJZS177,UZS171,175200108-200406

main42611-3A250iJZS171,175..ATH,ATHG,ATHV200108

main42611-3A260iJZS171,175..ATH,ATHG,ATHV200108

main42611-50090iJZS177,UZS171,175200108-200406

main42611-53030iGS171,JZS171,173..ATHE,ROYEX199909-200108

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iGS171,JZS171,173..ATHE,ROYEX199909-200108

main90942-01058×20iJZS179200212-200312

main90942-01062×20iJZS171,175,179..ROY200112-200212

main90942-01083×20iJZS171,175..ATH,ATHE,ATHG,ATHV199909-200108

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iJZS171..ROYEX;GS171,JKS175,JZS173..ATHE,ROY,ROYEX200108-200312

main90942-05009×4iGS171,JZS17#,UZS17#199909-200108

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05004iJZS171..ROYEX;GS171,JKS175,JZS173..ATHE,ROY,ROYEX200108-200312

main90942-05009iJZS177,UZS171,175; UZS173200108-200406

5 parts on this diagram · 4 diagrams in section
