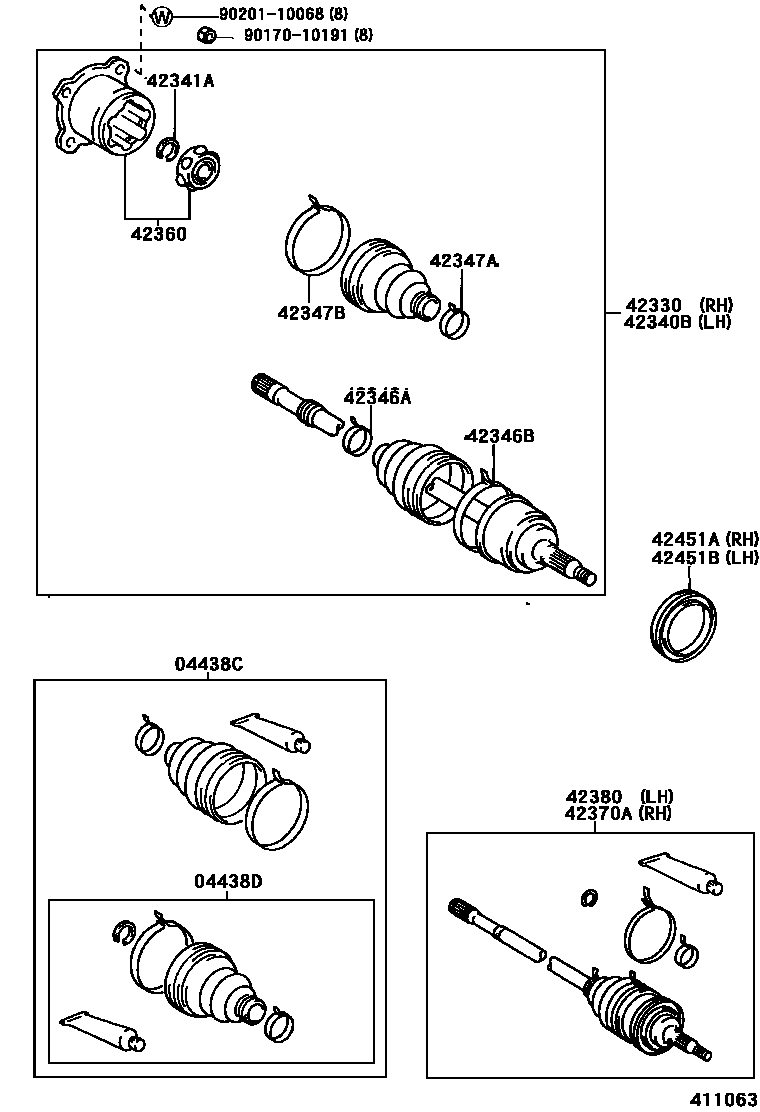

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04429-22020×2iJZS171,UZS171,175..HTWC,TWT200108-200406

main04429-30040×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC200110-200608

main04429-30080×2iJZS171,173200608

main04437-0W020×2iJZS175200406

main04437-22150×2iGS171200008-200108

main04437-24041×2iJZS171,UZS171,175..HTWC,TWT199909-200108

main04437-28031×2iGS171200004-200008

main04437-30060×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC200108-200110

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-0W010×2iJZS175200406

main04437-24031×2iJZS171,UZS171,175..HTWC,TWT199909-200108

main04437-28021×2iGS171200004-200108

main04437-30050×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC; JZS175199909-200108

main04439-22020×2iJZS171,UZS171,175..HTWC,TWT200108-200406

main04439-30030×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC200110-200608

main04439-30060×2iJZS171,173200608

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0W010iJZS175199909-200108

main42330-22021iJZS171..TWT199909-200108

main42330-22050iGS171200108-200312

main42330-24020iUZS171,175200108-200406

main42330-30110iJZS177,UZS173200108-200406

main42330-30120iJZS171,173,179..TWC; JZS175199909-200108

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0W010iJZS175199909-200108

main42340-22101iJZS171..TWT200108-200312

main42340-22130iGS171200108-200312

main42340-24050iUZS171,175199909-200108

main42340-30110iJZS177,UZS173199909-200108

main42340-30120iJZS171,173,179..TWC; JZS175199909-200108

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028×2iGS171200108-200312

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-0W010×2iJZS175199909-200108

main42345-14010×2iGS171200004-200108

main42345-30080×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC; JZS175199909-200108

main90949-01837×2iJZS171,UZS171,175..HTWC,TWT200108-200406

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-0W020×2iJZS175199909-200108

main42345-30070×2iJKS175,JZS175; JZS171,173,177,179,UZS173..D4,HTWC,TWC200108

main90949-01473×2iGS171200004-200108

main90949-01838×2iJZS171,UZS171,175..HTWC,TWT200108-200406

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-0W010×2iJZS175199909-200108

main42345-14010×2iGS171200004-200108

main42345-30080×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC; JZS175199909-200108

main90949-01837×2iJZS171,UZS171,175..HTWC,TWT200108-200406

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-0W020×2iJZS175199909-200108

main42345-16090×2iGS171200004-200108

main42345-30010×2iGS171200108-200312

main42345-30070×2iJZS171,173,177,179,UZS173..D4,HTWC,TWC; JZS175199909-200108

main90949-01838×2iJZS171,UZS171,175..HTWC,TWT200108-200406

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-30040×2iGS171200108-200312

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-09006iJZS175199909-200108

main42370-29109iUZS171,175200108-200406

main42370-29149iJZS171..TWT200108-200312

main42370-29177iGS171200108-200312

main42370-39126iJZS177,UZS173199909-200108

main42370-39136iJZS171,173,179..TWC; JZS175199909-200108

main42370-39205iJZS171,173,179..D4,TWC200110-200608

main42370-39295iJZS171,173200608

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-09006iJKS175,JZS175200108-200406

main42380-29029iUZS171,175199909-200108

main42380-29049iJZS171..TWT199909-200108

main42380-29077iGS171200004-200108

main42380-39046iJZS177,UZS173199909-200108

main42380-39056iJZS171,173,179..TWC; JZS175199909-200108

main42380-39115iJKS175,JZS175200108-200406

main42380-39165iJZS171,173200608

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42453-50010iGS171,JZS17#,UZS17#199909-200108

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42453-50010iGS171,JZS17#,UZS17#199909-200108

9017010191

main90170-10191

9020110068

main90201-10068

16 parts on this diagram · 4 diagrams in section
