Toyota CROWN/CROWN MAJESTA — OIL COOLER & TUBE (ATM)

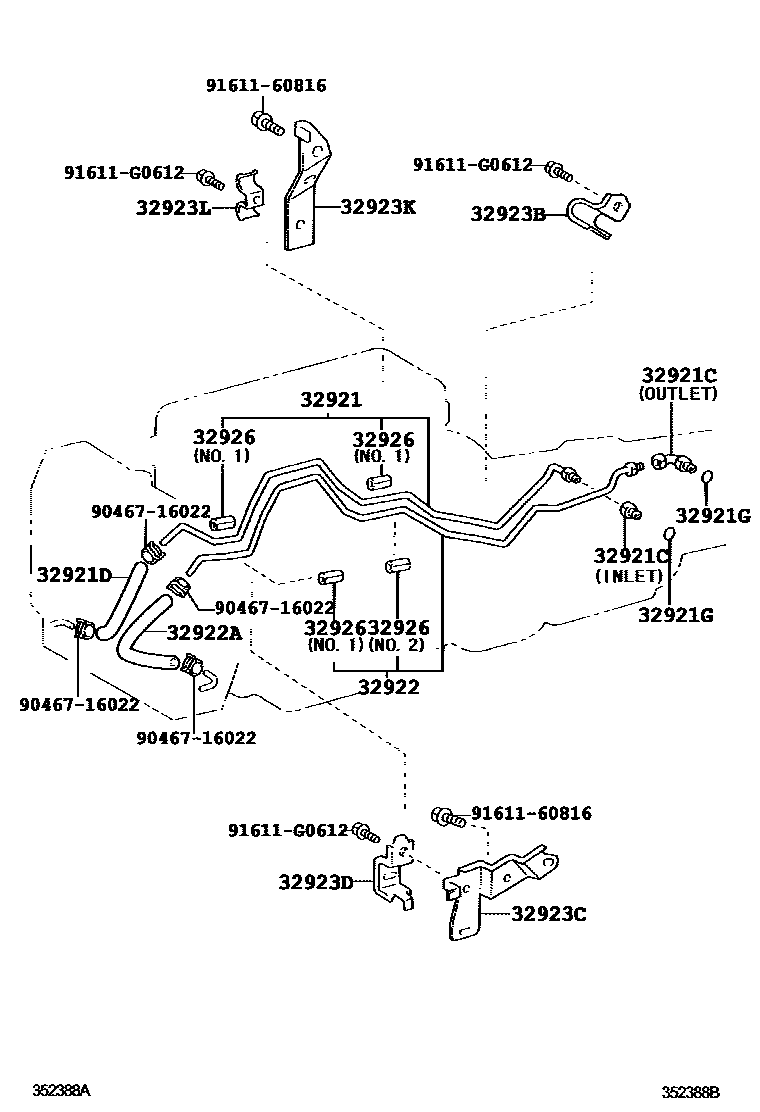

Parts diagram

32921CUNION(FOR OIL COOLER TUBE)

32921DHOSE(FOR OIL COOLER INLET)

32921GRING, O(FOR OIL COOLER TUBE UNION)

32922TUBE, OIL COOLER OUTLET, NO.1

32922AHOSE(FOR OIL COOLER OUTLET)

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

32926CUSHION, OIL COOLER TUBE(ATM)

9046716022

9161160816

91611G0612

15 parts on this diagram · 8 diagrams in section

OIL COOLER & TUBE (ATM) for Toyota CROWN/CROWN MAJESTA

This section contains 34 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota CROWN/CROWN MAJESTA. Key components include: TUBE, OIL COOLER INLET, NO.1, UNION(FOR OIL COOLER TUBE), HOSE(FOR OIL COOLER INLET), RING, O(FOR OIL COOLER TUBE UNION), TUBE, OIL COOLER OUTLET, NO.1.
