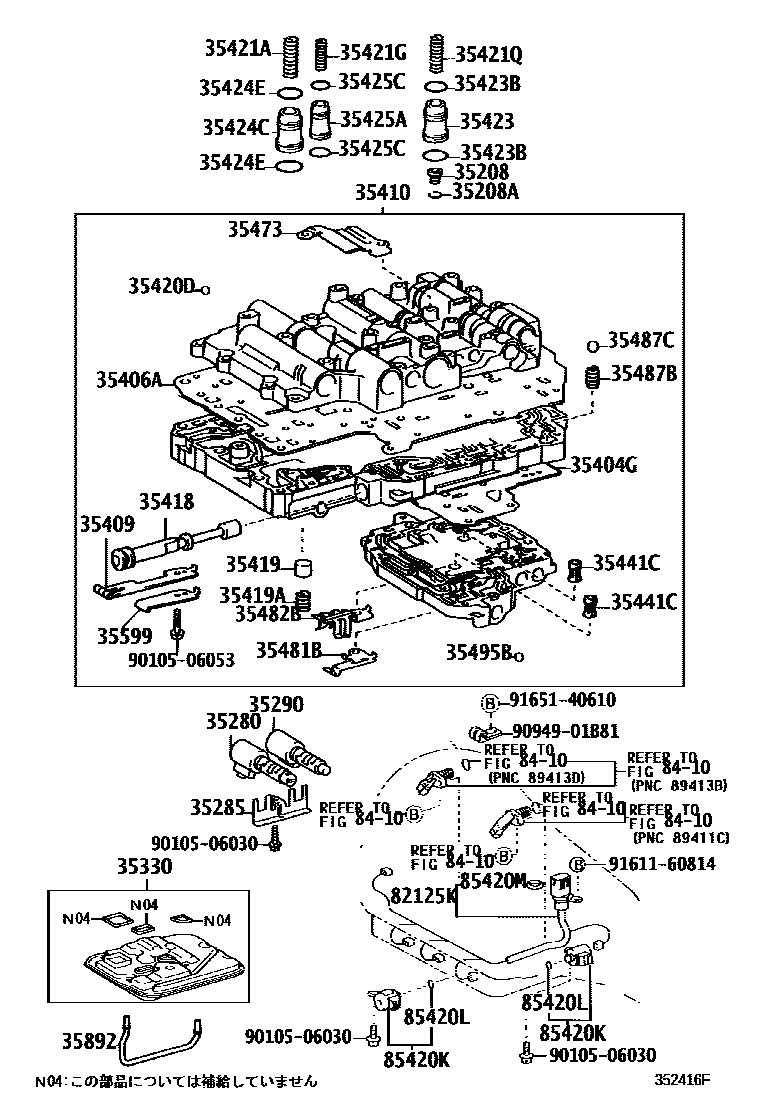

VALVE BODY & OIL STRAINER (ATM)

0001 1A42DE 0002 1A42DE 0003 1A42DE 0004 1A42DE 0005 1A340H 0006 1A340H 0007 1A340H 0008 1A340H 0009 1A650E 0010 1A650E 0011 1A650E 0012 1A650E 0013 1A650E 0014 1A341H 0015 1A341H 0016 1A341H 0017 1A341H 0018 1A341H 0019 1A340H 0020 1A340H 0021 1A340H 0022 1A340H 0023 1A340H 0024 1A340E 0025 1A340E 0026 1A340E 0027 1A340E 0028 1A340E 0029 1A340E 0030 1A340E 0031 1A340E 0032 1A340E 0033 1A340E 0034 1A42DE 0035 1A340H 0036 1A650E 0037 1A341H 0038 1A340H 0039 1A340E 0040 1A340E

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iJZS171,175,177,UZS171,175..5FC199909-200108

main35208-28010iGS171200004-200108

main35208-30010iJZS171,173,179,UZS173..4FC199909-200108

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iJZS177,UZS171,175;GS171,JZS171,173,UZS173..4FC; JZS179;JKS175,JZS171,175..5FC200108-200706

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-22010iGS171200108-200312

main35280-30020iJZS171,179,UZS173..HTWC,TWC,TWT200108-200406

main35280-30040iJKS175,JZS171,175,177,UZS171,175..5FC200108

35285PLATE, SOLENOID LOCK

main35285-22010iGS171200108-200312

main35285-24010iJZS171,173..4FC..(D4,TWC)200108

main35285-24020iJZS171,173..4FC..(D4,TWC)200108

main35285-30040iJZS171..TWT; JZS179,UZS173199909-200108

main35285-30060iJZS171,175,177,UZS171,175..5FC199909-200108

main35285-50010iJZS171..TWT199909-200108

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-14010iUZS173200108-200406

main35290-22010iGS171200004-200108

main35290-30040iJZS171,175,177,UZS171,175..5FC199909-200108

main35290-60020iJZS171,173,179..4FC199909-200108

35330STRAINER ASSY, VALVE BODY OIL

main35330-22020iJZS173200108

main35330-30060iJZS171..4FC..TWC199909-200108

main35330-30070iJZS171,175,177,UZS171,175..5FC199909-200108

main35330-50010iJZS179;JZS171..TWT199909-200108

main35330-53010iGS171200108-200312

35404GPLATE SUB-ASSY, VALVE BODY, NO.2

main35404-22010iGS171200004-200108

main35404-30020iJZS171,175,177,UZS171,175..5FC199909-200108

35406PLATE SUB-ASSY, VALVE BODY

main35406-22020iJZS171..ATH199909-200108

main35406-30200iUZS173199909-200108

main35406-30260iUZS171,175199909-200108

main35406-30270iJZS175,177199909-200108

main35406-30290iJZS179199909-200108

main35406-30300iJZS171..TWT199909-200108

35406APLATE SUB-ASSY, VALVE BODY

main35406-22030iGS171200004-200108

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iJZS171,173,179,UZS173..4FC199909-200108

main35409-22030iGS171200004-200108

main35409-50020iJZS171,175,177,UZS171,175..5FC199909-200108

35410BODY ASSY, TRANSMISSION VALVE

main35410-22690iJZS171..ATH200108

main35410-22730iGS171200004-200108

main35410-30830iUZS173199909-200108

main35410-30890iUZS171,175200108-200406

main35410-3A010iJZS175,177199909-200108

main35410-3A030iJZS179199909-200108

main35410-3A040iJZS171..4FC..TWC199909-200108

main35410-3A050iJZS173199909-200108

main35410-3A060iJZS171..TWT199909-200108

main35410-3A100iGS171..ATHE200108-200312

main35410-3A110iJZS171..4FC..D4200108-200312

main35410-3A120iJZS173200108

main35410-51030iJKS175,JZS175,177200108

35418VALVE, MANUAL

main35418-24010iGS171,JZS171,173..4FC..(HTWC,TWC)199909-200108

main35418-30090iJZS171,175,177,UZS171,175..5FC199909-200108

main35418-50010iJZS179,UZS173199909-200108

35419VALVE, CHECK, NO.1

main35419-50010iGS171200004-200108

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-09093iGS171,JZS17#,UZS17#..D4,HTWC,TWC; JZS171..TWT199909-200108

35420DBALL (FOR LOWER VALVE BODY)

main35496-22030×2iGS171200004-200108

main90360-08003iJZS17#,UZS17#..D4,HTWC,TWC199909-200108

35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

main90501-20162iGS171200004-200108

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-26092iGS171200004-200108

35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)

main90501-23147iGS171200108-200312

main90501-28032iJZS171..TWT200108-200312

35423PISTON, B-2 ACCUMULATOR

main35421-26010iGS171200108-200312

main35423-30030iJKS175,JZS17#,UZS17#200108

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iGS171,JKS175,JZS17#,UZS17#200108-200706

main90301-29011iGS171200004-200108

main90301-31010iJZS17#,UZS17#199909-200108

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iGS171200004-200108

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iGS171200004-200108

main90301-26012iGS171200108-200312

35425APISTON, C-2 ACCUMULATOR

main35425-30020iJZS171,173..4FC..TWC199909-200108

main35425-40010iJZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C199909-200108

main35441-30010iGS171200004-200108

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iGS171200004-200108

main90301-25010iJZS171,173..4FC..TWC199909-200108

main90301-26012iGS171200004-200108

main90301-31010iJZS171,173..4FC..TWC199909-200108

main90903-01001×2iJZS179200108-200312

main90903-01003iJZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C199909-200108

35441CSTRAINER, SOLENOID OIL

main35441-24010iJZS171,173..4FC..TWC199909-200108

main35441-24020iJZS171,173,175,177,UZS171,175..D4,HTWC,TWC199909-200108

main35441-50030×2iGS171,JZS179,UZS173; JZS171,173..4FC..TWC; JZS171,175,177,UZS171,175..5FC199909-200108

35473COVER, TRANSMISSION VALVE BODY

main35473-22020iGS171200004-200108

main35473-50020iJZS171,175,177,UZS171,175..5FC199909-200108

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-22020iGS171200004-200108

main35481-24010iJZS171,173..4FC..(D4,TWC)200306

35482BCLAMP, TEMPERATURE SENSOR

main35482-22020iGS171200004-200108

35487BBALL, CHECK, NO.4

main35487-30010iGS171200004-200108

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iGS171200004-200108

35495BBALL, CHECK, NO.1

main35495-22020×14iJZS171..ATH; JZS175,177; UZS171,175199909-200108

35599COVER, MANUAL DETENT SPRING

main35599-22020iJZS17#,UZS17#199909-200108

main35599-22030iGS171200004-200108

35892TUBE, OVERDRIVE BRAKE

main35892-22010iGS171200004-200108

82125KWIRE, TRANSMISSION

main82125-22250iGS171200108-200312

main82125-22260iJZS173199909-200108

main82125-30460iJZS171,UZS171,175..5FC200108-200706

main82125-30470iJZS171..4FC..D4200108-200312

main82125-30480iJZS171..TWT199909-200108

main82125-31010iJZS179,UZS173200105-200108

main82125-40050iJZS179,UZS173199909-200105

main82125-50040iJKS175,JZS175,177200108-200706

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

85420KSOLENOID ASSY, TRANSMISSION

main35250-30030×2iGS171200108-200312

main35250-30050iJZS171,173..4FC..(D4,TWC)200108

main35250-30070iJZS171,173..ROY,ROYEX200108-200312

NO.2

main35250-30080iJZS171..TWT200108-200312

main35250-30100×3iJZS171..TWT200108-200312

main35250-50010iJKS175,JZS171,175,177,UZS171,175..5FC200108-200706

main35250-50030iJKS175,JZS171,175,177,UZS171,175..5FC200108-200706

main85420-22130×2iGS171200004-200108

main85420-22150iJZS171,173..4FC..TWC199909-200108

main85420-22170iJZS171,173..4FC..TWC199909-200108

main85420-30240iJZS171,175,177,UZS171,175..5FC199909-200108

main85420-30260iJZS171,175,177,UZS171,175..5FC199909-200108

main85420-30270iJZS171,175,177,UZS171,175..5FC199909-200108

main85420-30280iJZS171..TWT199909-200108

main85420-30310×3iJZS171..TWT199909-200108

main85420-50020×2iJZS179,UZS173200108-200406

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004×2iJZS175;JZS171..SED..ROY;JZS171..ATH,ROYEX;JZS173,177,179,UZS17#..SED199909-200004

85420MRING, O(FOR SPEED SENSOR)

main96721-24018iGS171,JKS175,JZS17#,UZS17#200108

9010506030

main90105-06030

9010506053

main90105-06053

9094901B81

main90949-01B81

9161160814

main91611-60814

9165140610

main91651-40610

43 parts on this diagram · 40 diagrams in section
