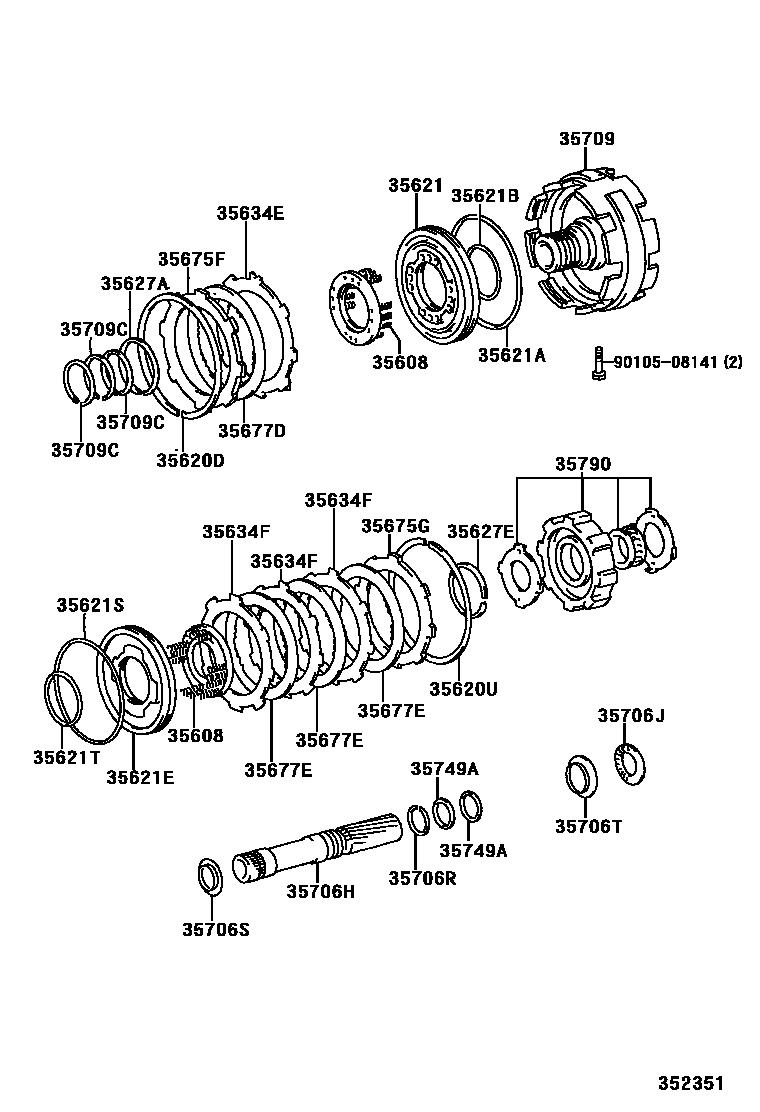

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A42DE 0002 1A340E,A340H,A341H 0003 1A650E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iGS171200108-200312

main35608-22010iGS171200004-200108

main35608-30010iJZS171,173..4FC200108

main35608-50010iJZS179,UZS173199909-200108

35620DRING (FOR BRAKE)

main90521-99139iGS171200108-200312

35620URING (FOR REAR BRAKE)

main90521-99139iGS171200004-200108

35621PISTON, BRAKE, NO.1

main35624-22010iGS171200004-200108

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iGS171200004-200108

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iGS171200004-200108

35621EPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iGS171200004-200108

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99107iGS171200004-200108

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iGS171200004-200108

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iGS171200108-200312

35627ERING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iGS171200004-200108

35634EPLATE, CLUTCH (FOR BRAKE)

main35634-22060iGS171200004-200108

35634FPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22100×2iGS171200108-200312

main35648-30020×3iGS171200004-200108

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22140iGS171200004-200108

35675GFLANGE, BRAKE (FOR REAR BRAKE)

main35675-22140iGS171200108-200312

main35676-22030iGS171200004-200108

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30010×5iJZS171..TWT199909-200108

main35667-30050×5iJZS179200108-200312

main35667-30080×5iUZS173200108-200406

main35667-30100×5iJZS171..TWT200108-200312

main35667-60010×4iJZS171,173..4FC..(D4,TWC)200108

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-30140iGS171200004-200108

35677EDISC, CLUTCH (FOR REAR BRAKE)

main35677-22070×3iGS171200004-200108

main35677-22090×3iGS171200108-200312

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22020iGS171200108-200312

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23003iGS171200004-200108

main90374-27005iUZS173199909-200108

main90374-27009iJZS171,173,179..4FC200108

main90374-30006iJZS171,173,179..4FC199909-200108

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34260iGS171200004-200108

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-43020iGS171200004-200108

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22070iGS171200004-200108

35709SUPPORT SUB-ASSY, CENTER

main35709-28010iGS171200108-200312

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010×3iGS171200004-200108

main35617-28010×3iGS171200108-200312

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iGS171200004-200108

main35749-30010×2iJZS171,173,179,UZS173..4FC200108

35790CLUTCH ASSY, 1 WAY

main35790-22040iGS171200004-200108

main35790-30050iJZS171,173,179..4FC..TWC199909-200108

main35790-30060iJZS171,UZS173..HTWC,TWT199909-200108

main35790-30070iUZS171,175200108-200406

main35790-30080iJKS175,JZS171,175,177..5FC200108

9010508141

main90105-08141

28 parts on this diagram · 3 diagrams in section
