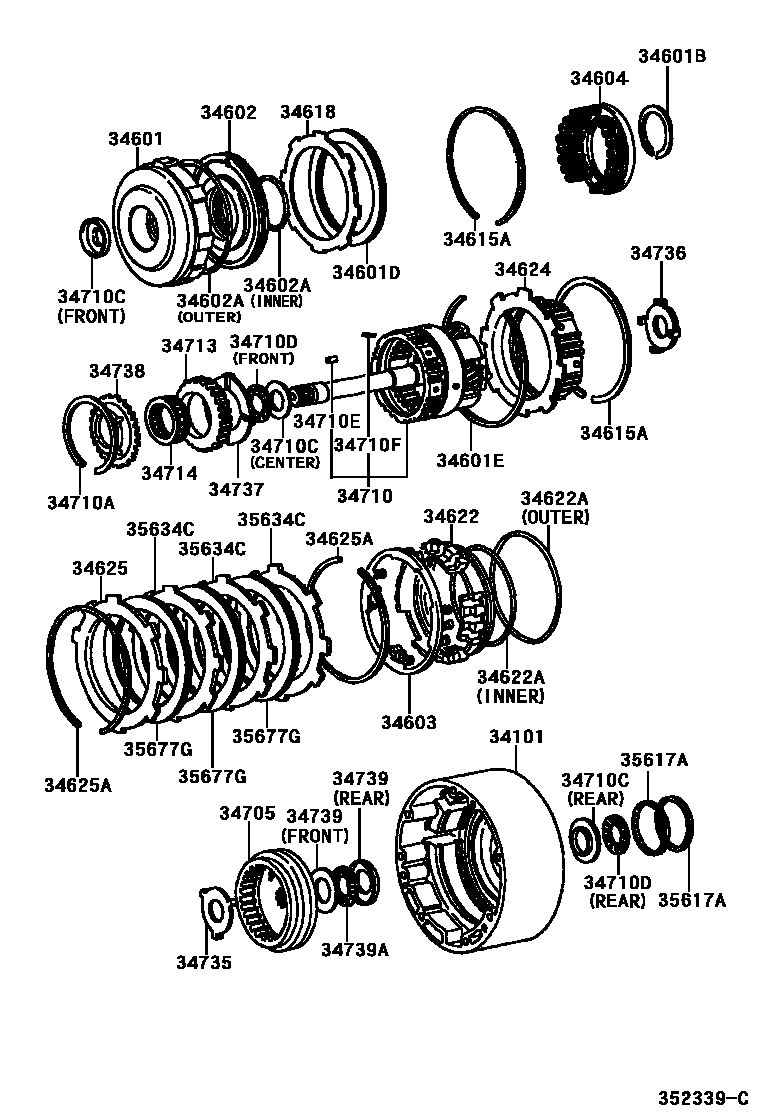

OVERDRIVE GEAR (ATM)

0001 1A42DE 0002 1A341H,A650E 0003 1A340E 0004 1A340E,A340H,A650E

34101CASE SUB-ASSY, OVERDRIVE

main34101-22020iGS171200004-200108

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iGS171200108-200312

main34601-50010iJZS171..TWT199909-200108

main34601-50030iJZS171,173,179,UZS173..4FC..(HTWC,TWC)199909-200108

main34601-50040iJZS171,175,177,UZS171,175..5FC199909-200108

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGS171200108-200312

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30140iGS171200004-200108

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGS171200004-200108

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iGS171200108-200312

main34602-30020iUZS171,175;JZS171,173,179,UZS173..4FC200108

main34602-30040iJZS171,175,177..5FC199909-200108

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iGS171200004-200108

main90301-65006×2iJZS173..ROYEX;JKS175,JZS171,175,179200108-200706

main90301-99058iGS171200108-200312

main90301-99086iJKS175,JZS17#,UZS17#200108-200706

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-22010iGS171200004-200108

main34603-30020iJKS175,JZS171,175,177,UZS171,175..5FC200108

main34603-30030iJZS171,173,179,UZS173..4FC199909-200108

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iGS171200108-200312

main34604-30010iJZS17#,UZS17#199909-200108

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iJKS175,JZS17#,UZS17#200108-200706

main34615-22020iJZS17#,UZS17#200103-200108

main34615-22030iJKS175,JZS17#,UZS17#200108-200706

main34615-22040iJKS175,JZS17#,UZS171,175200108-200706

main34615-22050iJZS17#,UZS171,175200103-200108

main34615-30020iJZS17#,UZS17#199909-200007

main34615-30030iJZS17#,UZS17#199909-200007

main34615-30040iJZS17#,UZS17#199909-200007

main34615-30050iJZS17#,UZS17#199909-200103

main34615-30060iJZS17#,UZS17#200007-200103

main34615-30070iJZS175;JZS171,177,UZS171,175..A,ATH,ATHV,C199909-200007

main34615-50010iJZS17#,UZS171,175199909-200103

main34615-50020iJZS17#,UZS171,175199909-200103

main34615-50030iJKS175,JZS17#,UZS17#200108-200706

main34615-50040iJZS17#,UZS17#200007-200108

main34615-50050iJZS17#,UZS17#200007-200108

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iGS171,JZS17#,UZS17#199909-200108

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iGS171200004-200108

34622PISTON, OVERDRIVE BRAKE

main34622-22020iGS171200004-200108

main34622-24010iJZS171..TWT199909-200108

main34622-30090iJZS171,173,179..4FC..(D4,TWC)200108

main34622-30100iUZS173199909-200108

main34622-30130iUZS171,175199909-200108

main34622-30140iJKS175,JZS171,175,177..5FC200108

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99088iJKS175,JZS17#,UZS17#200108

main90301-99090iJZS17#,UZS17#199909-200108

main90301-99103iGS171200108-200312

main90301-99111iGS171200108-200312

34624HUB, OVERDRIVE BRAKE

main34624-26010iGS171200108-200312

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iGS171200004-200108

main34625-22030iJZS17#,UZS17#200103-200108

main34625-22040iJKS175,JZS17#,UZS17#200108

main34625-22050iJZS17#,UZS17#200103-200108

main34625-22060iJKS175,JZS17#,UZS17#200108

main34625-30120iJZS17#,UZS17#199909-200103

main34625-30130iJZS17#,UZS17#199909-200103

main34625-30140iJZS17#,UZS17#199909-200007

main34625-30150iJZS17#,UZS17#199909-200007

main34625-30160iJZS17#,UZS17#199909-200007

main34625-30170iJZS17#,UZS17#199909-200103

main34625-30180iJZS17#,UZS17#199909-200103

main34625-50020iJZS17#,UZS17#200007-200108

main34625-50030iJZS17#,UZS17#200007-200108

main34625-50040iJZS17#,UZS17#200007-200108

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004×2iGS171200108-200312

main90521-99027iJKS175,JZS17#,UZS17#200108

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iGS171200004-200108

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-22030iJZS171,173..4FC..(D4,TWC)200112-200309

main34710-22031iJZS171,173..4FC..(D4,TWC)200309

main34710-22040iGS171200108-200312

main34710-30030iJZS171..TWT199909-200108

main34710-30040iUZS173199909-200108

main34710-30041iUZS173200309-200406

main34710-30070iUZS171,175199909-200108

main34710-30071iUZS171,175200309-200406

main34710-30090iJZS171,173..4FC..(D4,TWC)200108-200112

main34710-30091iJZS171,179..TWC,TWT200309-200312

main34710-30100iJKS175,JZS171,175,177..5FC200108-200309

main34710-30101iJKS175,JZS171,175,177..5FC200309

main34710-60020iJZS171,175,177..5FC199909-200108

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iGS171200108-200312

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iGS171200004-200108

main34739-30041iGS171200108-200312

main35789-22010iGS171200004-200108

main35789-30050iJZS17#,UZS17#199909-200108

main35789-30051iJKS175,JZS17#,UZS17#200108-200309

main35789-30052iJKS175,JZS17#,UZS17#200309-200706

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGS171200004-200108

main90374-24001iGS171200108-200312

main90374-24004iJKS175,JZS17#,UZS17#200108-200309

main90374-25005iJZS17#,UZS17#199909-200108

main90374-31005iJZS17#,UZS17#199909-200108

main90374-31008iJZS173,177,UZS17#..A,ATH,C; JZS173..ROYEX;JKS175,JZS171,175,179200309-200706

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iGS171200004-200108

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iGS171200004-200108

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iGS171200004-200108

main34713-32010iJZS17#,UZS17#199909-200108

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30030iGS171200108-200312

main35791-30060iJZS17#..D4,TWC199909-200108

main35791-50010iJZS171,UZS17#..HTWC,TWT199909-200108

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iGS171200108-200312

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGS171200004-200108

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iGS171200004-200108

main34737-30030iJZS171,173,179,UZS173..4FC199909-200108

main34737-50010iJKS175,JZS171,175,177,UZS171,175..5FC200108

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iGS171200004-200108

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGS171200004-200108

main35789-22030iGS171200004-200108

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGS171200004-200108

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020×2iUZS173200108-200406

main35617-43010×2iGS171200108-200312

main35617-50010×2iJZS173,177,UZS171,175..A,ATH,C; JZS173..ROYEX;JKS175,JZS171,175..D4200108-200706

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iJZS17#,UZS173; UZS171,175199909-200108

main34616-50010iUZS171,175200108-200406

main34634-30010iGS171200108-200312

main35634-30080iGS171200108-200312

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-43010×3iGS171200004-200108

35 parts on this diagram · 4 diagrams in section
