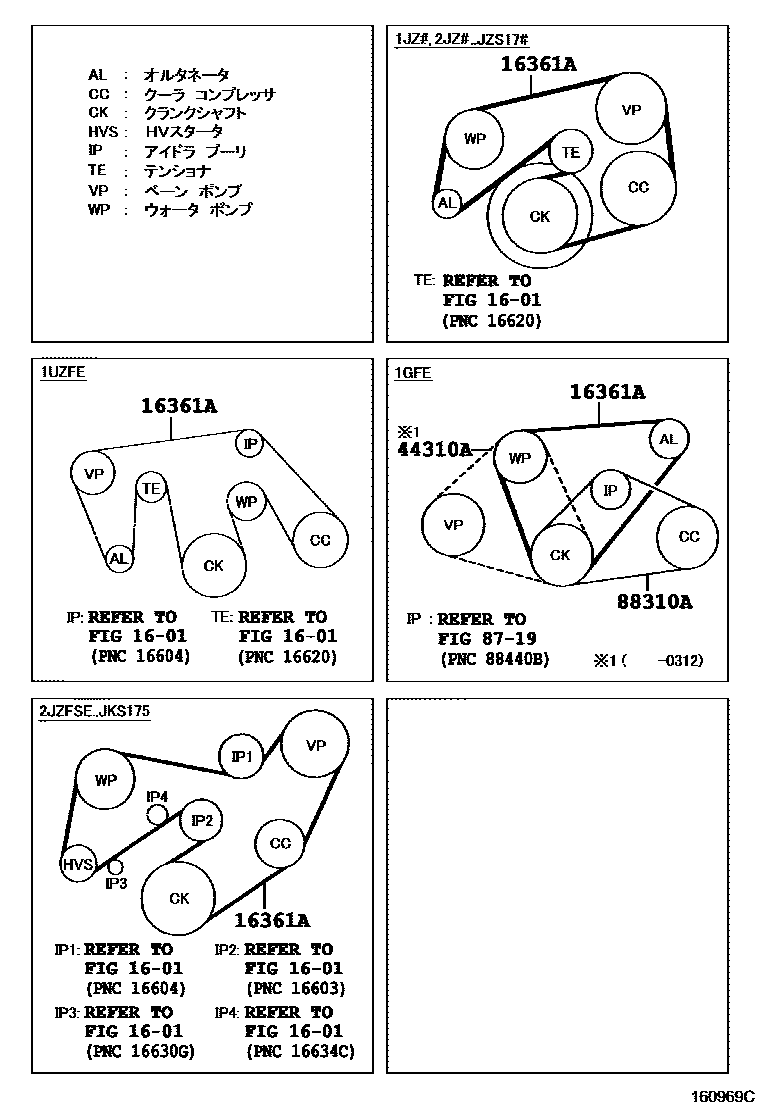

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02310i1JZGTE..JZS171200108-200312

main90916-02412i1JZGE,2JZGE..JZS173,179200108-200406

main90916-02441i1UZFE..UZS17#199909-200108

main90916-02471i1GFE..GS171200108-200312

main90916-02485i2JZFSE..JZS175,177200108-200406

main90916-02514i1JZFSE..JZS171200108-200406

main90916-02525i2JZFSE..JKS175200108-200312

main90916-02593i1UZFE..UZS17#200403-200406

main90916-02630i1JZFSE,2JZFSE..JZS171,175200407

main99364-81070i1GFE..GS171200108-200111

main99366-D1930i1JZGE..JZS173200411

44310ABELT, V(FOR VANE PUMP)

main99363-00890iGS171200004-200108

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-30880iGS171200004-200108

main99364-90880iGS171200004-200108

5 parts on this diagram · 1 diagram in section
