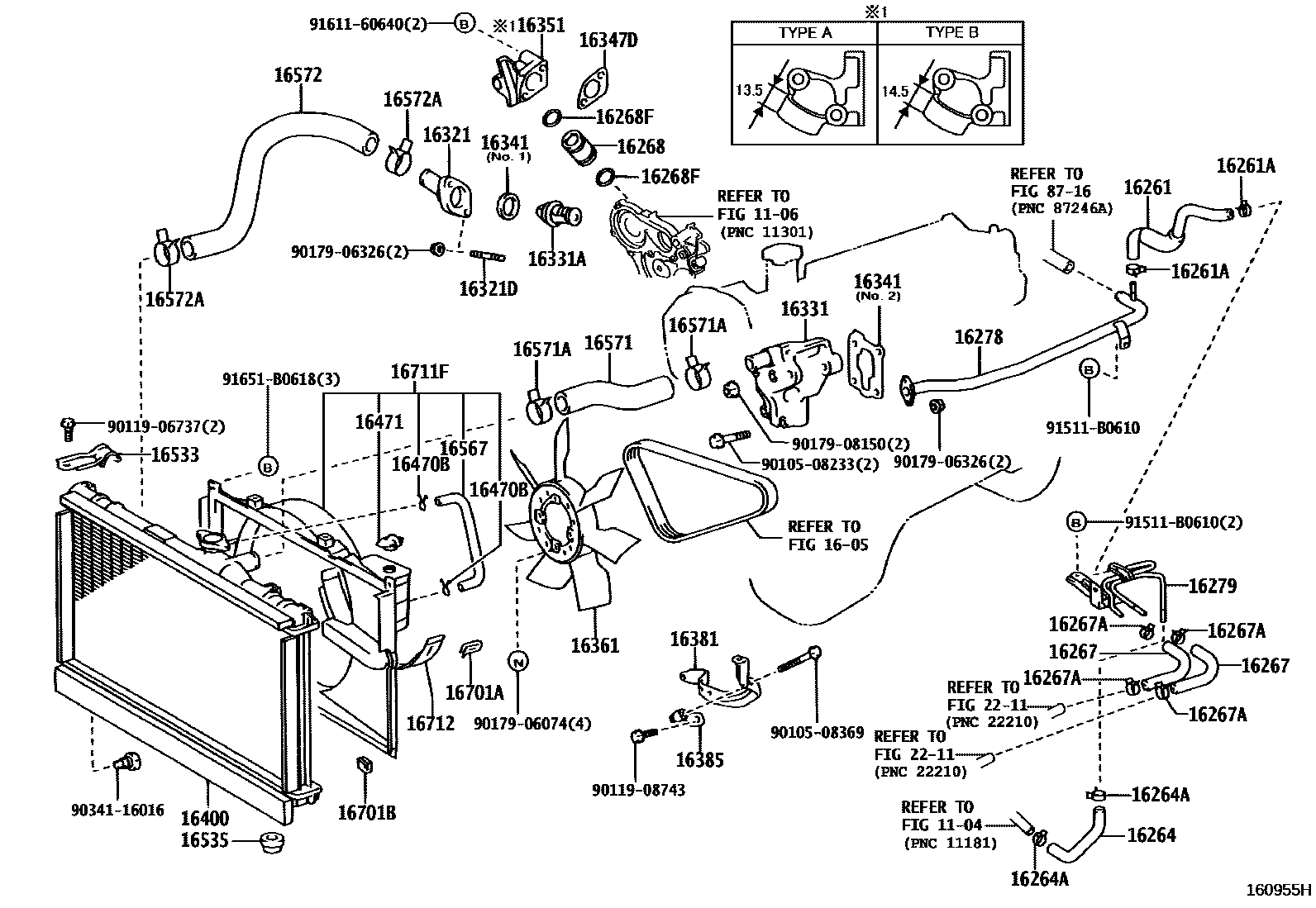

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

1104

1106

1605

16261HOSE, WATER BY-PASS

main16261-46020i1JZGE,2JZGE..JZS173,179199909-200108

main16261-46060i2JZFSE..JZS175,177199909-200008

sub16261-46070

main16261-46070i1JZFSE,2JZFSE..JKS175,JZS171,175,177200008-200108

main16261-50090i1UZFE..UZS17#199909-200406

main16261-70090i1GFE..GS171200004-200312

main16261-88410i1JZGTE..JZS171199909-200312

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1GFE..GS171200004-200108

sub96135-51300

main90467-13050i1JZGE,2JZ#..JZS17#199909-200108

sub96135-51300

main90467-20005i1JZGTE..JZS171199909-200108

sub96134-41900

main96134-41900i1JZGTE..JZS171200108-200312

main96135-51300i1GFE..GS171200108-200312

16264HOSE, WATER BY-PASS, NO.2

main16264-46041i1JZGE,2JZGE..JZS173,179199909-200108

main16264-46050i2JZFSE..JZS175,177199909-200108

main16264-46071i1JZFSE,2JZFSE..JKS175,JZS171,175,177200108

main16264-70100i1GFE..GS171200004-200101

sub99555-10200

main16264-88401i1JZGTE..JZS171199909-200312

main99555-10200i1GFE..GS171200101-200312

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GFE..GS171200004-200108

sub96135-51300

main90467-13050i1JZGE,2JZ#..JZS17#199909-200108

sub96135-51300

main90467-20005i1JZGTE..JZS171199909-200108

sub96134-41900

main96134-41900i1JZGTE..JZS171200108-200312

main96135-51300i1JZFSE,1JZGE,2JZ#..JKS175,JZS17#200108-200312

16267HOSE, WATER BY-PASS, NO.3

main16267-46040i1JZFSE..JZS171200108

main16267-70060i1GFE..GS171200004-200312

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90466-21001i1JZFSE..JZS171200108

main90467-13001i1GFE..GS171200004-200108

sub96135-51300

main96135-51300i1GFE..GS171200108-200312

16268PIPE, WATER BY-PASS, NO.1

main16268-46011i1JZFSE,1JZGE,2JZ#..JKS175,JZS17#199909-200108

main16268-70031i1GFE..GS171200004-200312

main16268-88400i1JZGTE..JZS171199909-200312

16268FRING, O(FOR WATER BY-PASS PIPE)

main90301-17009i1GFE..GS171200108-200208

main90301-17009i1GFE..GS171200004-200108

main90301-17016i1GFE..GS171200208-200312

main96761-24019i1UZFE..UZS17#199909-200406

main96761-24022i1JZGE,2JZ#..JZS17#199909-200108

main96761-24023i1JZGTE..JZS171199909-200312

16278PIPE, WATER BY-PASS, NO.2

main16278-46040i1JZGE,2JZGE..JZS173,179199909-200108

main16278-46051i1JZGE..JZS171199909-200108

main16278-46070i2JZFSE..JKS175,JZS175,177199909-200407

sub16278-46071

main16278-46071i2JZFSE..JZS175200407

main16278-46080i1JZFSE..JZS171200108

main16278-70080i1GFE..GS171200004-200312

main16278-88411i1JZGTE..JZS171199909-200312

16279PIPE, WATER BY-PASS, NO.3

main16279-46030i1JZFSE..JZS171200108

main16279-70080i1GFE..GS171200004-200312

16321INLET, WATER

main16321-46040i1JZGE,2JZ#..JZS17#199909-200108

main16321-46060i2JZFSE..JKS175200108-200312

main16321-50020i1UZFE..UZS17#199909-200406

main16321-70030i1GFE..GS171200004-200312

main16321-88410i1JZGTE..JZS171199909-200312

16321DBOLT, STUD(FOR WATER INLET)

main16193-63010i1GFE..GS171200004-200312

16331OUTLET, WATER

main16304-70020i1GFE..GS171200004-200312

main16304-88410i1JZGTE..JZS171199909-200312

main16331-46022i1JZGE..JZS171,173199909-200108

main16331-46041i2JZGE..JZS179199909-200312

main16331-46090i2JZFSE..JKS175,JZS175,177199909-200108

main16331-46110i1JZFSE..JZS171200108

16331ATHERMOSTAT

main90916-03081i1GFE..GS171200004-200312

main90916-03093i1JZGE,1JZGTE,2JZ#..JKS175,JZS171,173,179199909-200108

main90916-03100i1UZFE..UZS17#199909-200406

main90916-03126i1JZFSE,2JZFSE..JZS171,175,177199909-200108

sub90916-03142

16341GASKET, WATER OUTLET

main16341-35010i1GFE..GS171200004-200312

main16341-70040i1GFE..GS171200004-200312

16347DGASKET, WATER BY-PASS

main16347-70021i1GFE..GS171200004-200312

16351OUTLET, WATER BY-PASS

main16351-46022i2JZGE..JZS179199909-200312

main16351-46050i1JZGE..JZS171,173199909-200108

main16351-70010i1GFE..GS171200004-200108

sub16351-70011

main16351-70010i1GFE..GS171200108-200207

sub16351-70011

main16351-70011i1GFE..GS171200207-200312

16361FAN

main16361-46040i1JZGE,2JZGE..JZS171,173,179..ATH,ROY,ROYEX199909-200108

main16361-46040i1JZGE..JZS171..ATHE200008-200108

main16361-46050i1JZFSE,2JZFSE..JZS171,175,177199909-200108

main16361-70040i1GFE..GS171200004-200312

16381BAR, FAN BELT ADJUSTING

main16381-70060i1GFE..GS171200004-200312

16385SLIDER, FAN BELT ADJUSTING

main16385-70030i1GFE..GS171200004-200312

16400RADIATOR ASSY

main16400-46550i1JZGE,2JZGE..JZS173,179199909-200312

main16400-46630i2JZFSE..JZS175..WG199909-200312

main16400-46640i1GFE..GS171199909-200312

main16400-46650i1JZGTE..JZS171199909-200312

main16400-46660i2JZFSE..JZS177199909-200406

main16400-46740i2JZFSE..JKS175200108-200312

main16400-46760i1JZFSE..JZS171..SED200108-200312

main16400-50220i1UZFE..UZS17#199909-200406

16470TANK ASSY, RADIATOR RESERVE

main16470-46160i1JZGTE..JZS171199909-200312

main16470-46180i2JZFSE..JKS175200108-200312

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1GFE..GS171199909-200406

16471CAP SUB-ASSY, RESERVE TANK

main16376-50030i1UZFE..UZS17#199909-200108

main16405-46140i1JZGTE..JZS171199909-200009

sub16405-46160

main16405-46160i1JZGTE..JZS171200009-200312

main16405-46170i2JZFSE..JKS175200108-200312

main16405-46180i1JZFSE,2JZFSE..JZS171,175200208-200706

main16405-46200i1UZFE..UZS17#200108-200406

main16405-50030i1UZFE..UZS17#200108-200406

main16471-23010i1JZFSE,2JZFSE..JZS171,175199909-200706

main16471-70020i1GFE..GS171199909-200406

16533SUPPORT, RADIATOR, UPPER

main16505-46080i1JZFSE,1JZGE,2JZFSE..JZS171,173,175..WG199909-200312

main16505-46090i1UZFE..UZS17#199909-200406

16535SUPPORT, RADIATOR, LOWER

main90480-40010i1JZ#,2JZ#..JZS171,173,175,179199909-200206

main90480-40016i2JZFSE..JZS177199909-200406

main90480-40022i1GFE..GS171199912-200312

16567HOSE(FOR RADIATOR RESERVE TANK)

main16565-70030i1GFE..GS171200004-200312

main16567-46040i1JZGTE..JZS171199909-200312

16571HOSE, RADIATOR, INLET

main16571-46250i1JZFSE,2JZFSE..JZS171,175..WG199909-200312

main16571-46260i1JZGE..JZS171199909-200108

main16571-46270i1JZGE,2JZGE..JZS173,179..SED199909-200312

main16571-46280i1JZGTE..JZS171199909-200312

main16571-46290i2JZFSE..JZS177199909-200406

main16571-46380i2JZFSE..JKS175200108-200312

main16571-70340i1GFE..GS171200004-200312

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i1GFE..GS171200108-200706

main90467-37006i1JZ#,2JZ#..JZS17#199909-200108

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-46240i1JZFSE,2JZFSE..JZS171,175..SED199909-200312

main16572-46250i1JZGE..JZS173..WG199909-200312

main16572-46260i1JZGTE..JZS171199909-200312

main16572-46270i2JZFSE..JZS177199909-200406

main16572-46320i2JZFSE..JKS175200108-200312

main16572-70270i1GFE..GS171200004-200312

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41003i1JZGTE..JZS171199911-200307

main90466-41003i2JZFSE..JZS177200201-200308

main90466-41007i1JZ#,2JZ#..JKS175,JZS171,173,175,179200308-200409

main90466-41008i2JZFSE..JZS177200308-200406

main90467-37005i1JZFSE,1JZGE,2JZ#..JKS175,JZS171,173,175,179200108-200706

main90467-37006i1GFE..GS171200004-200108

sub90467-37005

main90467-37006i1JZ#,2JZ#..JZS171,173,175,179199909-200108

sub90467-37005

main90467-41007i2JZFSE..JZS177199909-200201

sub90467-41002

main90467-41007i1JZ#,2JZ#..JZS171,173,175,179199909-199910

sub90467-41002

main96136-54801i1JZ#,2JZFSE..JZS17#200410-200706

16701ACLIP(FOR FAN SHROUD)

main90468-05109i1JZFSE,1JZGE,2JZ#..JZS171,173,175,179..SED199909-200406

main90468-06013i1GFE..GS171200004-200312

16701BCUSHION, FAN SHROUD

main90541-11002i1GFE..GS171199909-200312

16711SHROUD, FAN

main16711-46310i1JZGTE..JZS171199909-200312

main16711-46420i2JZFSE..JKS175200108-200312

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-46290i1JZGE..JZS171199909-200108

main16711-46300i1JZFSE,2JZFSE..JZS171,175199909-200706

main16711-46320i2JZFSE..JZS177199909-200406

main16711-46330i1JZGE,2JZGE..JZS173,179199909-200706

main16711-50100i1UZFE..UZS17#199909-200406

main16711-70210i1GFE..GS171200004-200312

16712SHROUD, FAN, NO.2

main16702-46010i1JZFSE,1JZGE,2JZFSE..JZS171,173,175..WG199909-200312

main16702-46030i2JZFSE..JZS177199909-200406

main16712-70070i1GFE..GS171200004-200312

2211

8716

9010508233

main90105-08233

9010508369

main90105-08369

9011906737

main90119-06737

9011908743

main90119-08743

9017906074

main90179-06074

9017906326

main90179-06326

9017908150

main90179-08150

9034116016

main90341-16016

91511B0610

main91511-B0610

9161160640

main91611-60640

91651B0618

main91651-B0618

52 parts on this diagram · 14 diagrams in section
