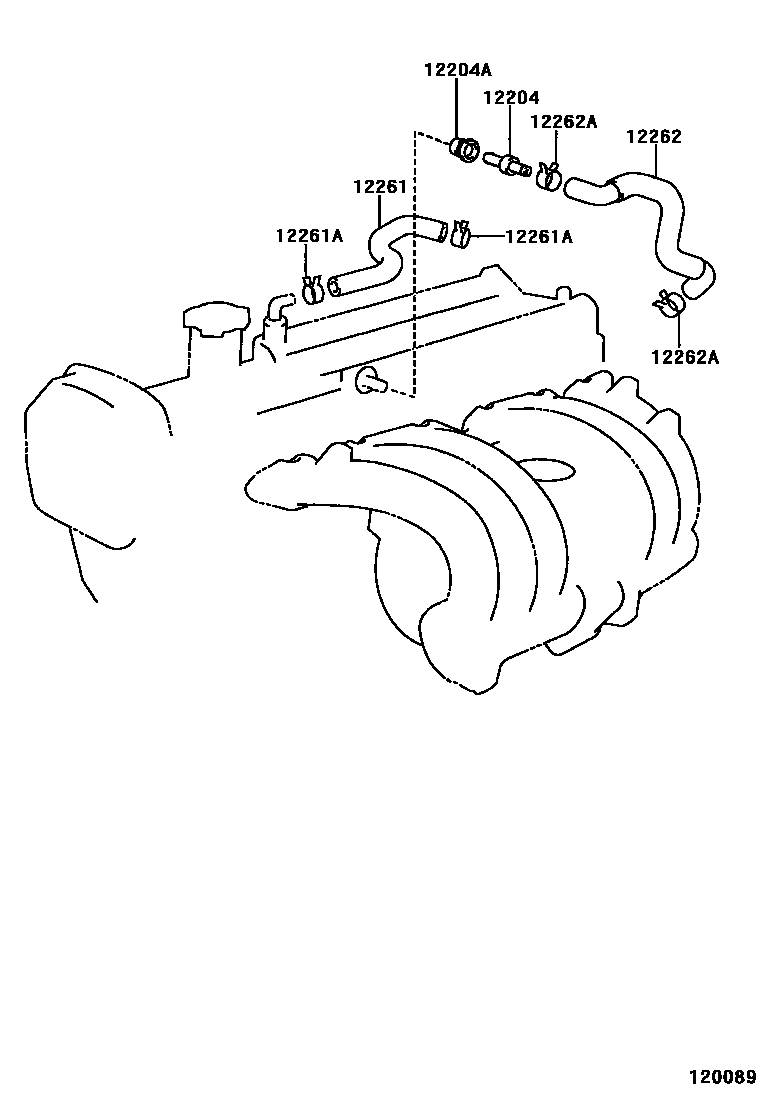

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

12204VALVE SUB-ASSY, VENTILATION

main12204-46030i1JZGE,2JZGE..JZS171,173,179199909-200105

main12204-46031i1JZGE,2JZGE..JZS171,173,179200105-200108

main12204-46040i2JZFSE..JZS175,177199909-200108

main12204-50020i1UZFE..UZS17#199909-200406

main12204-70020i1GFE..GS171200004-200312

main12204-88402i1JZGTE..JZS171199909-200312

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1GFE..GS171199909-200406

main90480-18008i1JZGTE..JZS171199909-200312

12261HOSE, VENTILATION

main12261-46050i1JZGE,2JZGE..JZS171,173,179199909-200105

sub12261-46051

main12261-46051i1JZGE,2JZGE..JZS171,173,179200105-200108

main12261-46060i2JZFSE..JZS175,177199909-200010

main12261-46070i1JZFSE,2JZFSE..JKS175,JZS171,175,177200010-200108

main12261-50040i1UZFE..UZS17#199909-200406

main12261-70080i1GFE..GS171200004-200312

main12261-88401i1JZGTE..JZS171199909-200312

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i1GFE..GS171199909-200312

main90467-14037i1JZGTE..JZS171199909-200312

main90467-15021i1UZFE..UZS17#199909-200406

12262HOSE, VENTILATION, NO.2

main12262-46090i1JZGE..JZS173..WG199909-200312

main12262-46100i1JZFSE,2JZFSE..JKS175,JZS171,175,177199909-200110

main12262-46101i1JZFSE,2JZFSE..JKS175,JZS171,175..SED200111-200406

main12262-50020i1UZFE..UZS17#199909-200008

main12262-50060i1UZFE..UZS17#200008-200406

main12262-70050i1GFE..GS171200004-200312

main12262-88400i1JZGTE..JZS171199909-200312

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-15021i1UZFE..UZS17#199909-200008

main90467-17011i1UZFE..UZS17#199909-200008

sub96134-51700

main90467-18003i1GFE..GS171199909-200406

main90467-20010i1UZFE..UZS17#200008-200406

6 parts on this diagram · 5 diagrams in section
