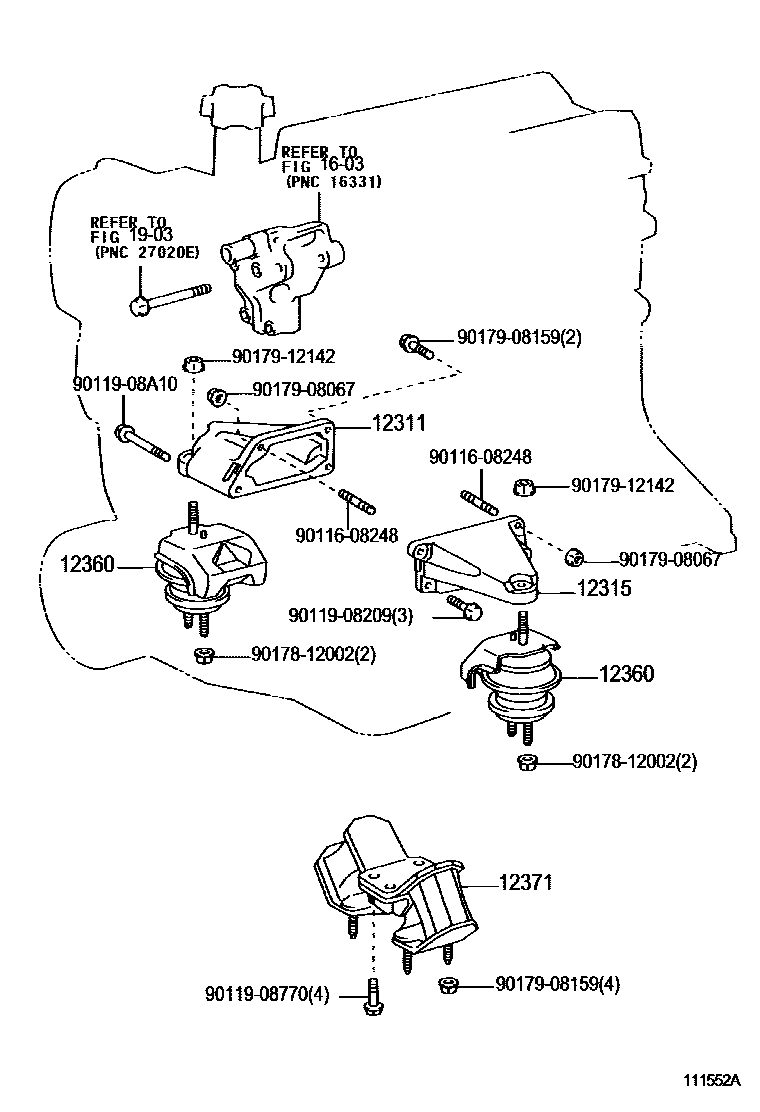

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46100i1JZGE,2JZGE..JZS173,179199909-200108

main12311-46140i1JZFSE,1JZGTE,2JZFSE..JKS175,JZS171,175,177200108

main12311-46150i1JZGE,2JZGE..JZS173,179200108

main12311-50050i1UZFE..UZS173200108-200406

main12311-50070i1UZFE..UZS171,175200108-200406

main12311-70150i1GFE..GS171200004-200108

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46100i1JZGE,2JZGE..JZS173,179199909-200108

main12315-46120i1JZFSE,1JZGTE,2JZFSE..JKS175,JZS171,175,177200108

main12315-46130i1JZGE,2JZGE..JZS173,179200108

main12315-50040i1UZFE..UZS173200108-200406

main12315-50070i1UZFE..UZS171,175200108-200406

main12315-70130i1GFE..GS171200004-200108

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46080i1JZGE,2JZGE..JZS173,179199909-200108

main12360-46180×2i1JZGE,2JZFSE..JZS171,175,177199909-200108

main12360-46200×2i1JZGTE..JZS171199909-200108

main12360-46220i1JZGE,2JZGE..JZS173,179200108

main12360-46230×2i2JZFSE..JKS175200108-200312

main12360-70040×2i1GFE..GS171200108-200312

main12380-46030i1JZGE,2JZGE..JZS173,179199909-200108

main12380-46060i1JZGE,2JZGE..JZS173,179200108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46050i1GFE..GS171200108-200312

main12371-46130i1JZGE,2JZGE..JZS173,179200108-200111

main12371-46200i1JZFSE,2JZFSE..JZS171,175..WG200108

main12371-46210i1JZ#,2JZFSE..JZS171,175199909-200104

main12371-46240i1JZGE..JZS173..WG200111

main12371-50051i1UZFE..UZS173200108-200406

main12371-50110i1UZFE..UZS171,175200108-200406

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1903ALTERNATOR

→ Go to FIG 19-03

9011608248

main90116-08248

9011908209

main90119-08209

9011908770

main90119-08770

9011908A10

main90119-08A10

9017812002

main90178-12002

9017908067

main90179-08067

9017908159

main90179-08159

9017912142

main90179-12142

14 parts on this diagram · 6 diagrams in section
