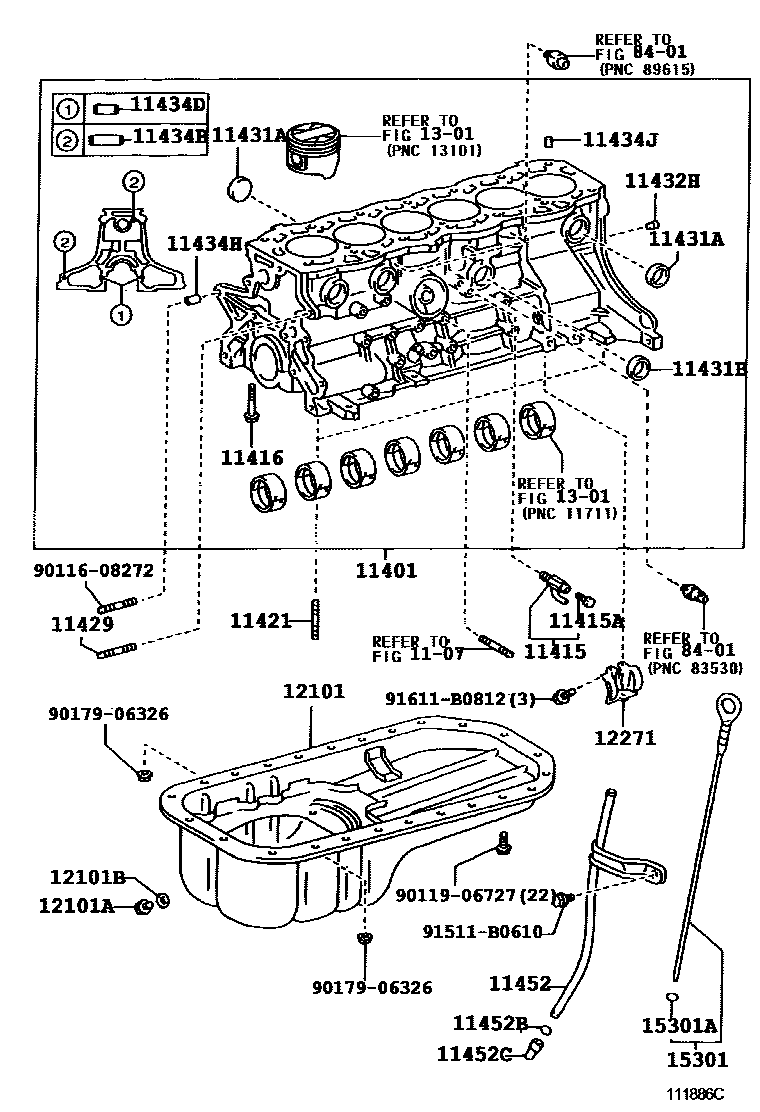

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1107

11401BLOCK SUB-ASSY, CYLINDER

main11401-49647i1JZGE..JZS171199909-200006

sub11401-49648

sub11444-46010

main11401-49648i1JZGE..JZS171200006-200103

sub11401-49725

main11401-49657i1JZGTE..JZS171199909-200103

sub11401-49658

main11401-49658i1JZGTE..JZS171200103-200312

main11401-49687i1JZGE..JZS173199909-200103

sub11401-49688

sub11444-46010

main11401-49688i1JZGE..JZS173200103-200501

sub11401-49765

main11401-49695i2JZGE..JZS179199909-200103

sub11401-49696

main11401-49696i2JZGE..JZS179200103-200312

main11401-49705i2JZFSE..JZS175,177199909-200103

sub11401-49706

main11401-49706i2JZFSE..JZS175,177200103-200501

sub11401-49707

main11401-49707i2JZFSE..JZS175200501

main11401-49725i1JZFSE..JZS171200103-200501

sub11401-49726

main11401-49726i1JZFSE..JZS171200501

main11401-49765i1JZGE..JZS173200501

main11401-59655i1UZFE..UZS171,175199909-200406

main11401-59665i1UZFE..UZS173199909-200406

main11401-80017i1GFE..GS171200004-200312

sub11401-80711

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i1GFE..GS171200004-200312

sub90910-09129

main90910-09095i1UZFE..UZS17#199909-200406

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1GFE..GS171199909-200406

main90910-09102i1JZ#,2JZ#..JKS175,JZS17#199909-200108

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i1GFE..GS171200004-200312

main90910-02104i1JZ#,2JZ#..JKS175,JZS17#199909-200108

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i1GFE..GS171200004-200312

main90116-06098i1UZFE..UZS171,175199909-200406

main90126-08031i1UZFE..UZS17#199909-200406

11429BOLT, STUD(FOR ALTERNATOR BRACKET)

main90116-10051i1GFE..GS171200004-200312

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i1JZ#,2JZ#..JZS17#199909-200108

main96411-43500i1GFE..GS171200004-200312

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i1JZ#,2JZ#..JKS175,JZS17#199909-200108

main96411-44000i1GFE..GS171200004-200312

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-51005i1JZGTE..JZS171199909-200312

main90344-53015i1GFE..GS171200004-200312

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i1JZGTE..JZS171199909-200406

main90250-10192i1JZFSE,1JZGE,2JZ#..JKS175,JZS17#199909-200108

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1JZGE,2JZ#..JZS17#199909-200406

main90250-06015i1JZGTE..JZS171199909-200312

11434HPIN, RING (FOR TIMING BELT COVER SET)

main90253-11021i1GFE..GS171200004-200312

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i1GFE..GS171200004-200312

main90253-14003i1JZ#,2JZ#..JZS17#199909-200108

11452GUIDE, OIL LEVEL GAGE

main11452-46010i1JZGE,2JZFSE..JZS171,175,177199909-200108

main11452-46110i1JZGE,2JZGE..JZS173,179199909-199912

main11452-46111i1JZGE,2JZGE..JZS173,179199912-200108

main11452-50090i1UZFE..UZS171,175199909-200007

main11452-50091i1UZFE..UZS171,175200007-200401

main11452-50092i1UZFE..UZS171,175200401-200406

main11452-50100i1UZFE..UZS173199909-200401

main11452-50101i1UZFE..UZS173200401-200406

main11452-70060i1GFE..GS171200004-200312

main11452-88402i1JZGTE..JZS171199909-200312

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1UZFE..UZS17#199909-200406

11452CUNION(FOR OIL LEVEL GAGE GUIDE)

main11459-70010i1GFE..GS171200004-200312

12101PAN SUB-ASSY, OIL

main12101-46032i1JZGE,2JZGE..JZS173,179199909-200108

main12101-50021i1UZFE..UZS173199909-200406

main12101-70090i1GFE..GS171200004-200312

main12111-46062i1JZGE,2JZFSE..JZS171,175,177199909-200108

main12111-46112i1JZGTE..JZS171199909-200312

main12111-50060i1UZFE..UZS171,175199909-200406

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1GFE..GS171200004-200706

main90341-12023i1UZFE..UZS17#199909-200406

main90341-12026i1JZ#,2JZ#..JZS17#199909-200108

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1UZFE..UZS17#199909-200406

12271SCREEN, OIL SEPARATOR

main12271-70010i1GFE..GS171200004-200312

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-46023i1JZGE,2JZFSE..JZS171,175,177199909-200108

main15301-46050i1JZGE,2JZGE..JZS173,179199909-199912

main15301-46051i1JZGE,2JZGE..JZS173,179199912-200108

main15301-50050i1UZFE..UZS171,175199909-200406

main15301-50090i1UZFE..UZS173199909-200406

main15301-70100i1GFE..GS171200004-200312

main15301-88404i1JZGTE..JZS171199909-200312

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1JZ#,2JZFSE..JZS171,175,177199909-200312

8401

9011608272

main90116-08272

9011906727

main90119-06727

9017906326

main90179-06326

91511B0610

main91511-B0610

91611B0812

main91611-B0812

30 parts on this diagram · 7 diagrams in section
