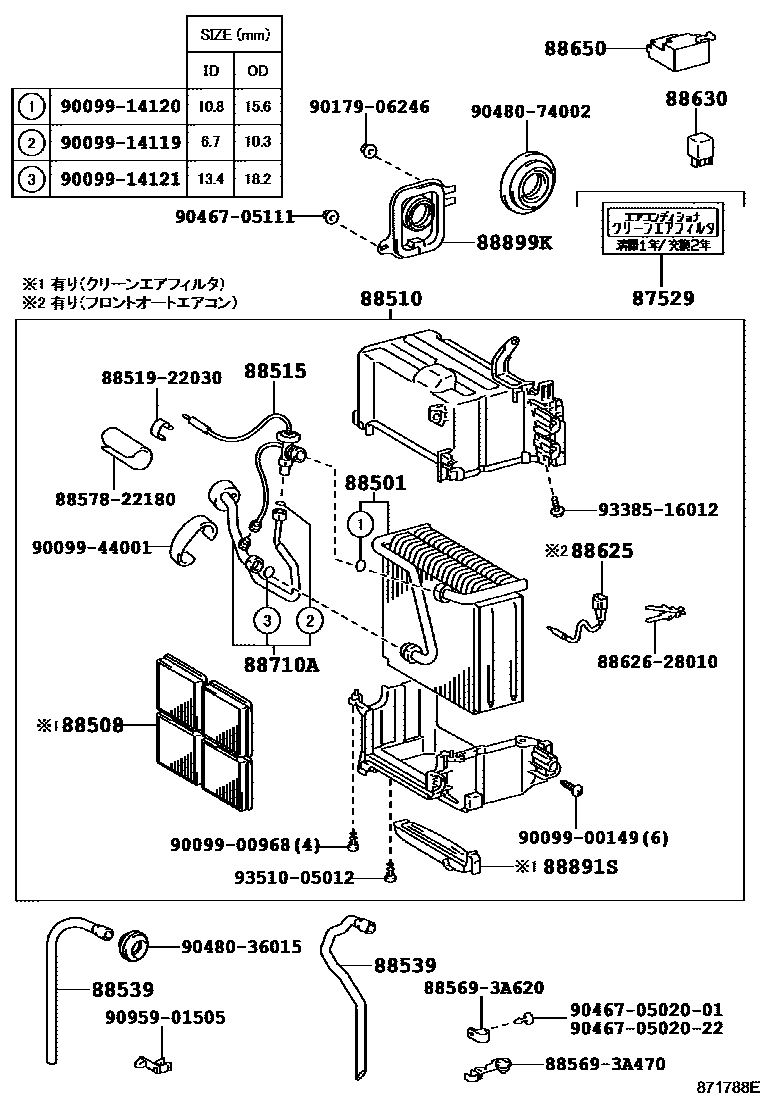

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1�� 0003 1�� (DOP) 0004 1

87529PLATE, AIR FILTER CAUTION

main87529-50020iGS151,JZS15#,LS151,UZS15#199707

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30860iJZS153,155,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT; JZS153..SALEX199609-199610

main88501-30870iGS151,JZS151,153,LS151199508-199609

88508FILTER SUB-ASSY, CLEAN AIR

main88508-30020×2iGS151,JZS15#,LS151,UZS15#199508-200108

88510UNIT ASSY, COOLER

main88510-3F230iUZS15#199508-199707

main88510-3F240iUZS15#199508-199707

main88510-3F250iJZS155..A,E199508-199707

main88510-3F260iJZS155..A,E199508-199707

main88510-3F270iJZS153..SALEX;GS151,LS151..SPDLX199512-199609

main88510-3F280iJZS153..SALEX;GS151,LS151..SPDLX199512-199609

main88510-3F290iJZS155..ROY,ROYG,ROYT199508-199609

main88510-3F300iJZS153,155..ROY,ROYEX,ROYG,ROYT; JZS153..SALEX199609-199610

main88510-3F330iGS151,LS151..SPDLX199610-199707

main88510-3F340iJZS153..SALEX;GS151,LS151..SPDLX199512-199610

main88510-3F520iJZS155,UZS15#..A,C,E,F199707-199909

main88510-3F530iJZS155,UZS15#..A,C,E,F199707-199909

main88510-3F540iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199707

main88510-3F550iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199707

main88510-3F560iGS151,LS151199707

main88510-3F570iGS151,LS151199707

main88510-3F580iGS151,LS151..SPDLX199707

main88510-3F590iGS151,LS151..SPDLX199707

88515VALVE, COOLER EXPANSION

main88515-30610iGS151,LS151199707

main88515-30620iJZS153,155..A,E,ROY,ROYEX,ROYG,ROYT; JZS153..SALEX199609-199610

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30650iJZS155,UZS151,157..A,C,E,F199508-199909

main88539-30720iUZS155199511-199909

main88539-30730iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main88539-30760iJZS153,157199512

88625THERMISTOR, COOLER, NO.1

main88625-3A090iGS151,JZS15#,LS151,UZS15#199508-199707

main88625-3A110iGS151,JZS15#,LS151,UZS15#199707-199803

88630RELAY ASSY, COOLER

main90987-04002iGS151,JZS15#,LS151,UZS15#199508

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-30850iJZS155199508-199610

main88650-30851iJZS155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199610-199707

main88650-3A140iJZS151,153,LS151,UZS15#..C,F,ROY,ROYT199508-199610

main88650-3A160iJZS151,153..ROY,ROYT199610-199707

main88650-3A220iGS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199707

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A090iGS151,JZS151,153,LS151,UZS15#199508-199609

main88710-3A100iJZS153,155..A,E,ROY,ROYEX,ROYG,ROYT; JZS153..SALEX199609-199610

88891SCOVER, COOLER, NO.1

main88891-30670iJZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155199508

88899KPLATE, COVER

main88899-30790iJZS155,UZS15#..A,C,E,F199508

8851922030HOLDER, REMOTE BULB

main88519-22030

885693A470CLAMP (FOR COOLER RELAY)

main88569-3A470

885693A620CLAMP (FOR COOLER RELAY)

main88569-3A620

8857822180PAKING, COOLER AIR DUCT

main88578-22180

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

9009900149

main90099-00149

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009944001

main90099-44001

9017906246

main90179-06246

904670502001

main90467-0502001

904670502022

main90467-0502022

9046705111

main90467-05111

9048036015

main90480-36015

9048074002

main90480-74002

9095901505

main90959-01505

9338516012

main93385-16012

9351005012

main93510-05012

32 parts on this diagram · 4 diagrams in section
