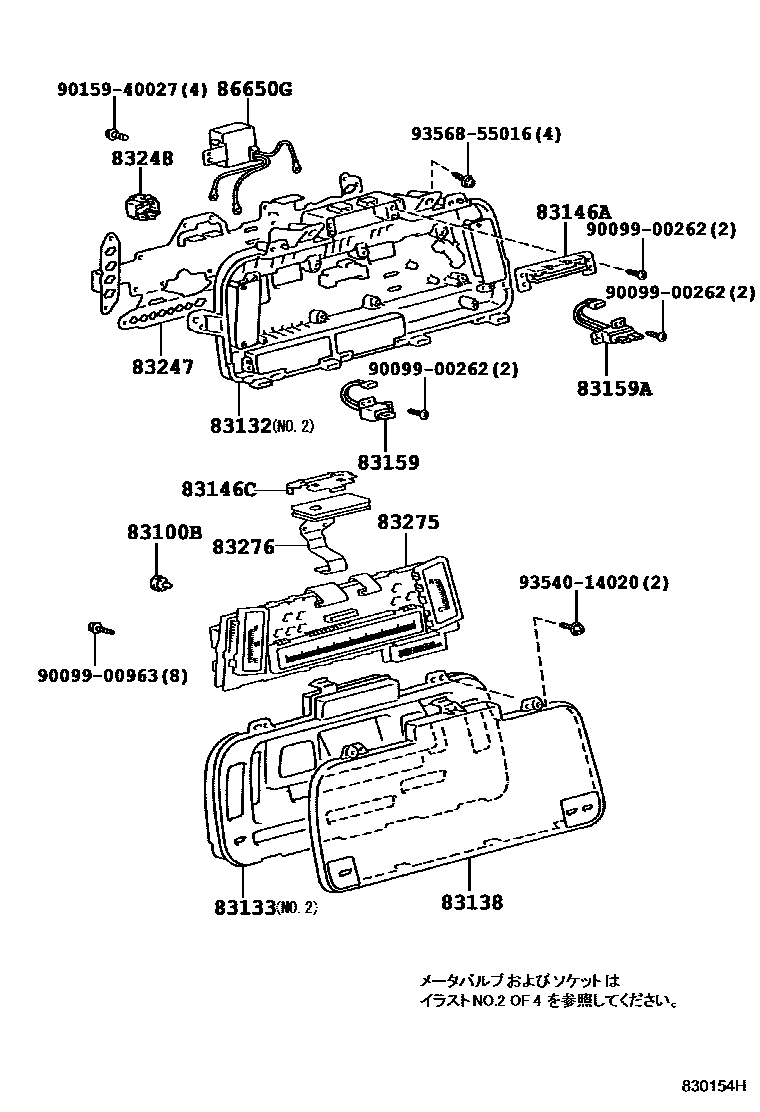

83100BBULB, COMBINATION METER, NO.1

main83109-24020iGS151,JZS151,153,155,LS151,UZS15#199508-200108

main83109-30060iGS151,JZS151,153,155,LS151,UZS15#199508-200108

main83109-30070iGS151,JZS151,153,155,LS151,UZS15#199508-200108

main83119-24070iGS151,JZS151,153,155,LS151,UZS15#199508-200108

main83119-32010iGS151,JZS15#,LS151,UZS15#199508-200108

main83120-24010iGS151..SPDLX..HTWC199707-199909

main84999-60490iJZS155..SED..ROYG;JZS15#,LS151..ROY,ROYT199707-200108

main84999-60490iGS151,JZS151,153..ROYEX199904-199909

main84999-60490iGS151..ROYEX199810

main90981-11018iGS151,JZS15#,LS151,UZS15#199508-200108

83132CASE, COMBINATION METER

main83161-30020iJZS155,UZS15#..A,C,E,F199707-199909

main83161-30020iJZS155,UZS15#..A,C,E,F199508-199707

main83161-30030iJZS155,UZS15#..A,C,E,F199707-199909

main83811-30200iGS151..5F199512-199707

main83841-30010iJZS155..SED..ROYG;GS151,JZS15#..4FC..(ROY,ROYEX,ROYT,SALEX)199508-199707

main83841-30020iJZS155..ROYT199508-199707

NO.2

main83841-30080iLS151199508-199707

main83841-30190iGS151..4FC..SPDLX199512-199707

main83841-30200iGS151..5F199512-199707

main83841-30210iUZS155199511-199609

main83841-30220iUZS151,157199508-199609

sub83841-30320

main83841-30230iJZS155..A,E199508-199707

main83841-30240iJZS155..HT..ROYG199508-199707

main83841-30240iJZS155..HT..ROY199508-199707

NO.2

main83841-30310iUZS155199609-199707

main83841-30320iUZS151,157199609-199707

main83841-30500iJZS155..SED..ROYG;JZS15#,LS151..ROY,ROYT199707

main83841-30500iGS151..ROYEX199904-199909

main83841-30500iGS151..ROYEX199810

main83841-30550iGS151..ROY,ROYEX,SALEX;JZS151,153..ROYEX,SALEX199707

main83841-30570iLS151..ROYEX,SPDLX199707-199909

main83841-30660iGS151..LPGTE..NOB199707-200102

main83841-30670iGS151..5F199707-199909

main83841-30730iGS151..4FC..SPDLX..HTWC199707-199909

main83841-30740iGS151..5F199707-199909

83133PLATE, COMBINATION METER, NO.1

main83163-30020iJZS155,UZS15#..A,C,E,F199508-199707

main83163-30020iJZS155,UZS15#..A,C,E,F199707-199909

main83811-30010iLS151;JZS155..SED..ROYG;GS151,JZS15#..ROY,ROYEX,ROYT,SALEX199508-199707

main83811-30190iGS151..4FC..SPDLX199512

main83811-30200iGS151..5F199707-199909

main83811-30210iUZS155199511-199707

main83811-30220iJZS155..HT..ROYG199508-199707

NO.2

main83811-30220iJZS155..HT..ROYG199508-199707

main83811-30220iJZS155,UZS151,157..A,C,E,F199508-199707

main83811-30500iJZS155..SED..ROYG;JZS15#,LS151..ROY,ROYT199707

main83811-30500iGS151..ROYEX199810

main83811-30500iGS151,JZS151,153..ROYEX199904-199909

83138GLASS, SPEEDOMETER

main83852-30010iJZS155..SED..ROYG;GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX199508-199707

main83852-30210iJZS155,UZS15#..HT..(A,C,E,F,ROYG)199508-199909

main83852-30500iGS151..ROYEX199810

main83852-30500iGS151,JZS151,153..ROYEX199904-199909

main83852-30500iJZS155..SED..ROYG;JZS15#,LS151..ROY,ROYT199707

83146ACOVER, SPEEDMETER

main83845-30210iJZS151,153..ROYEX199904-199909

main83845-30210iJZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG)199508

83146CCOVER,COMBINATION METER NO.2

main83846-30210iJZS151,153..ROYEX199904-199909

main83846-30210iJZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG)199508

83159SWITCH, METER, NO.1

main83871-30210iJZS151,153..ROYEX199904-199909

main83871-30210iJZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG)199508

83159ASWITCH, METER, NO.2

main83872-30210iJZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG)199508

main83872-30210iJZS151,153..ROYEX199904-199909

83247PLATE, METER CIRCUIT

main83861-30010iJZS155..SED..ROYG;GS151,JZS15#..ROY,ROYEX,ROYT,SALEX199508-199707

main83861-30080iLS151199508-199707

main83861-30190iGS151..SPDLX199512-199707

main83861-30210iJZS155..HT..ROY199508-199707

main83861-30410iUZS155199707-199909

main83861-30430iUZS151199707-199909

main83861-30450iUZS157199707-199909

main83861-30470iJZS155..HT..4FC199707-199909

main83861-30500iGS151..ROYEX199810

main83861-30500iJZS155,157..ROY;JZS155..SED..ROYG199707-199904

main83861-30500iGS151..ROYEX199904-199909

main83861-30501iJZS155,157..ROY;JZS155..SED..ROYG199904

main83861-30510iJZS155..ROYT199707-199909

main83861-30520iJZS151,153..ROY199707-199904

sub83861-30540

main83861-30520iJZS151,153..ROYEX199904-199909

sub83861-30540

main83861-30521iJZS151,153..ROY199904

main83861-30530iJZS151..ROYT199707-199909

sub83861-30510

main83861-30540iLS151..ROY199707-199909

main83861-30550iJZS151,153..ROYEX,SALEX199707

main83861-30560iGS151..ROY,ROYEX,SALEX199707

main83861-30570iLS151..ROYEX,SPDLX199707-199909

main83861-30660iGS151..4FC..SPDLX199707

main83861-30670iGS151..5F199707-199909

83248CHIME, SPEED WARNING

main83248-20010iJZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG)199508

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-30210iUZS15#199508-199707

main83275-30230iJZS155..A,E199508-199707

main83275-30240iJZS155..HT..(ROY,ROYG)199508-199707

main83275-30250iUZS15#199707-199909

main83275-30260iUZS15#199707-199909

main83275-30290iJZS155..HT..(ROY,ROYG)199707-199909

main83275-30410iJZS155..A,E199707-199909

main83275-30420iJZS155..A,E199707-199909

main83275-30500iGS151,JZS151,153..ROYEX199904-199909

main83275-30500iJZS155..SED..ROYG;JZS15#,LS151..ROY,ROYT199707-200108

main83275-30500iGS151..ROYEX199810

83276PLATE,COMPUTER METER CIRCUIT NO.2

main83276-30210iJZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG)199508

main83276-30260iJZS155,UZS15#..A,C,E,F199707

86650GBUZZER ASSY

main86650-12030iJZS155..SED..ROYG;GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX199508

main86650-12040iJZS155,UZS15#..HT..(A,C,E,F,ROYG)199508-199909

9009900262

main90099-00262

9009900963

main90099-00963

9015940027

main90159-40027

9354014020

main93540-14020

9356855016

main93568-55016
